Assembly
OPTIMUM
MASCHINEN - GERMANY
30 / 11 / 2007Page 28 Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB
£ Measure the distance between the
outer edge of the pulley and the
edge of the housing. Have the
measured distance set on the calli-
per gauge.

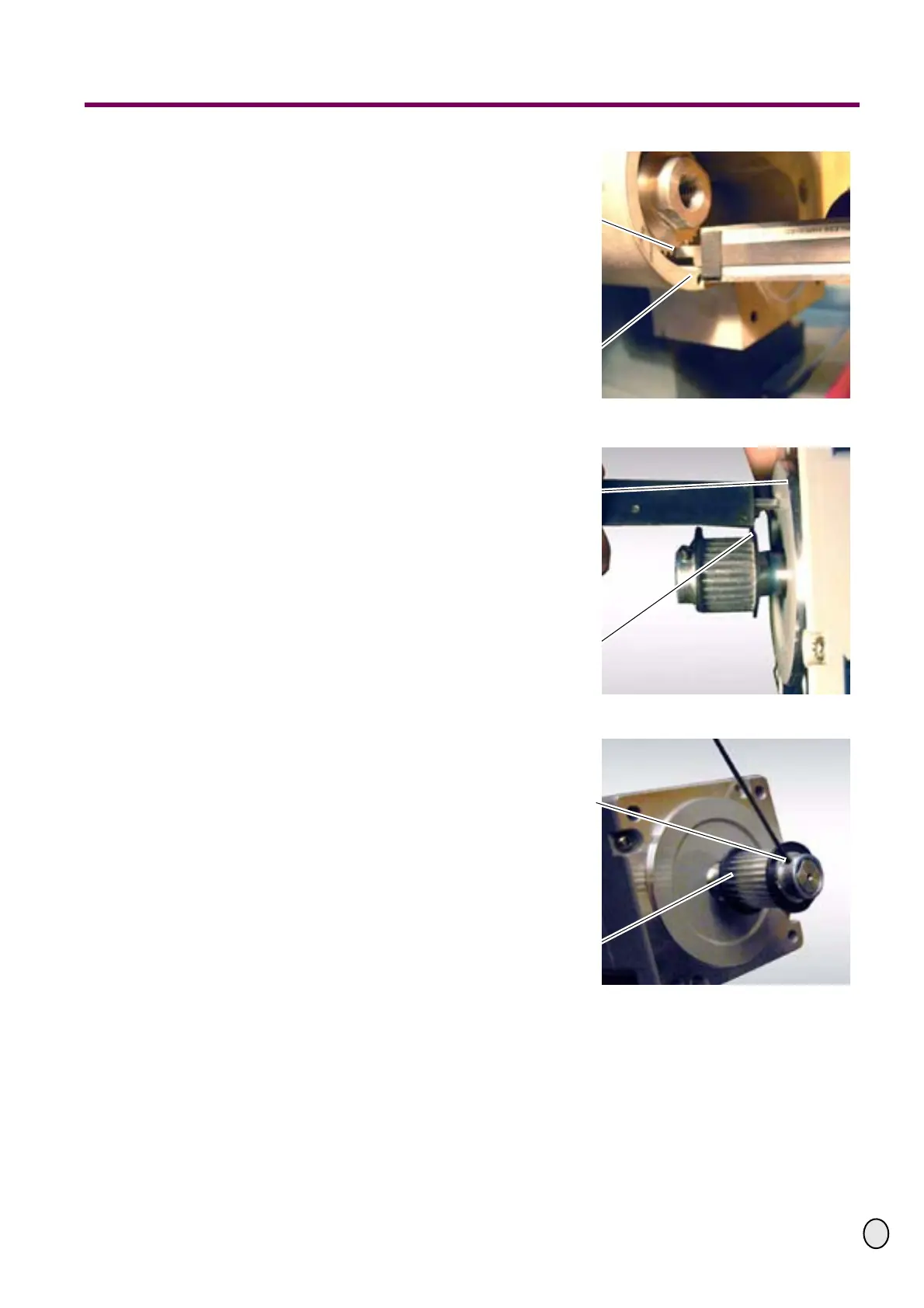

Illustr.: 4-57: Measure distance
£ Plug the pulley (part 2) with retention
agent on the motor (part 4).
£ Adjust the determined distance on
the motor between the two surfaces.
Illustr.: 4-58: Pulley on the motor
£ Tighten the pulley (part 2) with the
hexagon socket screw (part 16).
Illustr.: 4-59: Tighten pulley
Outside edge of the
pulley
Outside edge of the
housing
Surface of the step
motor (part 4)
Outside edge pulley
Fastening screw
Pulley
