Assembly
30 / 11 / 2007 Page 29Assembly Add-on kit D240/D280 ; Version 1.3.3
© 2007
GB

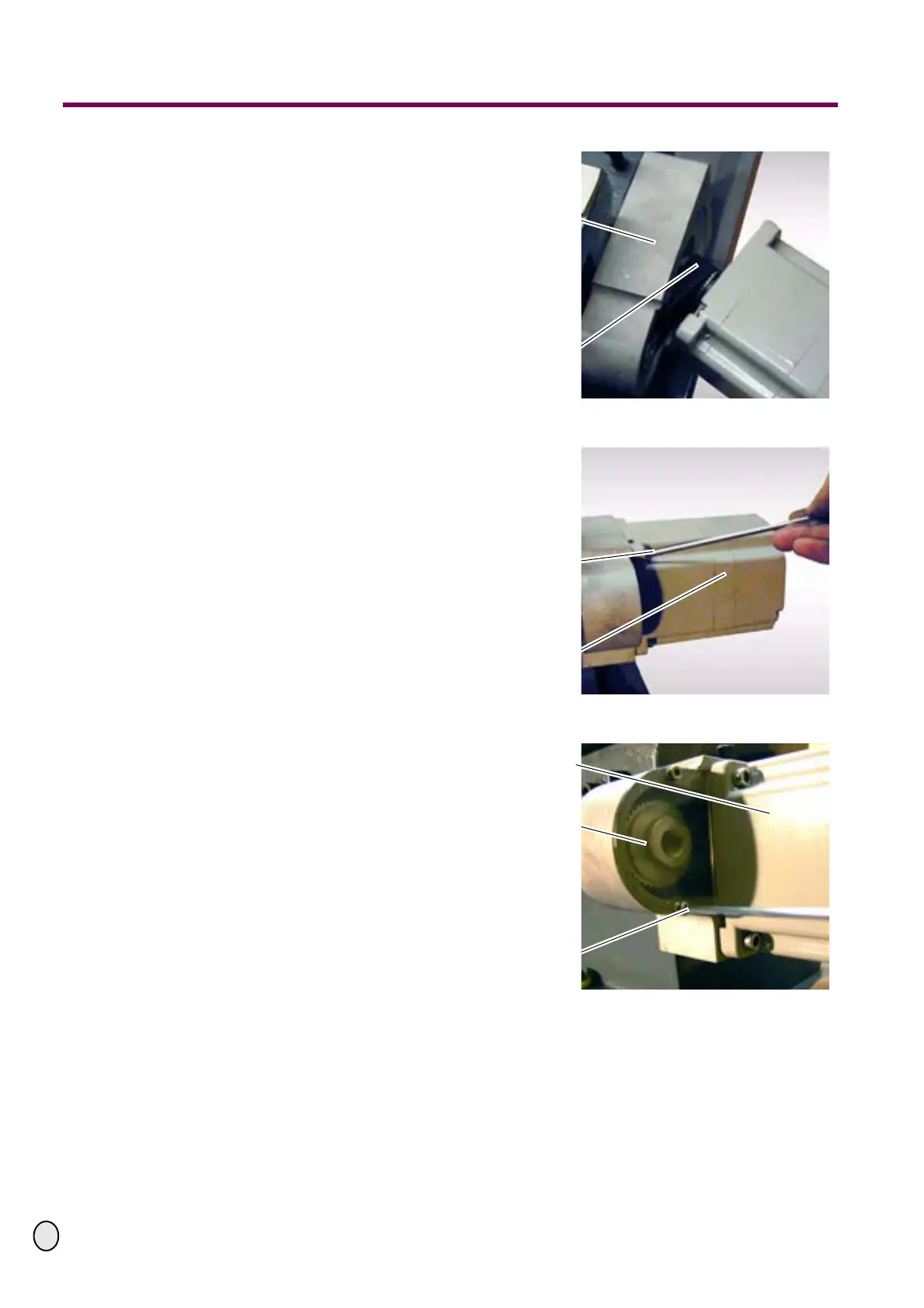

£ Put the toothed belt (part 6) on the
motor and mount it the housing as
displayed.
Illustr.: 4-60: Put on belt
£ Screw the step motor with the fas-
tening screws (part 20) (M5 x 20) on
the housing.
Illustr.: 4-61: Tighten step motor
£ Tighten the cover plate (part 5) with
the 2 fastening screws (part 17) (M3
x 6)
£ When tightening the screws make
sure that the PVC cover is not too
firmly fastened. The PVC cover
might get damaged.
Illustr.: 4-62: Mount cover plate
Housing Z-axis
Toothed belt (part 6)
Fastening screw
Step motor
Step motor
Cover plate
Fastening screw
