4.7 Tool data function
Function introduction: The displayed values are all relative to the selected data. The use of the
data allows to establish a certain relationship between the grating displacement and the dis-
played value. It is possible to set 7 data for this type of position display.
Example: To set the datum mark coordinates for cutter 2 (X=1.000, Y=2.000)

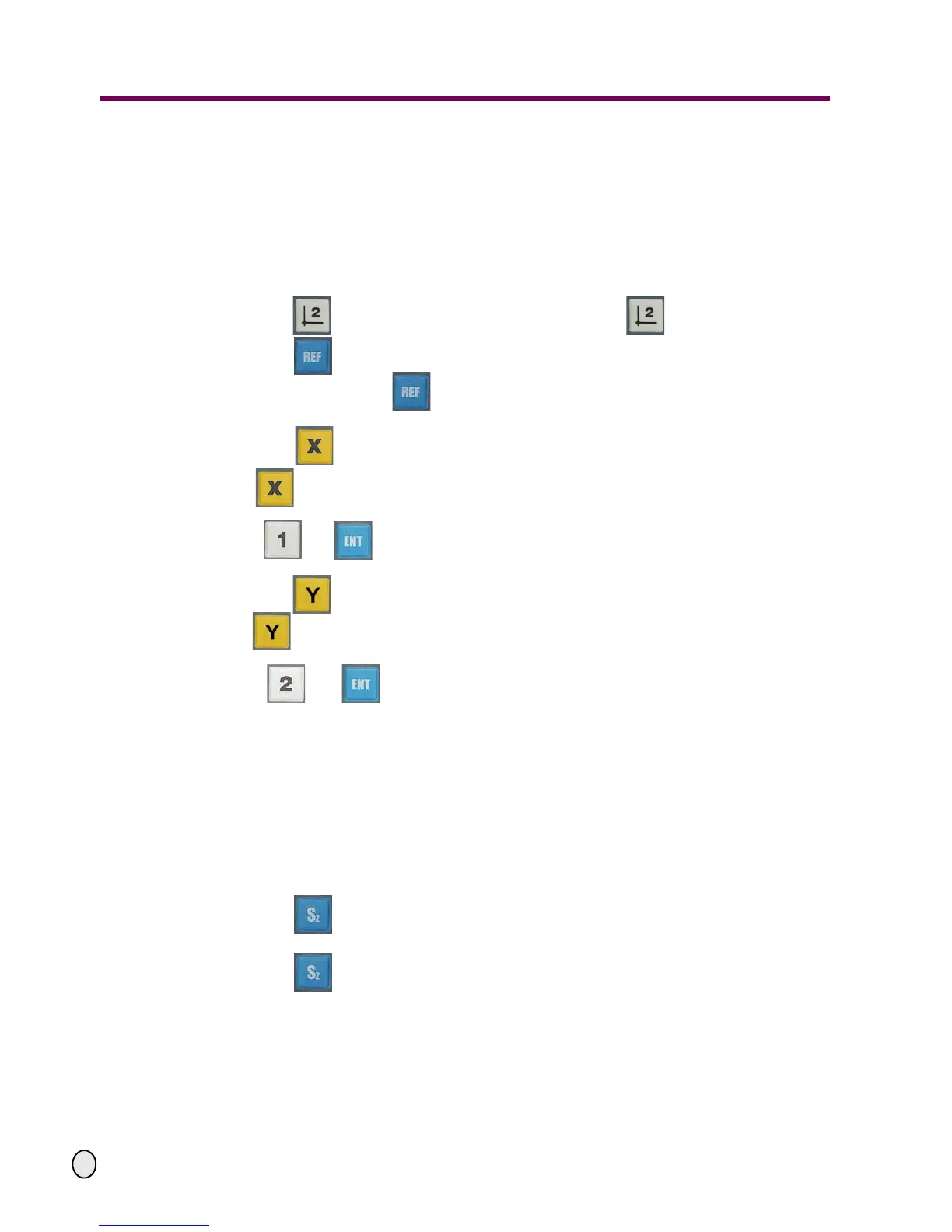

Operation procedures:
 Return to the standard display;
 Press the key, select cutter 2 (the indicator light on the key is illuminated);
 Press the key, recall the initial values of the two axes
(the indicator light on the key is illuminated);
 Press the key, select the X-coordinates axis (the indicator light beside
the key is illuminated);
 Input and ;
 Press the key, select the Y-coordinates axis (the indicator light beside
the key is illuminated);
 Input and ;
 Now, the X-axis will display 1.000 and the Y-axis will display 2.000 .
Note: The memory function for the setting of the datum mark only works when the reference
mark status is activated on the position display and when it has undergone a power break.
4.8 Display Z+Z0 value (3-axes)
Function introduction: The Z-axis displays the Z+Z0 value.
Operation procedures:
 Return to the standard display of the lathe function;
 Press the key, the Z0-axis will display "- - - - - - - - " , the Z-axis will display the sum for
Z+Z0;
 Press the key again, and the Z- and Z0-axes go to the standard display.
