2.2 The rear panel

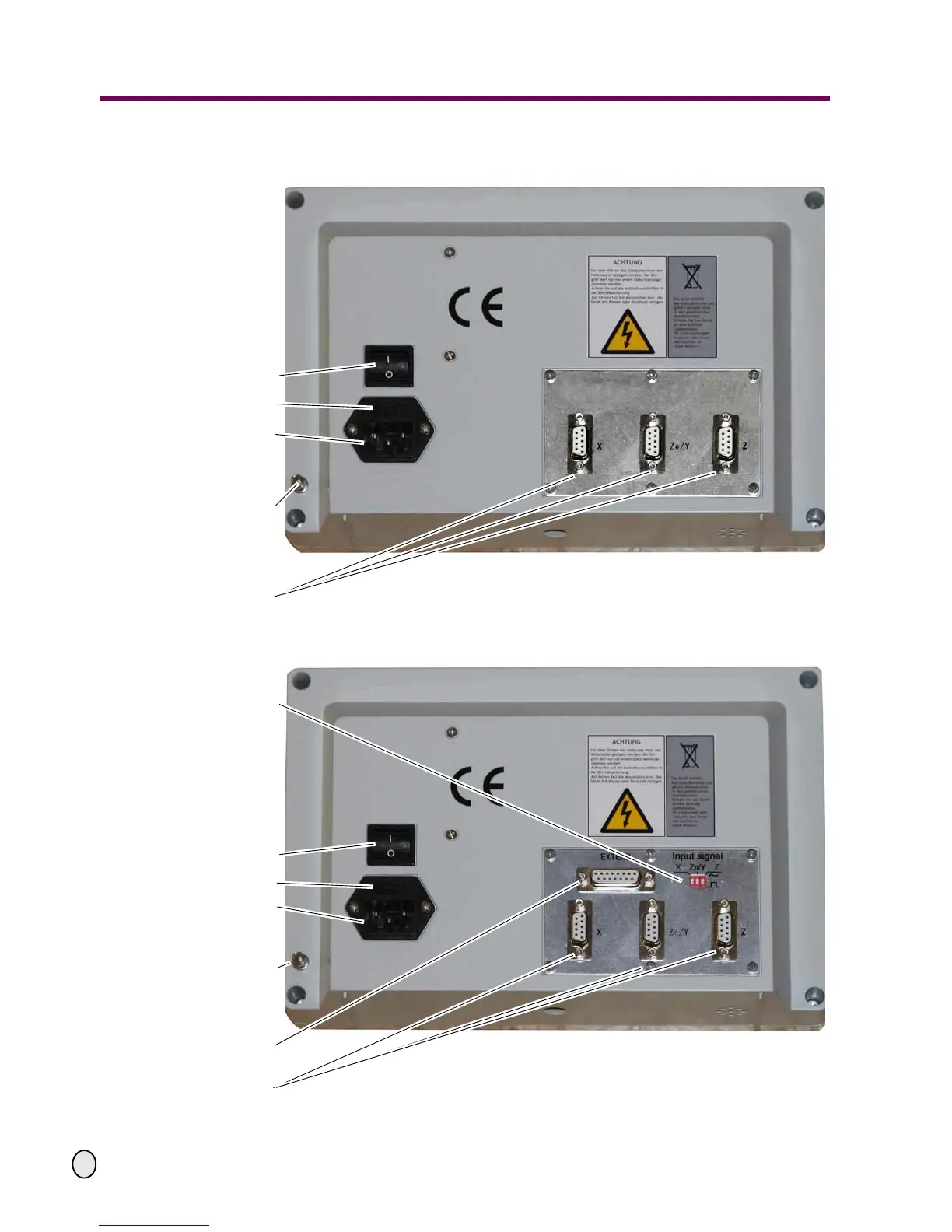

Abb.2-2: DPA 2000 rear side
Abb.2-3: DPA 2000S rear side
Power switch
Fuse
Power socket
Grounding screw
Interface for data transfer
Signal selection for grating input
Up: Sine 1Vpp signal
Down: TTL square wave signal
The setting is depending on the
type of the used measuring system.
Power switch
Fuse
Power socket
Grounding screw
Photo-elektrical input for schwitch
Transducer for signal input
Interface for data transfer
