Optimum OPTIdrill DP 26 - Page 18

Delivery, interdepartmental transport, assembly and commissioning
Version 1.0.2 - 2020-07-0718 Translation of original instructions
DP26
EN
DP26_GB.fm

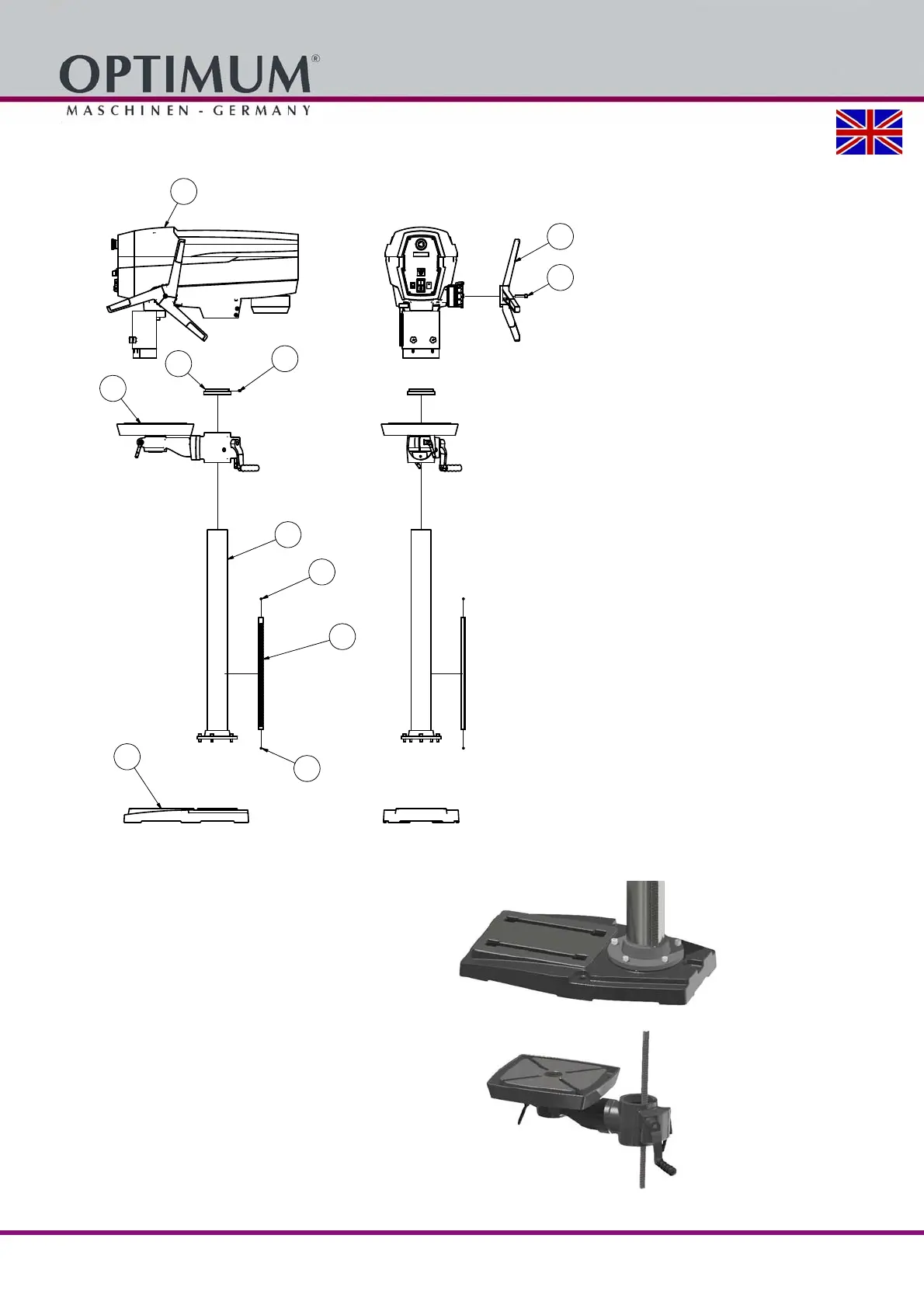

Place the machine foot on a flat floor and screw the
column to the machine foot.
Insert the rack into the drilling table support. Some
grease helps to fix the rack in the guide. Pay attention
to the helical gearing on the rack. The longer
untoothed end of the rack must point upward.
