EX556/ES556/EW556/ES555/EX555
Condential 2-7
Note: - Make sure cables plug into the correct
ports when assembling the unit.

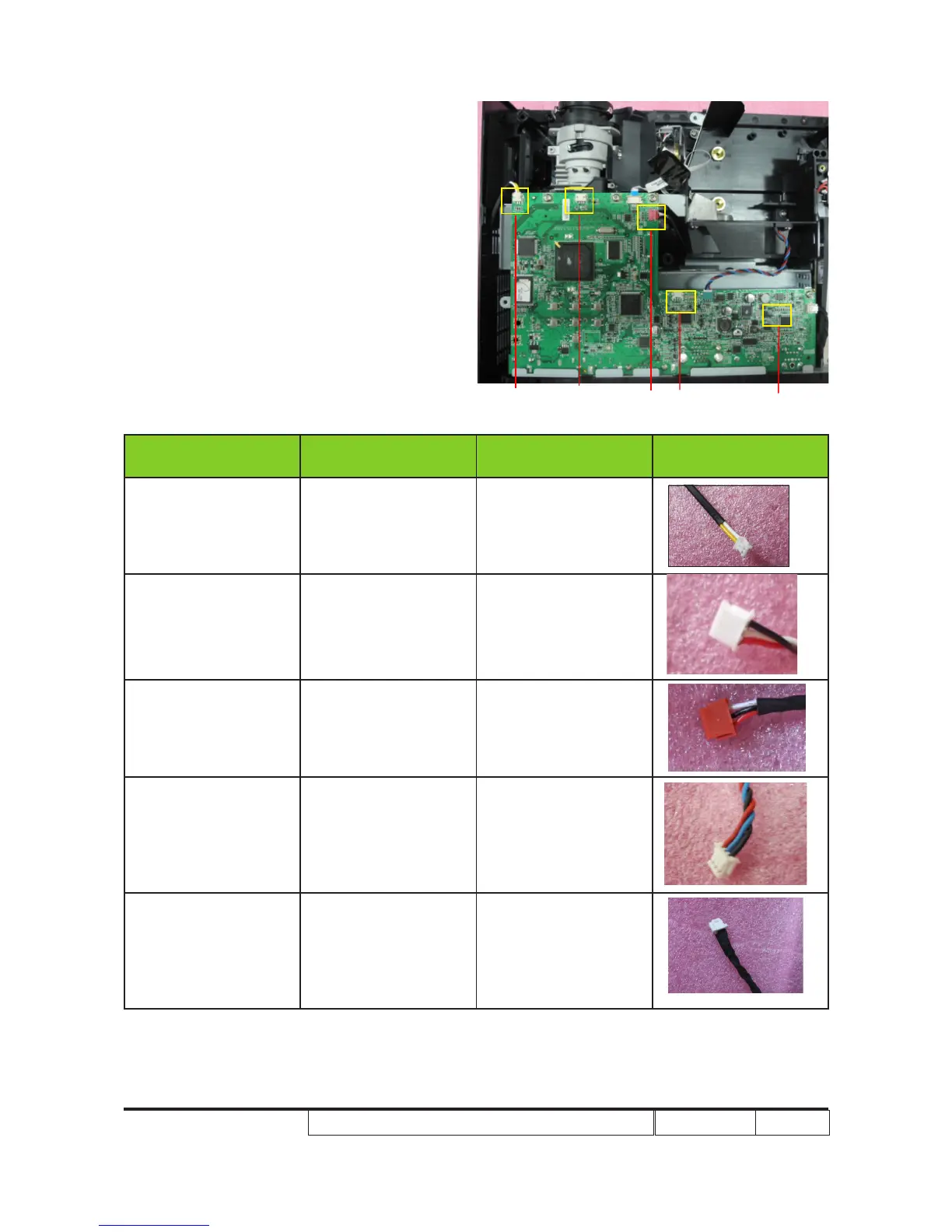

Please refer to the below table details of
each connector on Main Board.
A
B
C
D
Item
Male Connector
on Main Board
The key feature Figure
A Speaker
Compose of Yellow/
White Wire and Black
tube(2 pin)
B Front IR
Compose of Black/
Yellow/Red Wire and
Black tube(3 pin)
C Photo Sensor BD
Compose of Black/
White/Red Wire, Red
Connector and Black
tube(3 pin)
D System Fan
Compose of Black/
Blue/Red Wire, White
Connector (3 pin)
E Lamp driver
Black wire tube (5
pin)
E
