RS232 Commands and Protocol
Function List

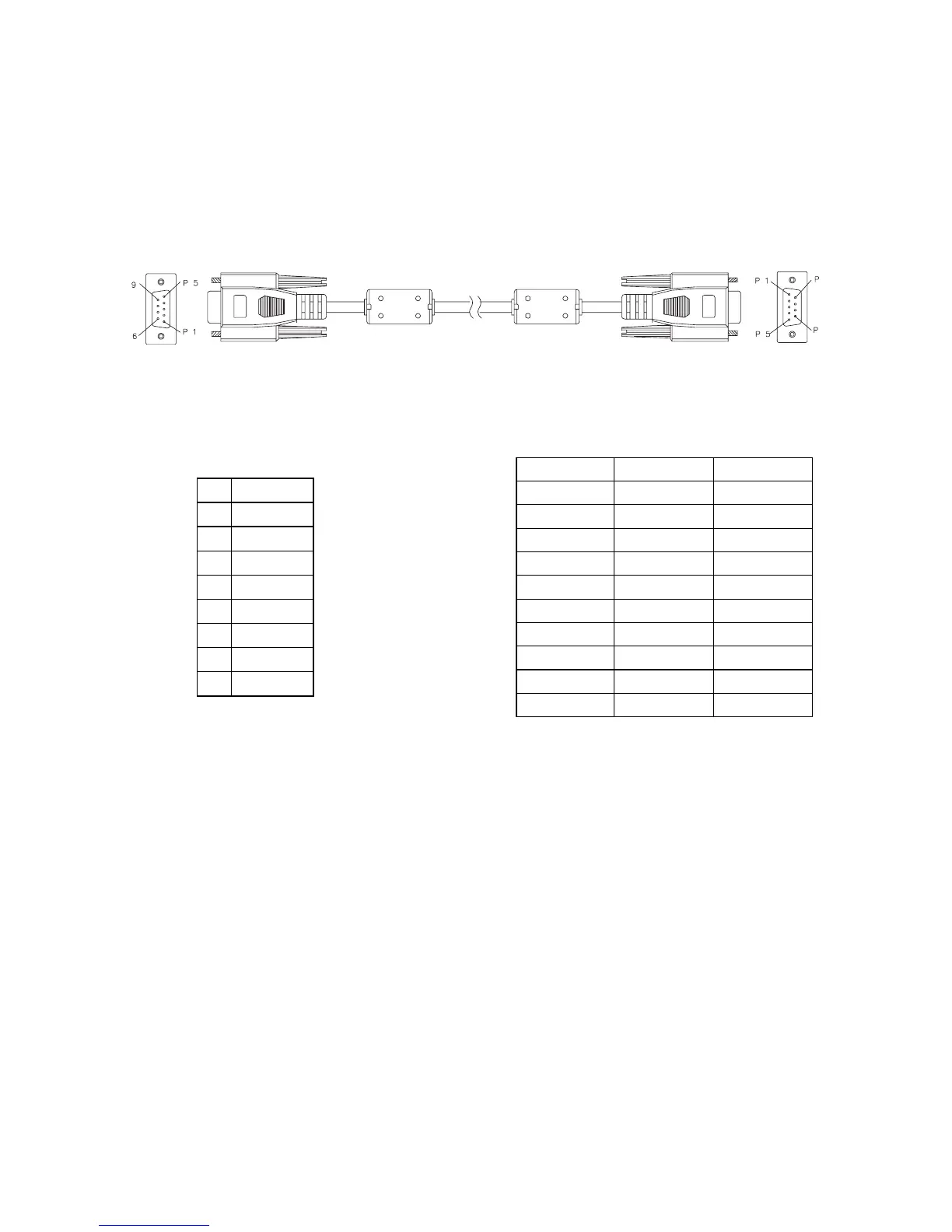

RS232 Pin Assignments
D-Sub 9 pin
(from the projector side)
11 CD
2RXD
3TXD
4DTR
5GND
6DSR
7RTS
8CTS
9RI
(from the cable side)
C1 COLOR C2
1Black1
2Brown3
3Red2
4 Orange 6
5Yellow5
6Green4
7Blue8
8 Purple 7
9White9
SHELL DW SHELL
