Optoma HD70 - Installation; Connecting the Projector

12
English
Installation

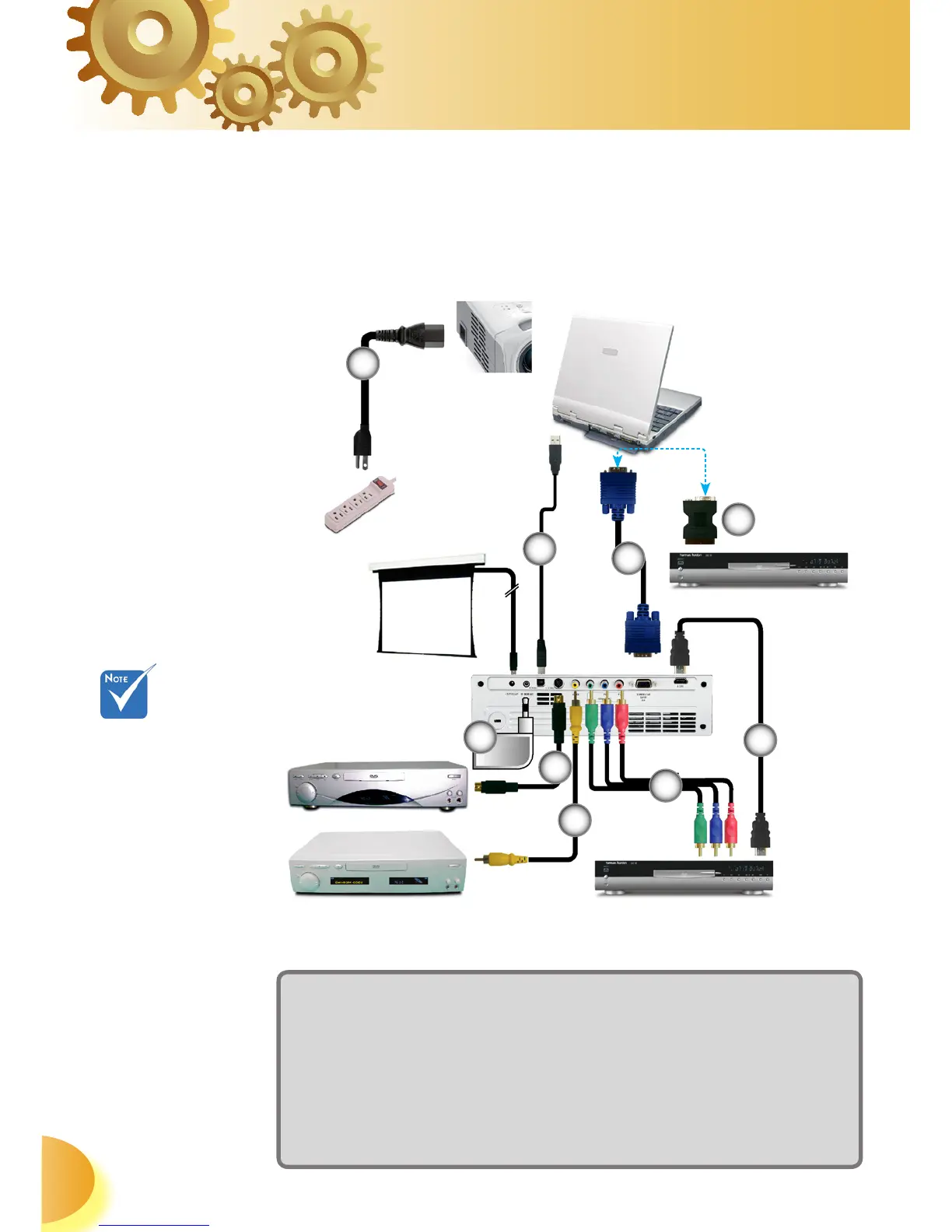

Connecting the Projector
Due to the
difference in
applications for
each country,
some regions
may have differ-
ent accessories.
S-Video Output
Video Output
DVD Player, Set-top Box,
HDTV receiver
RGB
1...................................................................................................Power Cord
2..................................................................USB Cable (Optional Accessory)
3.....................................................................................................VGA Cable
4...................................................................... SCART RGB/S-Video Adaptor
5...............................................................HDMI Cable (Optional Accessory)
6............................................................... RCA Component Cable for YPbPr
7............................................................................... Composite Video Cable
8............................................................................................... S-Video Cable
9.................................................................................................... IR Module
1
3
8
2
6
7
+12V Relay Output
4
9
5
