Optoma TX7156 - 2-6.I;O Ports Illustration

Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
8
2010/01/11

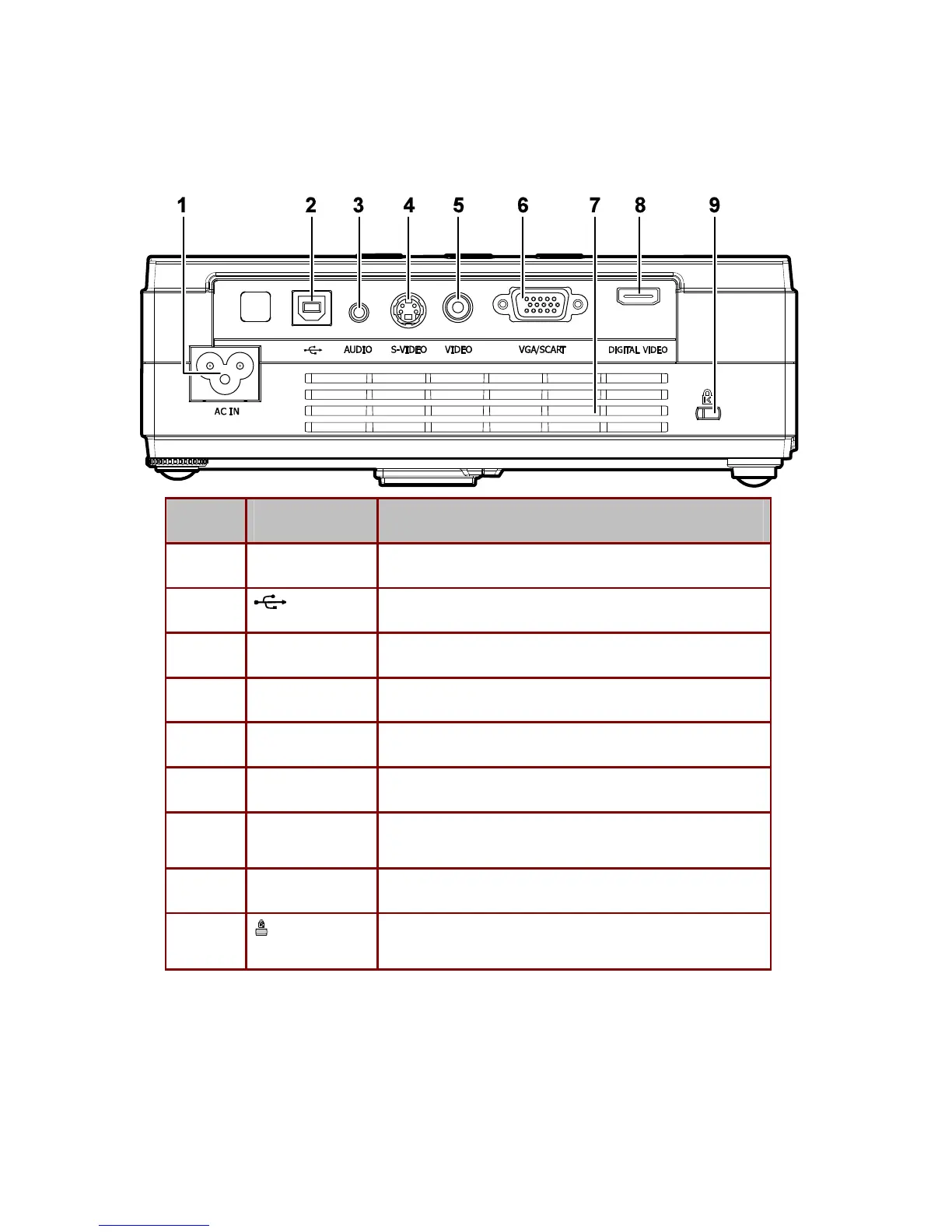

2-6. I/O Ports Illustration about Projector.
ITEM LABEL DESCRIPTION
1.
AC IN (Power) Connect the supplied power cord
2.
(USB)
Connect the USB cable from a computer
3.
AUDIO Connect the audio cable from an audio input device.
4.
S-VIDEO Connect the composite or S-video cable from a video device
5.
VIDEO Connect a composite video cable from a video device.
6.
VGA/SCART Connect a VGA cable from a computer
7.
Ventilation
opening
Do not obstruct to keep the projector cool.
8.
DIGITAL VIDEO Connect a DIGITAL VIDEO cable from any video source
9.
(Security Lock)
Secure to permanent object with a Kensington® Lock
system
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal
