Optoma TX7156 - 11 Diagonal Image Size

Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
91
2010/01/11
11. Diagonal Image Size
EP7155i Serial
EP1691i Serial
Tele Wide
Distance (m) 1.34 3.58 4.47 8.94 1.54 3.09 3.86 11.58
Diagonal Size (“) 30 80 100 200 40 80 100 300

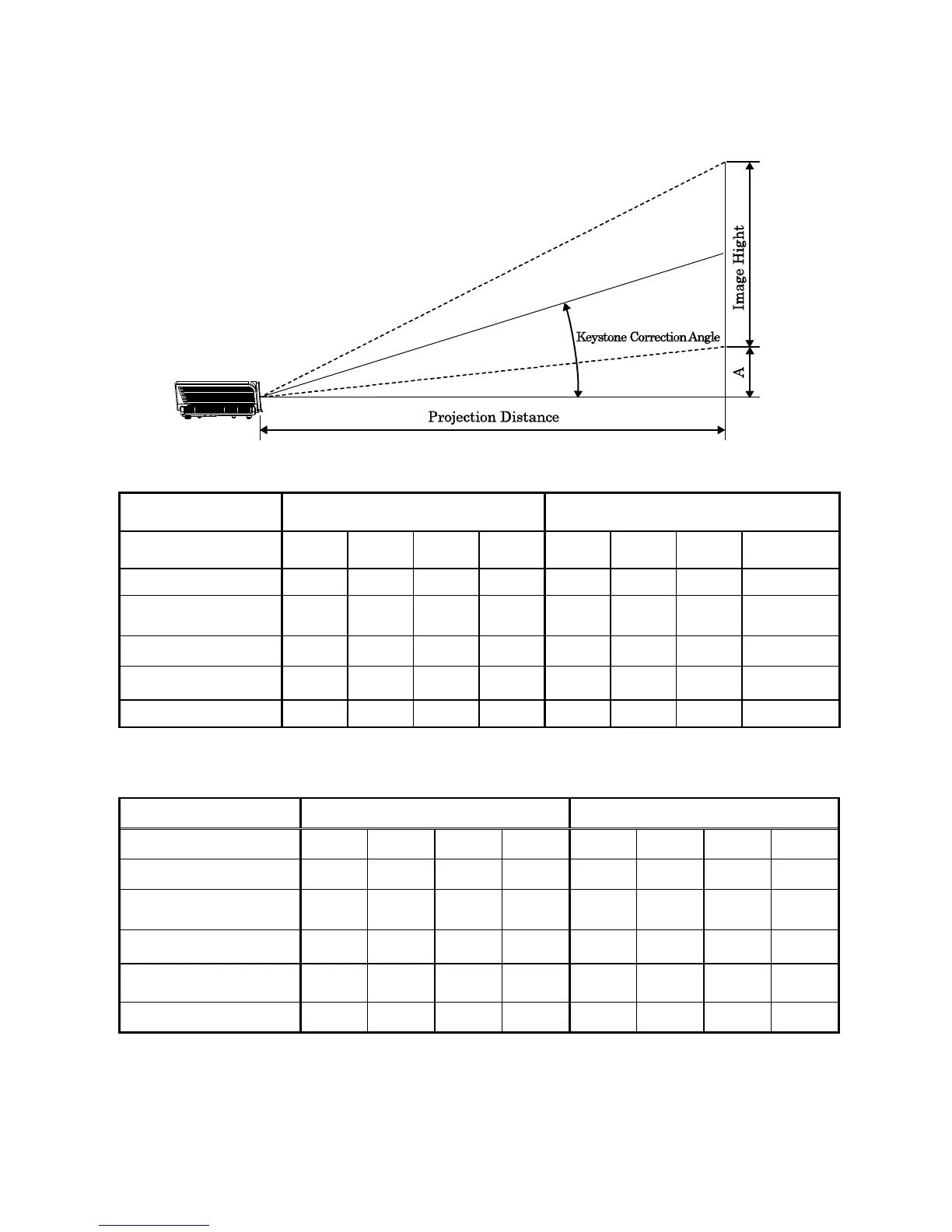

Keystone Correction
Angle (degree)
12.3 12.3 12.3 12.3 14.2 14.2 14.2 14.2
Image Height (mm) 457 1219 1524 1864 610 1219 1524 4572
Image Width (mm) 610 1626 2032 3762 813 1626 2032 6096
A (mm) (64) (171) (213) (427) (85) (171) (213) (640)
Tele Wide
Distance (m) 1.14 3.03 3.79 7.58 1.32 2.64 3.30 9.89
Diagonal Size (“) 30 80 100 200 40 80 100 300
Keystone Correction
Angle (degree)
12.3 12.3 12.3 12.3 14.1 14.1 14.1 14.1
Image Height (mm) 404 1077 1346 2692 539 1077 1346 4039
Image Width (mm) 646 1723 2154 4308 862 1723 2154 6462
A (mm) (46) (124) (155) (310) (62) (124) (155) (464)
