Removing the Main Board

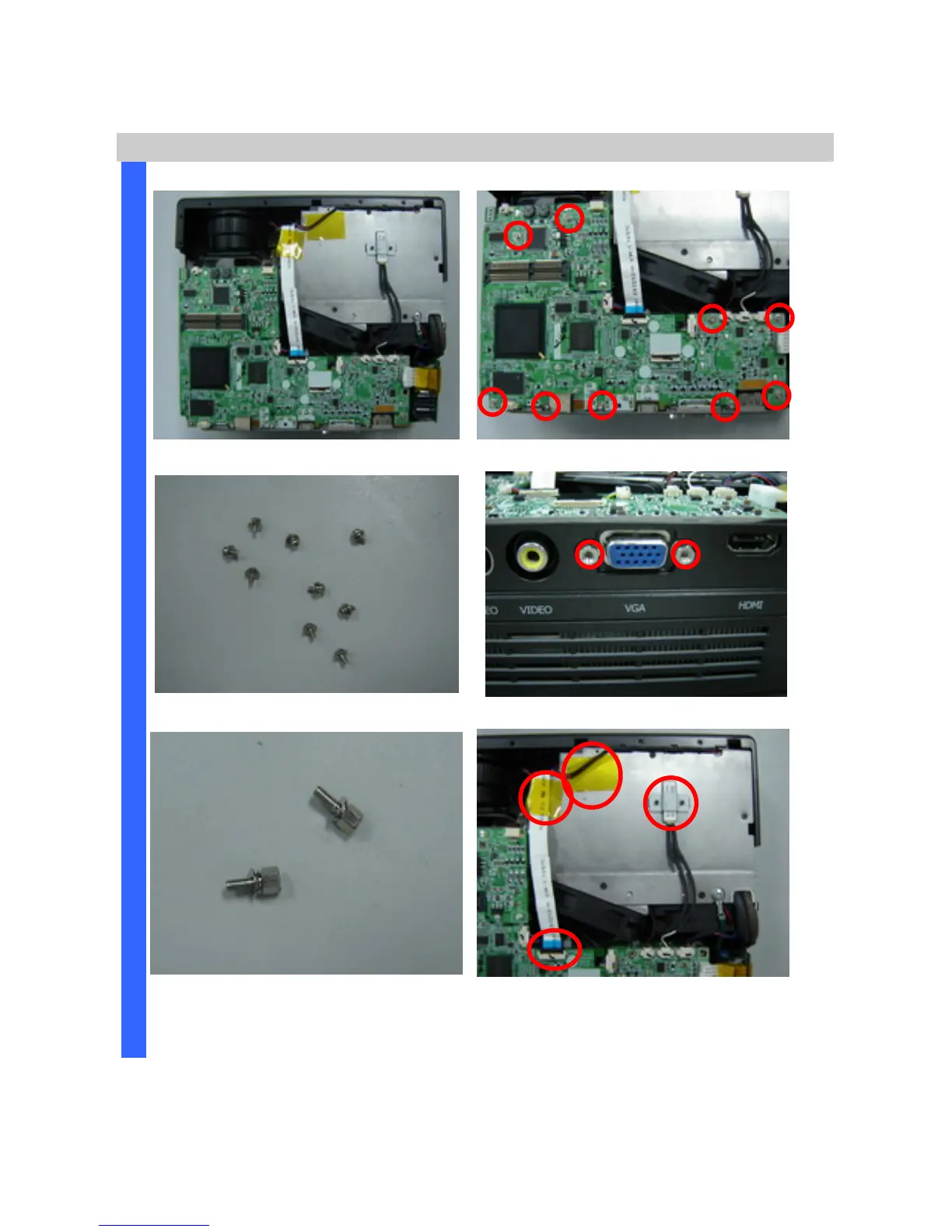

Set reviews. Remove the 9 piece screws.
Look the screws (S04). Remove the two hexagonal screws.
D
I
S
A
S
S
E
M
B
L
Y
Look the screws (S05). Careful this area and check this place
when you assemble this plate.
