Optoma TX7156 - 4 Disassembly and Assembly

Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
28
2010/01/11
4. DISASSEMBLY AND ASSEMBLY
Removing the Lamp Cover and Lamp Module
Look the full set projector. Look at the IO side.
Look at the keypad of top side. Look at the keypad of top side.
D
I
S
A
S
S
E
M
B
L
Y

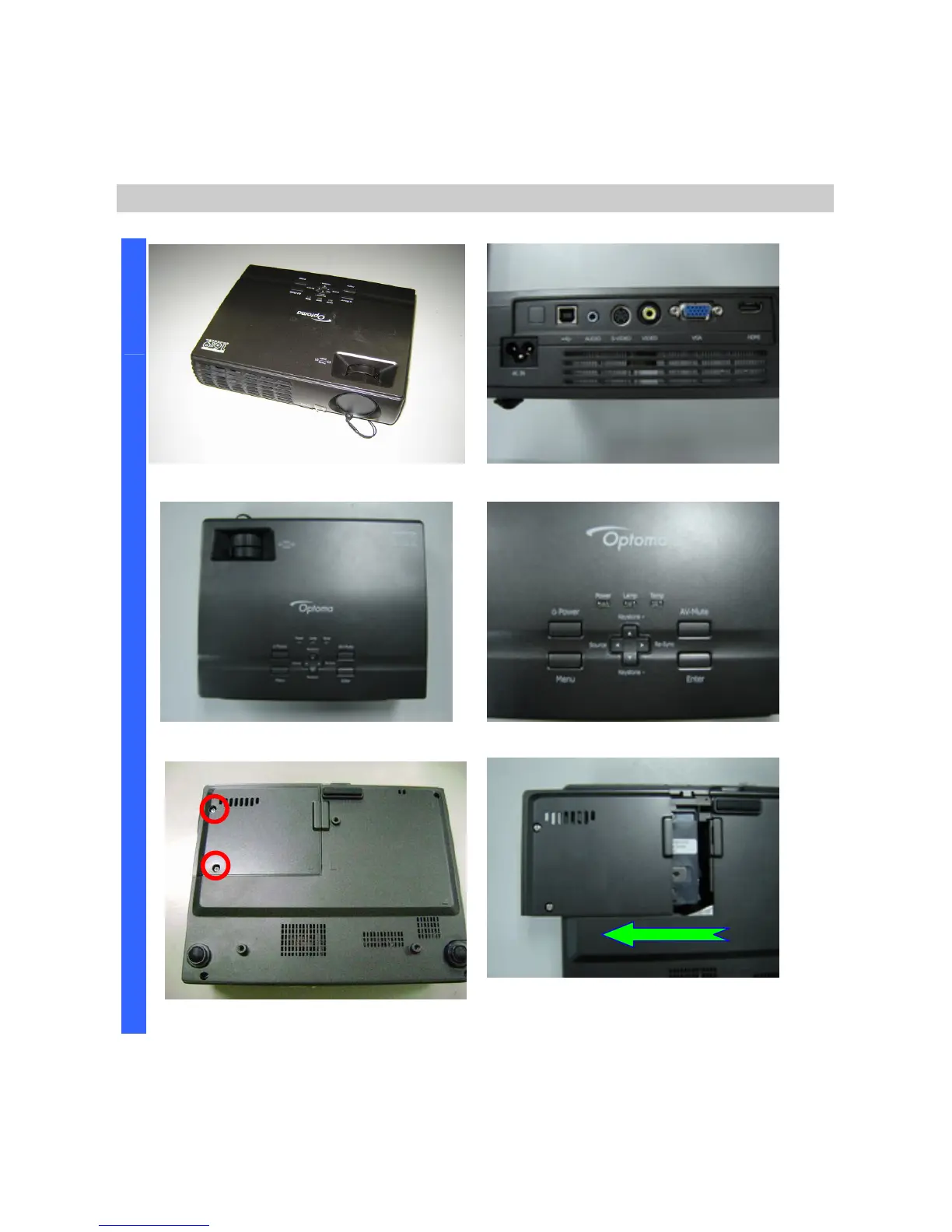

Loose these two screws. Remove and take out the lamp cover.
