Optoma TX7156 - Page 29

Delta Elec. Inc. EP7155i & EP1691i
Company Confidential Optoma_______________________ Delta____________
29
2010/01/11

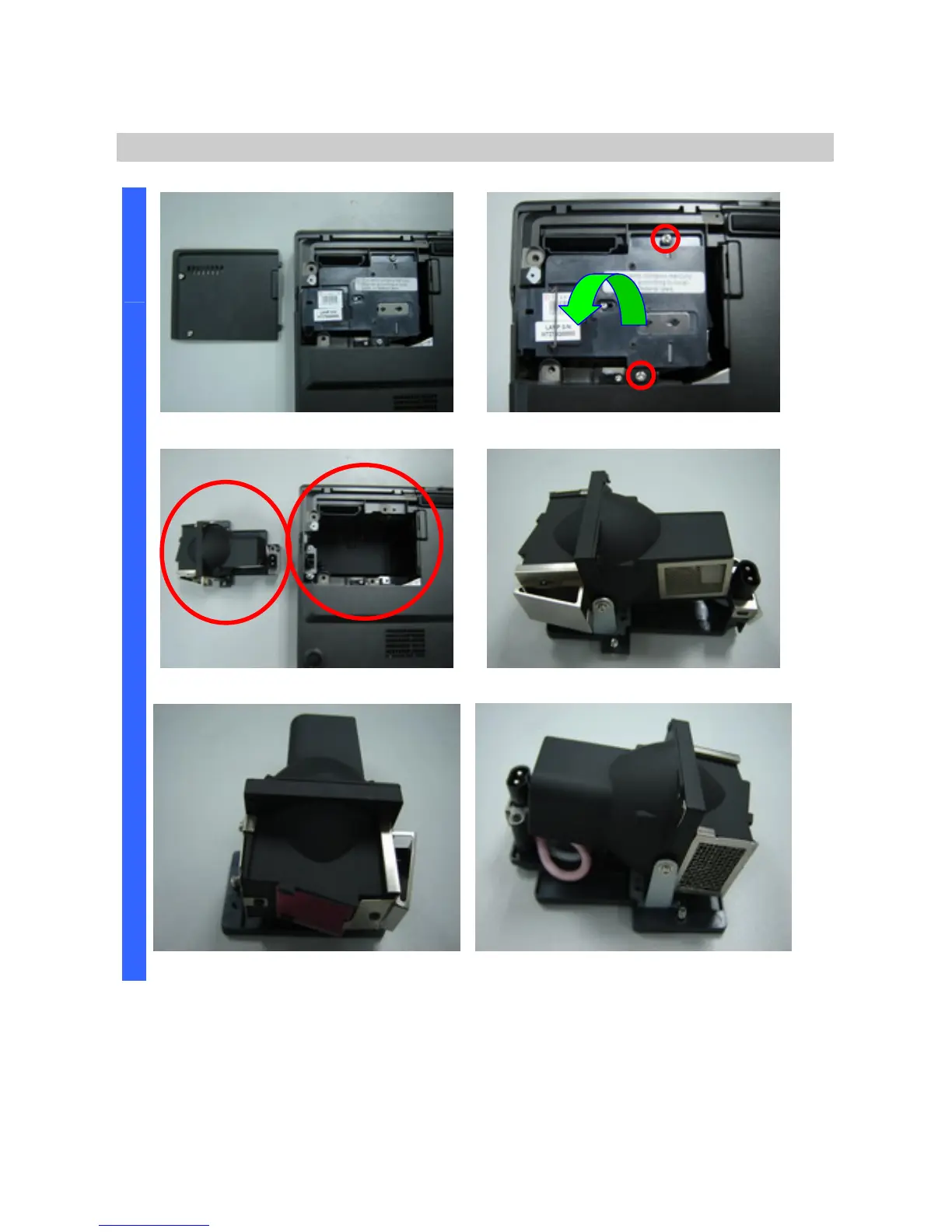

Removing the Lamp Cover and Lamp Module
Look at the top side. Loose these two screws and take out.
Remove the lamp modules (upward view).
Look the Lamp #1.
D
I
S
A
S
S
E
M
B
L
Y
Look the Lamp #2. Look the Lamp #3.
