Removing the Lamp Module and Top Cover

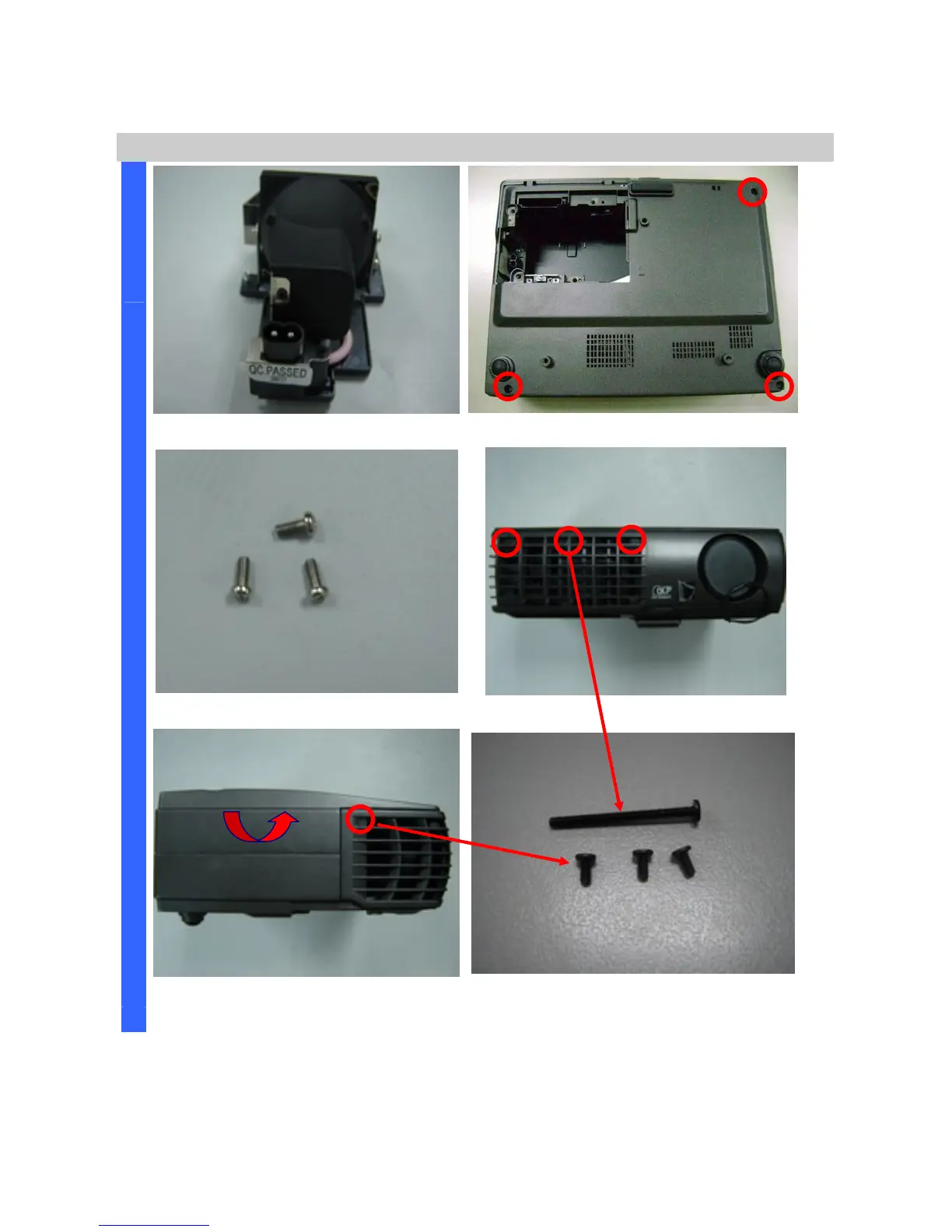

Look the Lamp #4. Remove the three screws.
Look the screws (S01). Remove the two screws.
D
I
S
A
S
S
E
M
B
L
Y
Remove the screw and top cover. Look the screws(S02).
