Installation
3 Installation
3.1 Mechanical Installation
The CS is equipped with a metric M12x1 thread and can be installed either directly via the sensor thread
or with the help of the both hex nuts (standard) to the mounting bracket available.

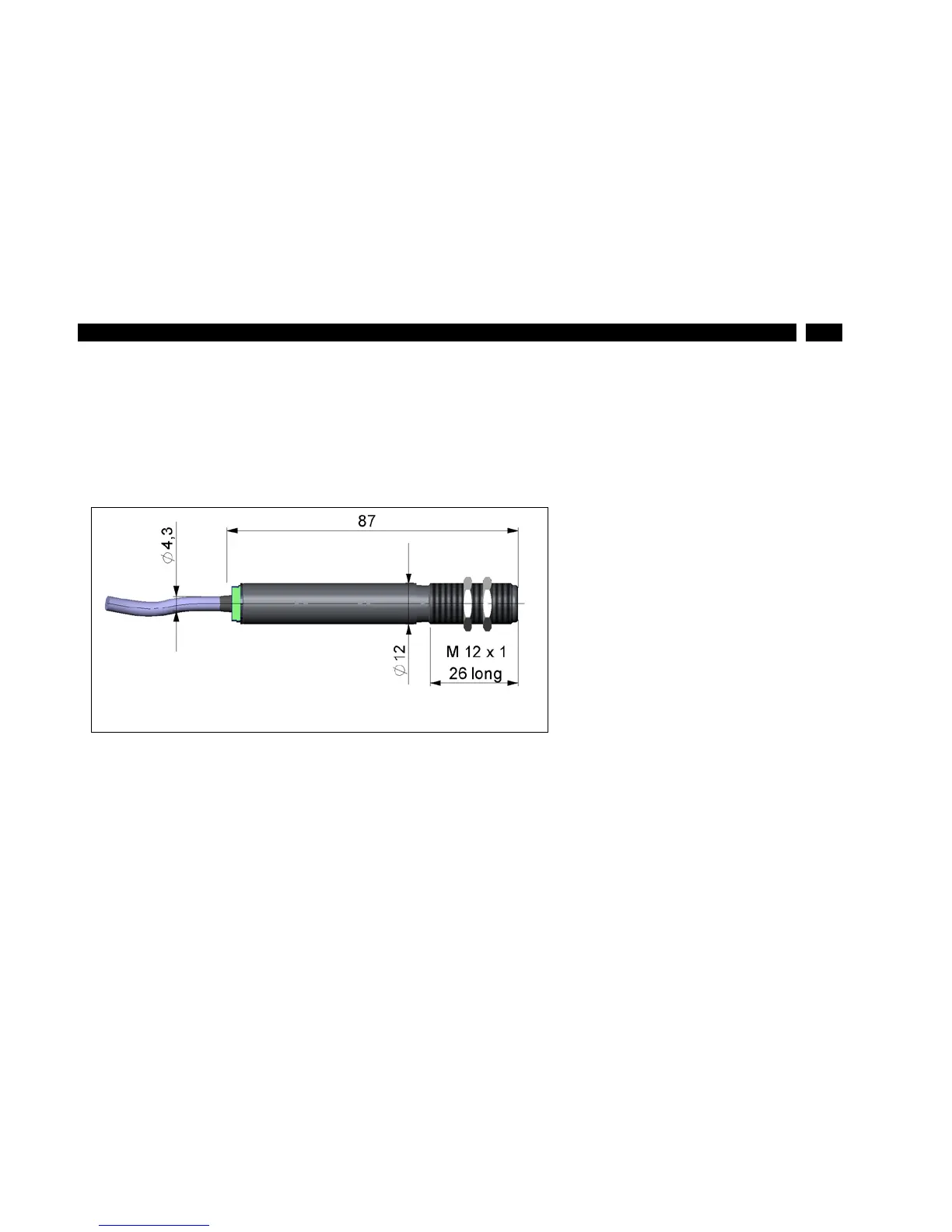

Figure 6: Dimensions CS
For an exact aiming of the sensor to an object the LED function ► Automatic aiming support can be
used.
