optris CS series User Manual

18
1)
The t/c wires are indicated with an additional cable marker to avoid wrong connections due to the identical cable colours of other
wires (white, green).
2.4 Measurement specifications
Temperature range
-40...1030 °C (scalable via Software)
Spectral range
8...14 µm
Optical resolution
15:1
CF-lens (optional)
0.8 mm@ 10 mm
Accuracy
1) 2)
±1.5 °C or ±1.5 % of reading (whichever is greater)
Repeatability
1)
±0.75 °C or ±0.75 % of reading (whichever is greater)

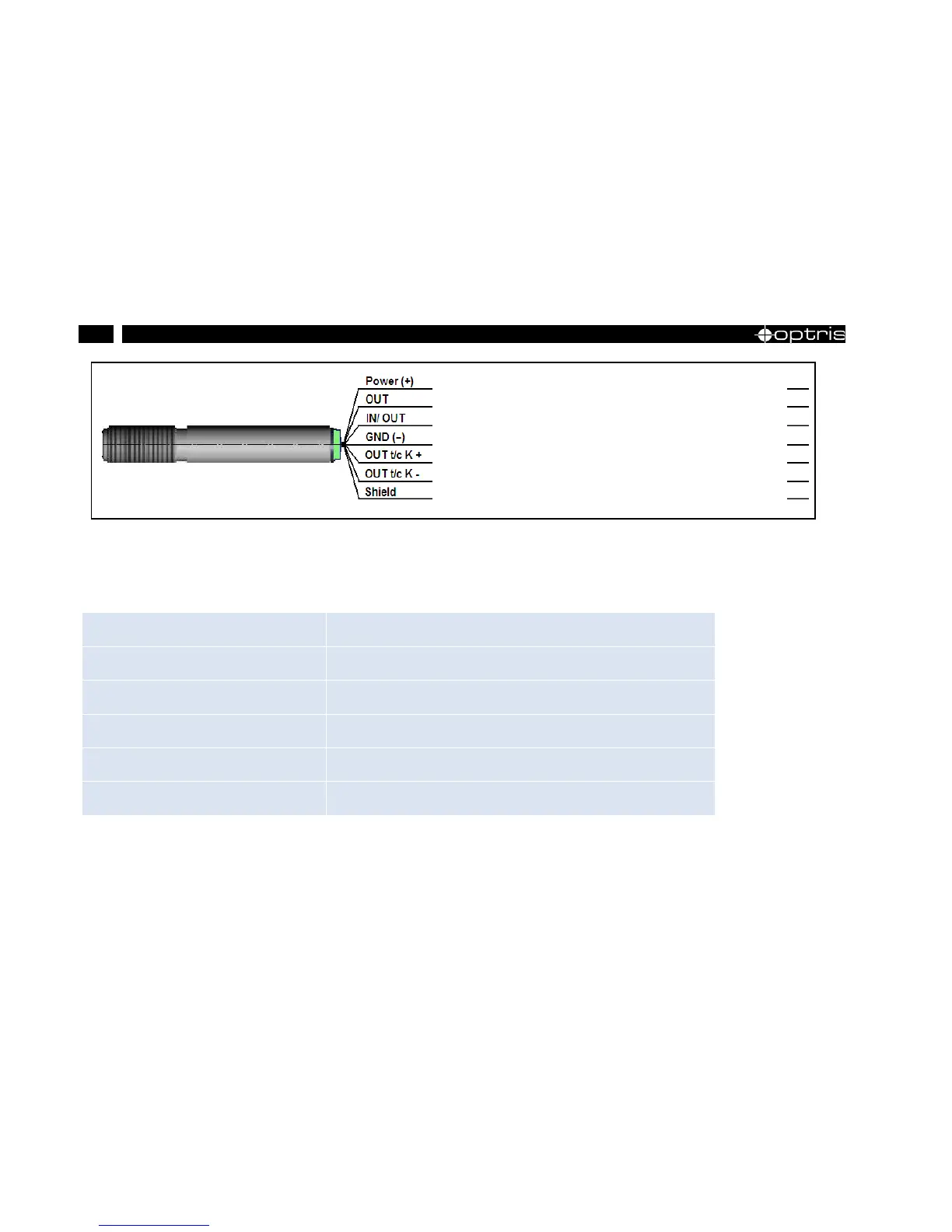

Power supply [white]
Analog output/ TxD (5 V)/ Alarm output [yellow]
Analog input/ RxD (5 V)/ Open collector output [green]
Ground (
⊥
) [brown]
Thermocouple output type K (+) [green]
1)
Thermocouple output type K (-) [white]
1)
Shield [black]
