Installation
You can choose between an mV output (0-5 or 0-10 V; scalable via software) and a thermocouple output
type K. Therefor the optional software is needed. The factory default setting is mV output. ► Factory
default settings
The thermocouple output supplies a voltage according to the t/c characteristic curve type K. If you want to
extend this output you have to use a suitable thermocouple extension cable (NiCr-Ni).
3.2.1 Digital communication
For a digital communication the optional USB programming kit is required.
1. Connect each wire of the USB adapter cable with the same colored wire of the sensor cable by
using the terminal block. Press with a screw driver as shown in the picture to lose a contact.

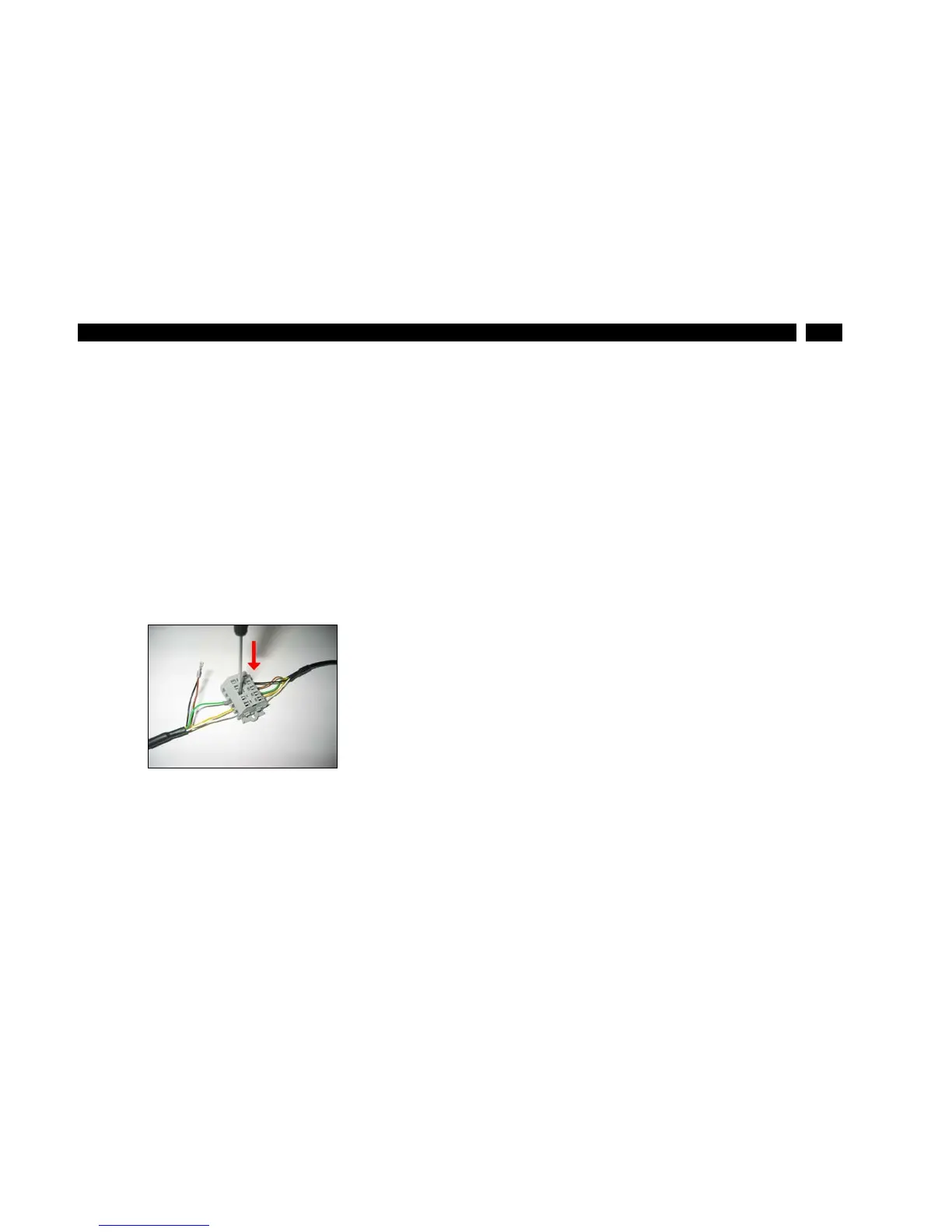

Figure 20: Connection USB cable
