36

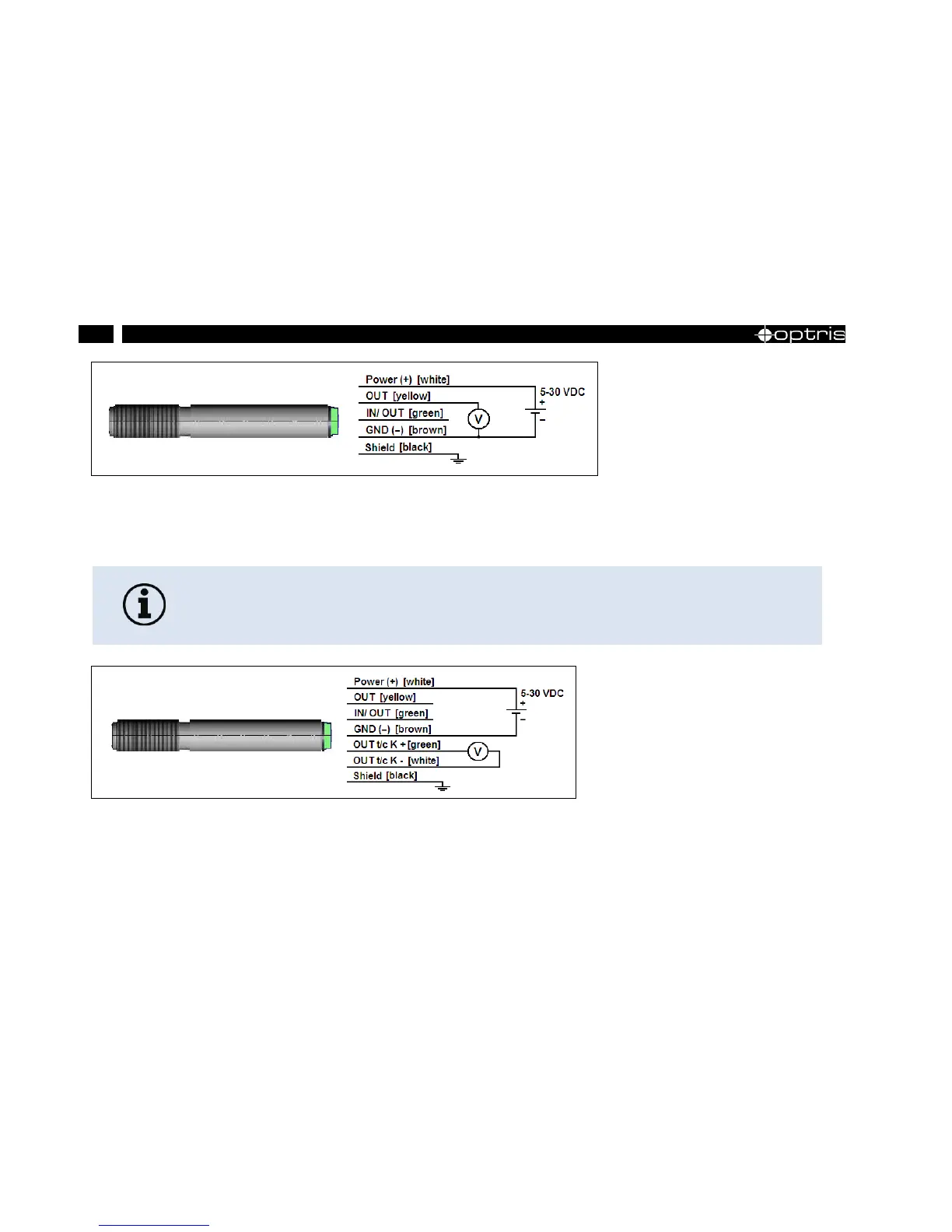

Figure 18: Analog device (mV output at OUT pin)
Analog device (Thermocouple typ K at OUT t/c K pins)
Figure 19: Analog device (Thermocouple typ K at OUT t/c K pins)
The output impedance must be ≥ 20 Ω.
