ST 6100 - HARDWARE GUIDE
3 SPECIFICATIONS
3.1 Temperature
Parameter Value
Operating Temperature -40° to +85°C
Storage Temperature -40° to +85°C
3.2 Connectors
The terminals use a circular 10-pin (Chogori) connector.
Parameter Part Number
Mating Connector Kit ST100030-001
3.2.1 Connector Pin Assignment

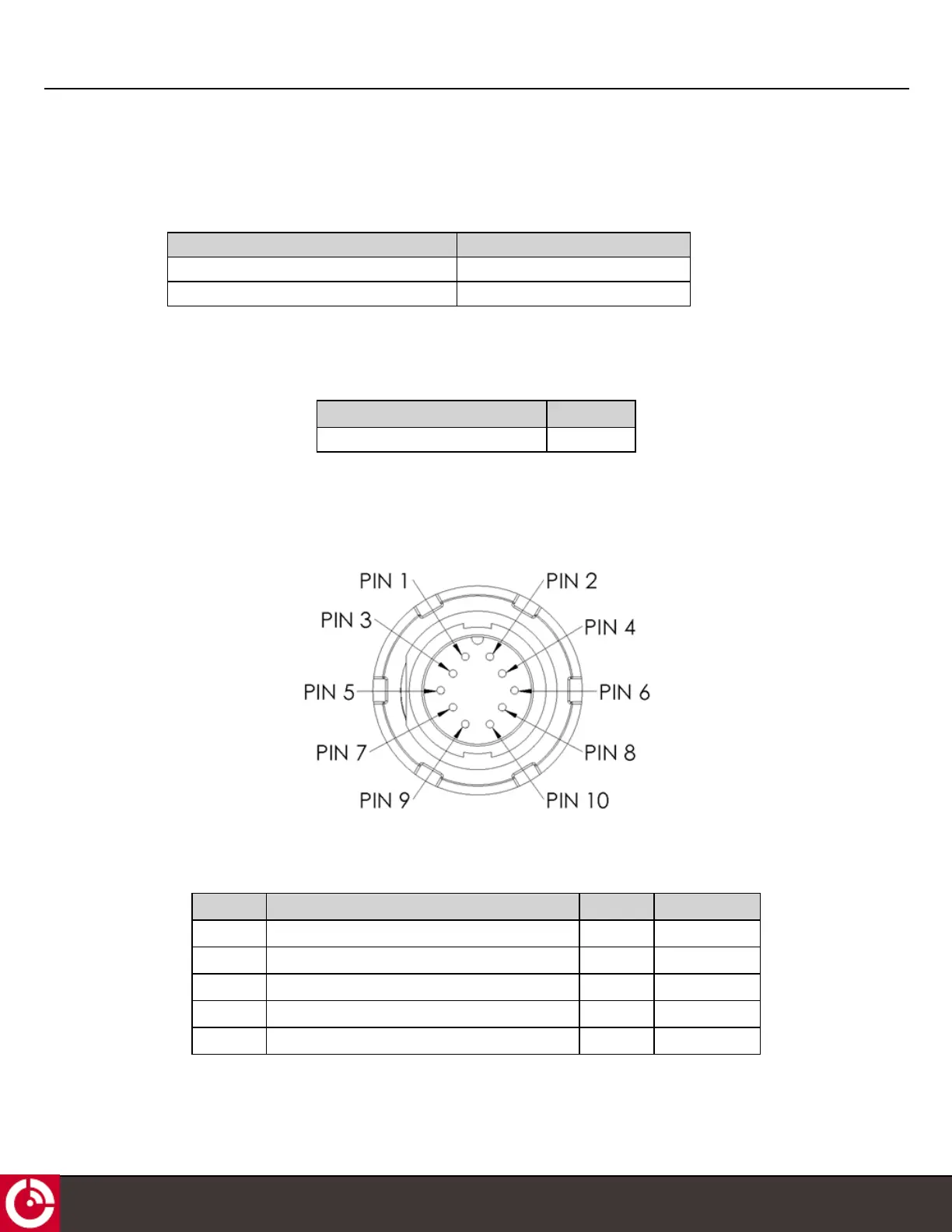

Figure 4: Terminal Connector Pin Assignment (Male)
Table 4: Electrical Pin Assignment (ST 6100)
Pin Functionality Pin Functionality
1 RS-485 A 2 RS-485 B
3 GND 4 VIN
5 I/O 02 6 I/O 03
7 I/O 01 8 I/O 04
9 RS-232 Tx (Output) 10 RS-232 Rx (Input)
