ST 6100 - HARDWARE GUIDE
1 PRODUCT OVERVIEW
Each ST 6100 consists of a single environmentally sealed mechanical enclosure containing an integral antenna, a
satellite modem for communicating with the satellite, an integral GPS subsystem, four input/output ports, an RS-232
port, and an RS-485 port. The ST 6100 is available in various configurations.

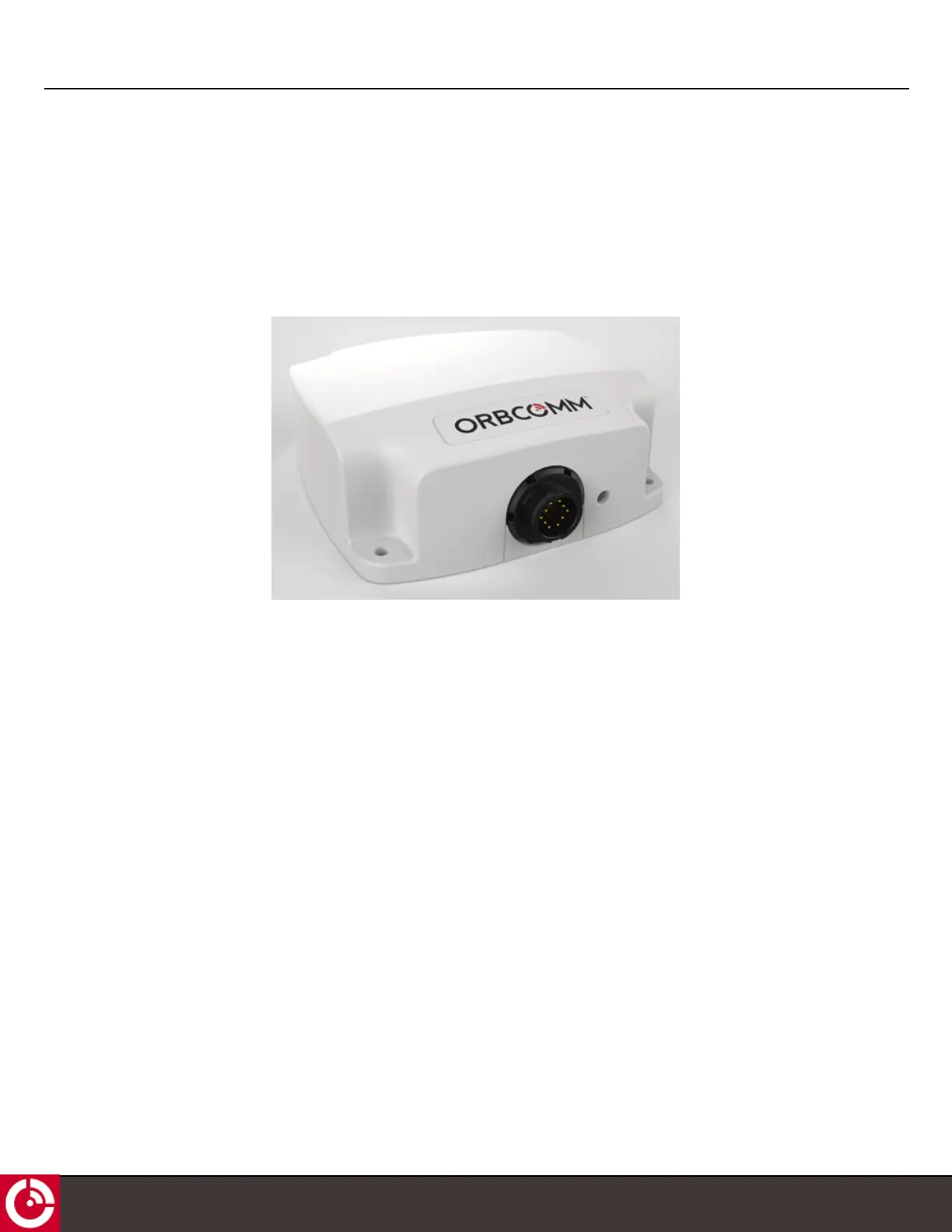

Figure 1: ST 6100
Each ST 6100 is designed for industrial and fixed applications or to be mounted outdoors on a wide range of
platforms such as vehicles or boats. The ST 6100 is designed for harsh industrial applications and can be used for
applications that support both fixed and mobile (e.g., trucks and boats) assets.
The terminal’s built-in programmability allows it to work as a standalone data-messaging terminal, with built-in I/O
data collection and processing capabilities. Feature-rich software tools make programming easy and shorten the
design and testing time.
1.1 Terminals
The ST 6100 (Table 1) operates on the IsatData Pro network. The ST 6100 is self-contained, environmentally sealed,
compact, and provides low power consumption.
Terminals include an omnidirectional antenna, satellite modem, GPS, programmable microcontroller, accelerometer,
and several I/O (input/output) feeds capable of monitoring and controlling external sensors and terminals.
The built-in programmability allows it to work as a standalone terminal with built-in I/O data collection and
processing capabilities. Each model is suitable for both mobile and fixed installations.
Feature-rich software tools make scripting easy, and shorten the script design and testing time.
T406, VERSION 01
9
© ORBCOMM PROPRIETARY
