ST 6100 - HARDWARE GUIDE
Parameter Min. Typical Max. Units
Output pulse rate - - 10
1
Hz
Output bandwidth 100 - - Hz
3.4.3 Analog Input

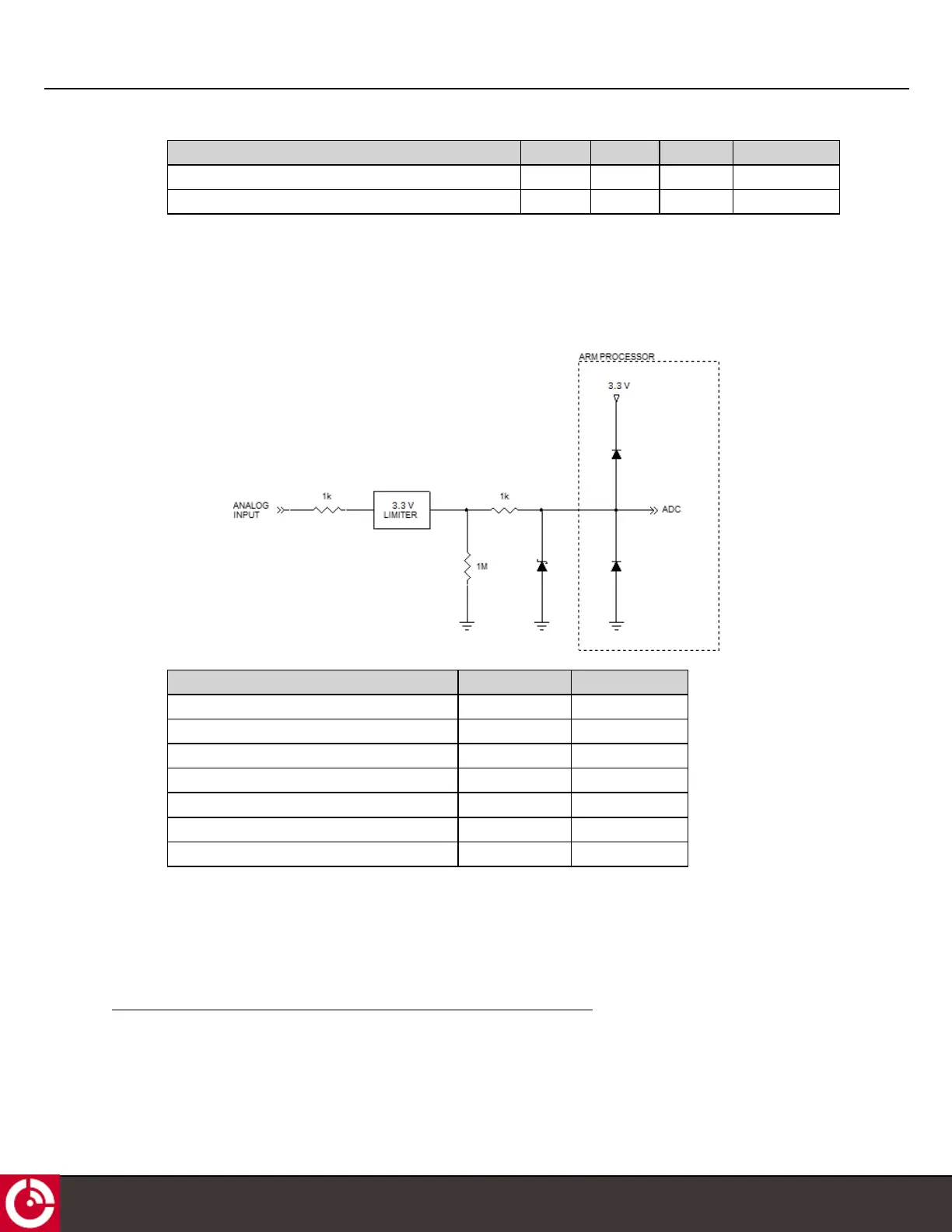

The figure below shows a schematic of the I/O when configured as an analog input.
Figure 10: Analog Input
Parameter Value Units
Input impedance 1 MΩ (typical)
Measurement voltage range 0 to 3.3 V
Resolution 0.806 mV (12 bits)
Accuracy 1.5% + 2 LSB
Voltage limits -10 to 150 V
Input sample rate -10 Hz
2
Input bandwidth 1 kHz minimum
3.4.3.1 Analog Accuracy
The terminal measures the analog inputs using the GND pin as a reference. As the GND pin is shared with the power
supply, return current can create a voltage drop between the GND pin and the power supply, which in many cases
1
This value is dependent on the Lua services being used. This is not a hardware limitation. The hardware limit is specified by
the output bandwidth.
2
This value is dependent on the Lua services being used. This is not a hardware limitation. The hardware limit is specified by
the input bandwidth.
T406, VERSION 01
21
© ORBCOMM PROPRIETARY
