TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202152 | ORBEA ORBEA | 53
EN

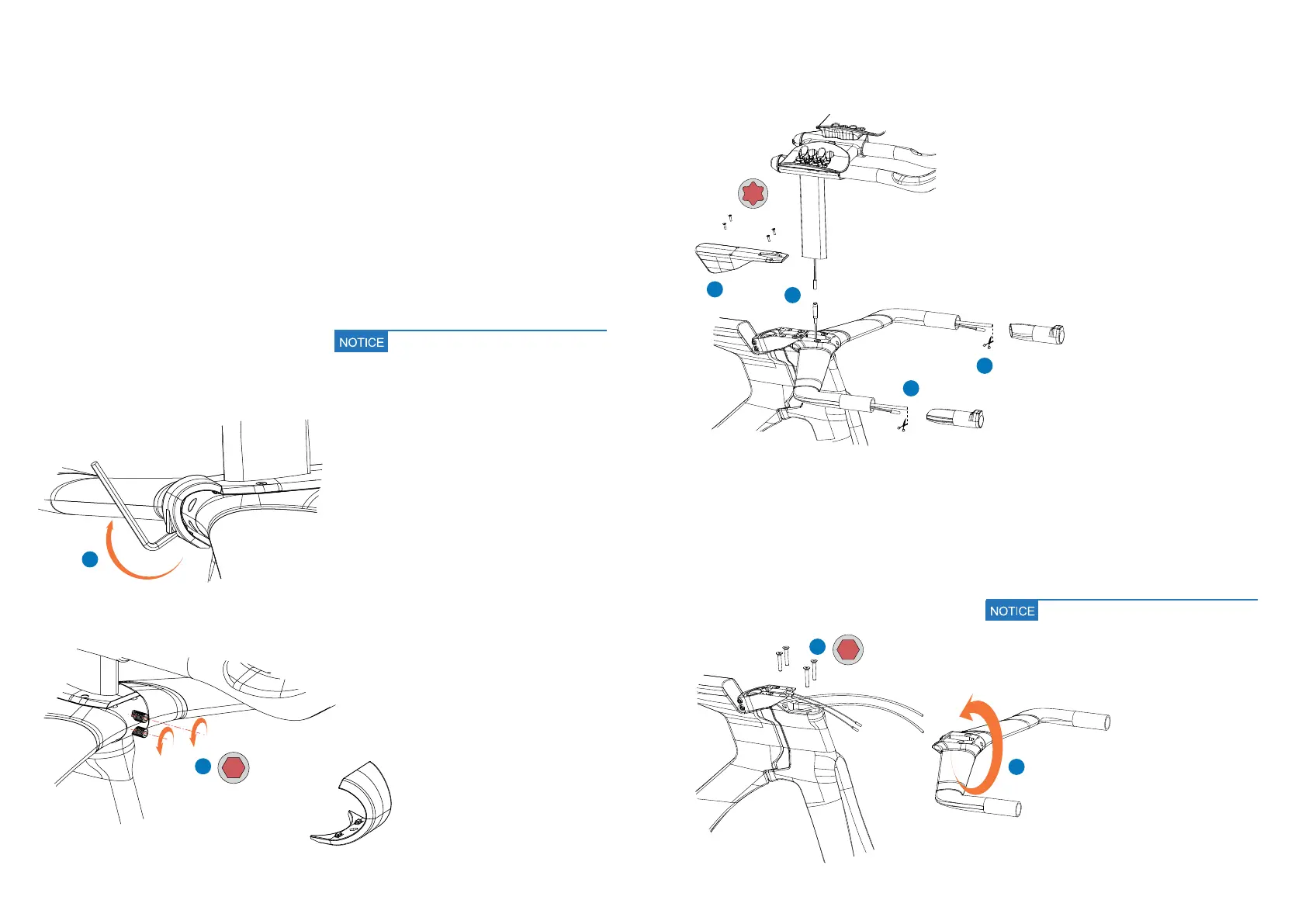

To change the base handlebar height on assemblies with
electronic gears, follow the method below:
1. Use an Allen key on the hole on the bottom of the
handlebar front cover as a lever to unclip it from
the base handlebar.
2. Use an 3mm Allen key to loosen the front post clamp.
3. Remove the front post-extensions assembly from the
bicycle and disconnect the extensions Di2 cable.
4. Remove the stem cover.
5. Remove the brake levers from the base handlebar and
disconnect the brake hoses and the Di2 cables from
the levers. Remove the handlebar grips. Cut the brake
hose section with an olive installed on it and remove
VJGJQUGUƂZKPIPWVVQVJGNGXGT
ELECTRONIC GEARS
ASSEMBLIES
Only cut the minimum needed section of
brake hose to remove the olive in order to
leave enough hose lenght to re-install the
levers onto the base handlebar after turning
it. If the brake hose lenght left is not enough
to re-install the brake lever to the handlebar,
it will be needed to install new brake hoses.
0.5 N.m
1.5
3
4
5
5
3
4 N.m
7
6
7
Allen 3mm
1
1
 4GOQXGVJGJCPFNGDCTƂZKPIDQNVUVQVJGHQTMCPFTG-
move the handlebar, pulling the brake hoses and the
Di2 cables from the handlebar.
7. Turn the habdlebar 180º to the desired position.
8. Guide the brake hoses and the Di2 cables back through
the handlebar and re-install all components following the
recommended torque settings.
Always install a new pin and olive on the
brake hoses when connecting them to
the brake levers. If the brake hose lenght left
is not enoughto attach the hoses to the levers,
it will be needed to install new brake hoses.
2
3
4 N.m
