TECHNICAL MANUAL BLUE PAPER ORDU · OMX 202150 | ORBEA ORBEA | 51
EN

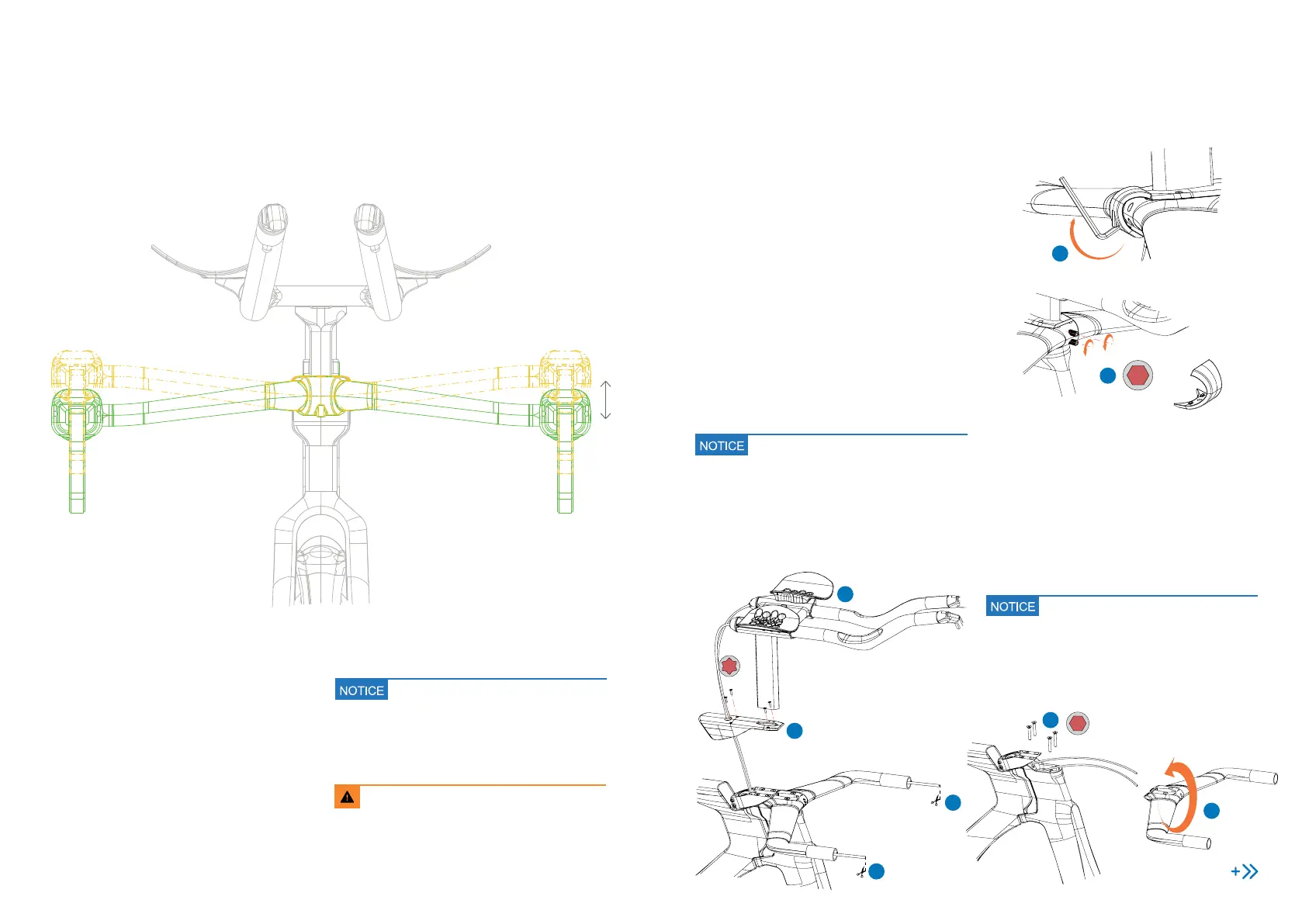

BASE HANDLEBAR
HEIGHT CHANGE
The base handlebar on Ordu OMX is reversible. It can be
installed in two positions with a 30mm difference between
positions to achieve the desired handlebar height.
To change the base handlebar height on assemblies with
mechanical gears, follow the method below:
1. Use an Allen key on the hole on the bottom of the
handlebar front cover as a lever to unclip it from
the base handlebar.
2. Use an 3mm Allen key to loosen the front post clamp.
3. Remove the front post-extensions assembly from the
bicycle. It is not necessary to disassemble the assem-
bly components or to disconnect the gear cables from
the extensions levers.
4. Remove the stem cover.
5. Remove the brake levers from the base handlebar and
disconnect the brake hoses from the levers. Cut the
brake hose section with an olive installed on it and re-
OQXGVJGJQUGUƂZKPIPWVVQVJGNGXGT
 4GOQXGVJGJCPFNGDCTƂZKPIDQNVUVQVJGHQTMCPFTG-
move the handlebar, pulling the brake hoses from the
handlebar.
7. Turn the habdlebar 180º to the desired position.
8. Guide the brake hoses back through the handlebar and
re-install all components following the recommended
torque settings.
MECHANICAL GEARS ASSEMBLIES
3
4 N.m
Only cut the minimum needed section of
brake hose to remove the olive in order to
leave enough hose lenght to re-install the
levers onto the base handlebar after turning
it. If the brake hose lenght left is not enough
to re-install the brake lever to the handlebar,
it will be needed to install new brake hoses.
Always install a new pin and olive on
the brake hoses when connecting them to the
brake levers. If the brake hose lenght left is
not enoughto attach the hoses to the levers,
it will be needed to install new brake hoses.
3
4 N.m
Allen 3mm
1
2
3
4
5
5
6
7
Once the base handlebar has been installed,
later re-positioning requires to disconnect the
brake hoses from the levers and to cut the hose
section with an olive installed on it. Bleeding of
the brake lines is highly recommended to en-
sure the correct brake action.
Orbea always recommends to take your bicy-
cle to an authorized dealer to perform these
changes on your bucycle.
30mm
0.5 N.m
1.5
