Your Chain saw
1. Front guard and chain brake
2. Starter knob
3. Air cleaner
4. Choke lever
5. Throttle interlock
6. Right handle
7. Throttle lever
8. Engine switch
9. Fuel tank
10.Oil tank
11. Left handle
12.Saw chain
13. Guide bar

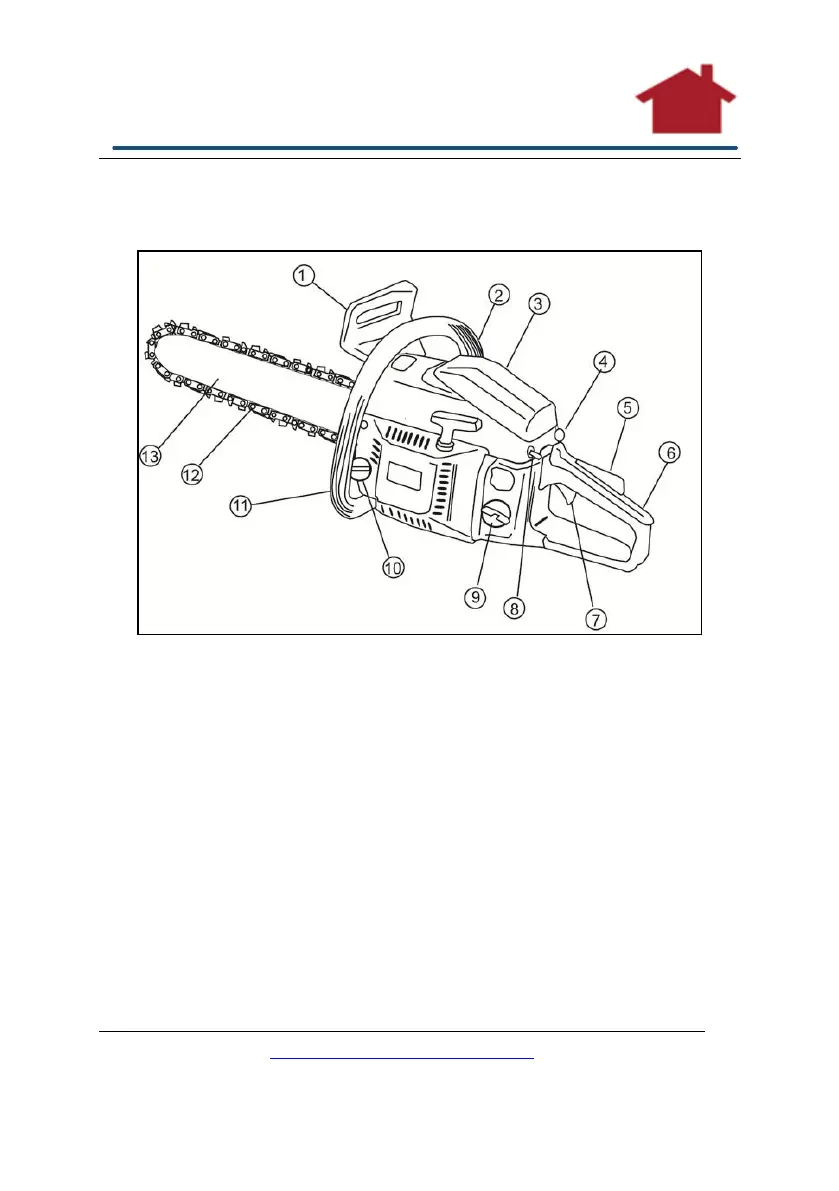

Figure 2 Your Chain saw
