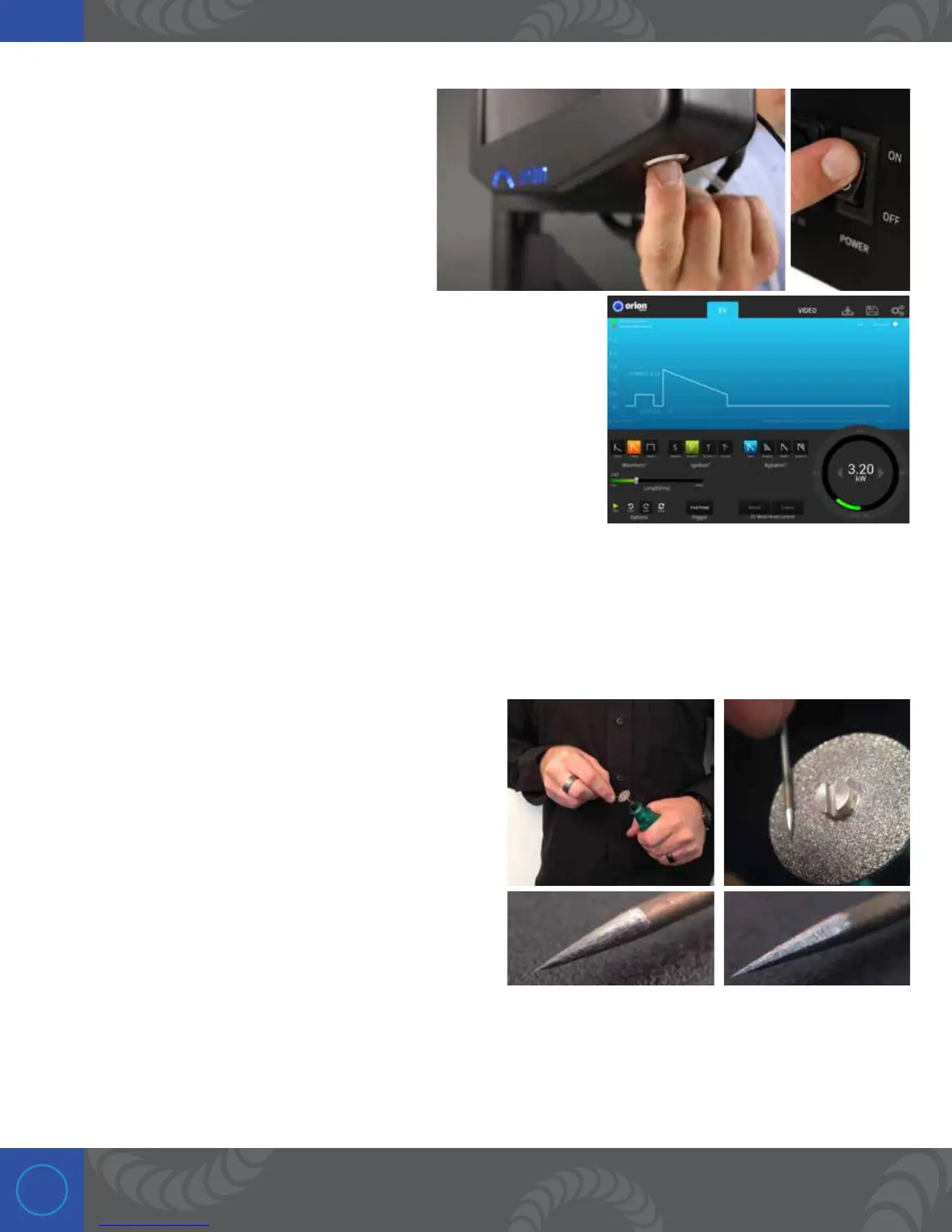

Step 10: Power the welder and the EV weld head
Power the welder with the button on the bottom
of the welder, then turn on the weld head with
the switch found on the side. Once both are
powered the welder interface should display the
EV mode screen. If you don’t see this tab you
may be missing a connector or may have not
powered the weld head.
Chapter 3: Electrode Setup
Clean and Shape the Electrode
1. Attach the provided diamond disk to a dremel (or
similar type tool) . Power on the dremel and hold it in one
hand (close to your body to keep it steady) .
2. Place the electrode in your other hand between the
thumb and index finger .
3. Touch the electrode to the diamond disk (at your
desired angle) and rotate the electrode in the same
direction multiple times until it is clean/sharp .
4. Run the electrode shaft parallel with the rotating plate,
do not run it perpendicular to the electrode shaft.
Good Bad
*Desired angle is 15˚
