18

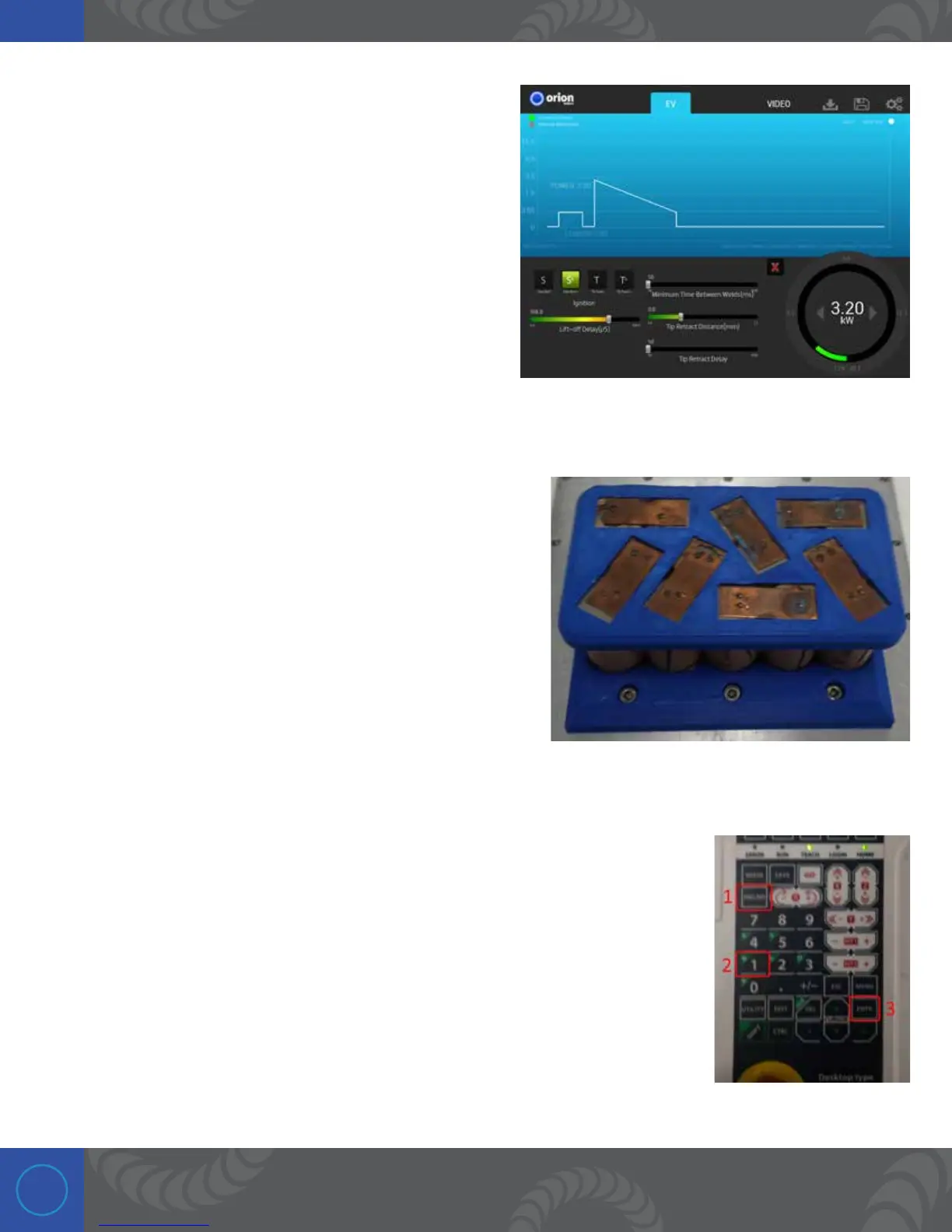

Step 6:
1. Press the word “Ignition” to open the advanced settings
menu for the ignition settings.
1. Set the Lift-off Delay between 100-110 uS.
2. Set the Minimum Time Between Welds to 50ms.
3. Set the Tip Retract Distance to 0 .8mm.
4. Set the Tip Retract Delay to to 50ms.
5. When done, you can exit this advanced settings menu
by pressing the red “X” in the upper right corner (below
the graph portion of the screen).
Step 7:
Secure your fixture to the CNC table. M4 screws can be used
to mount directly to plate.
Step 8:
1. We will make a sample program, using Program 1. To select Program 1, pressing
the “PRG NO” button.
2. Press “1”.
3. en press “ENTR”.
