MULTI-AMPLIFIER
SYSTEMS
For
precise
staging
and
raw
power,
you
can
implement
a
more
sophisticated
system
by
using
two
amplifiers
with
satellite
speakers,
as
shown
in
Fig.
6.
The
pre-amp
outputs
form
the
control
head
unit
actively
split
into
two
frequency
bands
by
using
a
aossover
like
the
200
SPX.
Stereo
pairs
of
tweeters
and
mid-range
speakers
are
driven
by
a
CO
230
ampli¬
fier,
fed
by
the
crossover's
high
output.
Sub-woofers
are
driven
by
a
CO
260
amplifier
in
stereo
or
Summed
Mono
Bridged
configuration,
with
the
feed
from
the
crossover's
low
output.
NOTE:
As
an
alternative,
you
can
purchase
XTREME
Dual
l/orce-co//
sub¬
woofers.
For
greater
sound
con¬
touring,
add
a
300
PHD
equalizer
between
the
control
head
unit
and
200
SPX
active
crossover.
hwHcMn
VehcksBattny

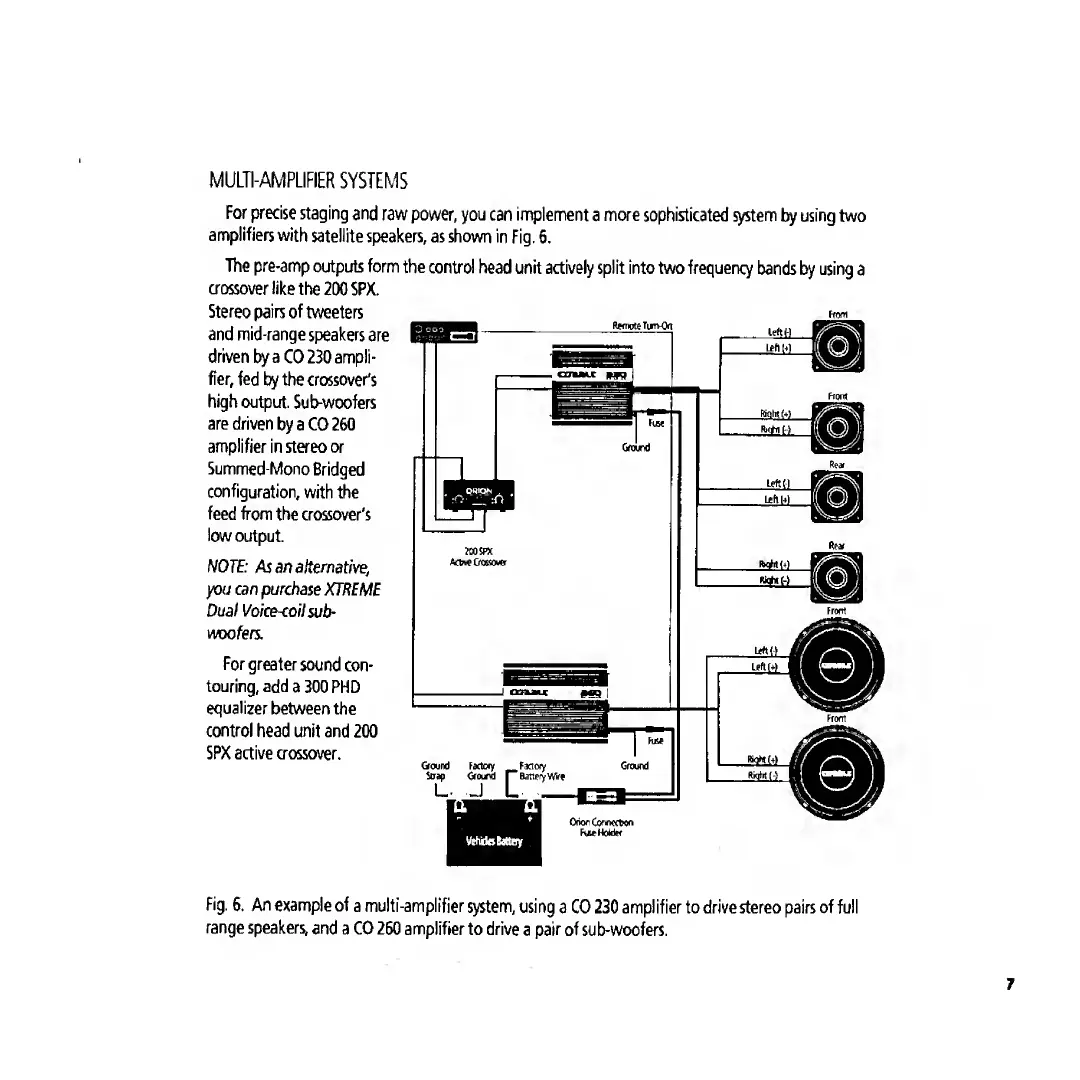

Fig.
6.
An
example
of
a
multi-amplifier
system,
using
a
CO
230
amplifier
to
drive
stereo
pairs
of
full
range
speakers,
and
a
CO
260
amplifier
to
drive
a
pair
of
sub-woofers.
