Orion COBALT Series Installation Manual

MULTI-CHANNEL AMPLIFIER
We designed the CO 430 to be more than just a standard 4<hannel amplifier. Depending on the
speaker wiring, you can configure the CO 430 as a 2-,3-,4-, 5-, or even a &-channel ampi if ier, as shown
in Fig. 7Aand Fig. 7B.
NOTE: The examples in Fig. 7Aand Fig. 7B are only a few of the audio systems possible with the CO
430 amplifier.
For a high-powered 2'{harrnel amplifier, connect a pair of full-range speakers in a bridged wiring scheme to obtain 120
watts rms (at 4 ohms) at each speaker.
For 3<hannel operation, connect full-range speakers to the CO 430 front stereo outputs, and add a sub-woofer with an
Orion Connection CSX-TI4 passive crossover to the rear connections in a Mixed-Mono Bridged configuration.
For a 4channet amplifier, use the CO 430 as Front and Rear stereo amplifiers. Connert fulkange or component-type
speakers with Orion Connection passive crossovers in this configuration.
FronlOunn«l Output
2- Channel
full-range speakers
8

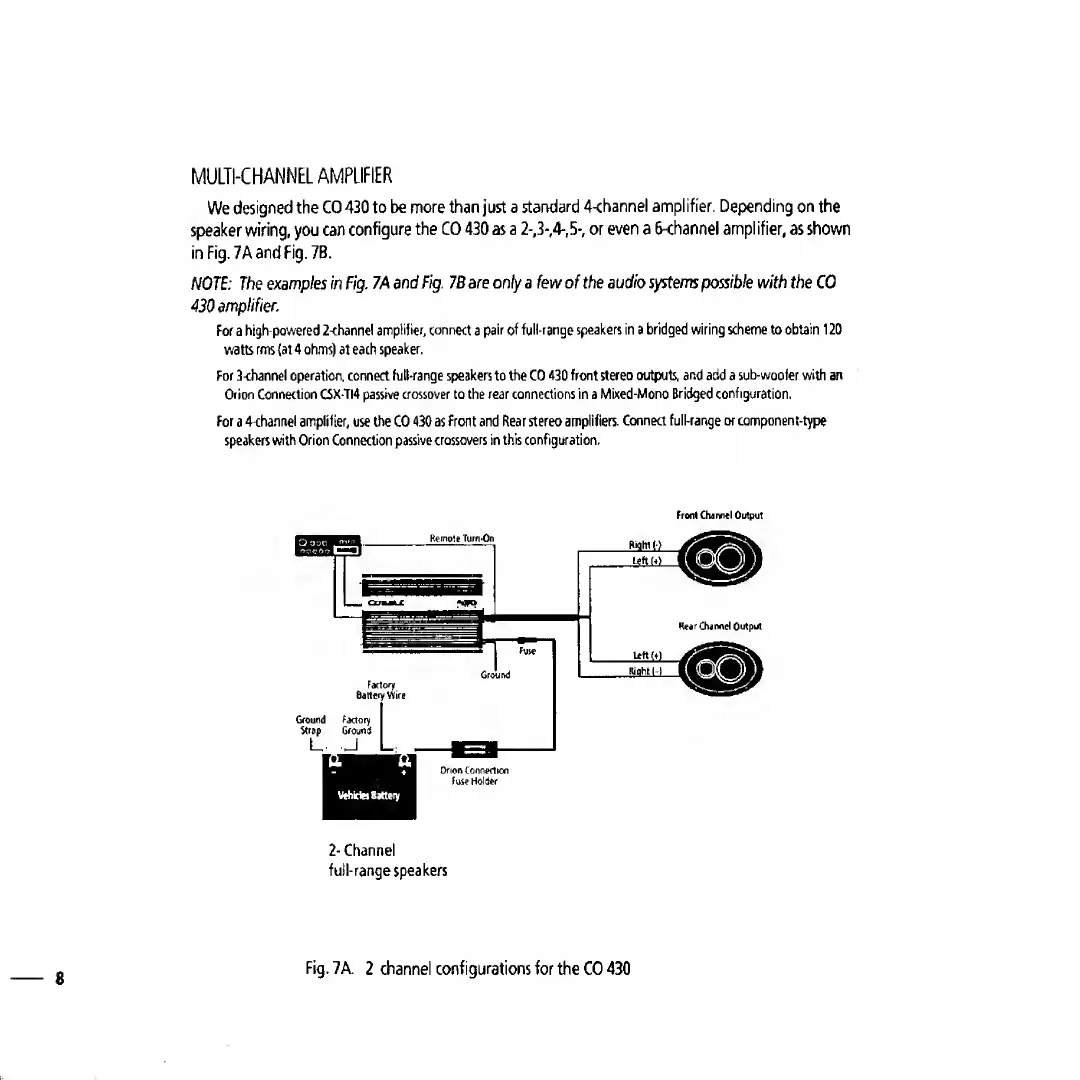

Fig. 7A. 2 channel configurations for the CO 430
