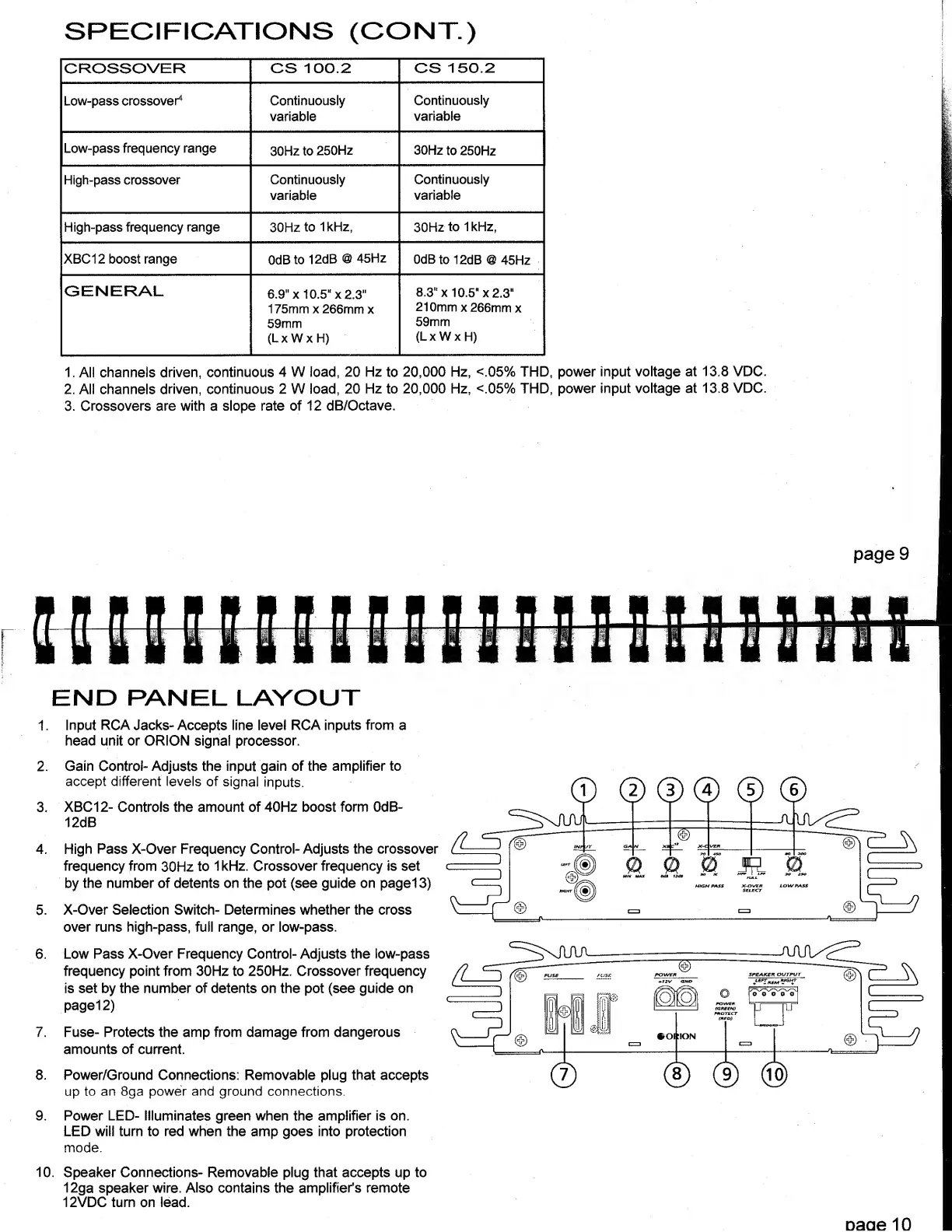

SPECIFICATIONS
(CONT.)
CROSSOVER
CS
100.2
CS
150.2
Low-pass
crossover
4
Continuously
variable
Continuously
variable
Low-pass
frequency
range
30Hz
to
250Hz
30Hz
to
250Hz
High-pass
crossover
Continuously
variable
Continuously
variable
High-pass
frequency
range
30Hz
to
1kHz,
30
Hz
to
1kHz,
XBC12
boost
range
OdBto
12dB
@
45Hz
OdBto
12dB
@
45Hz
GENERAL
6.9"
x
10.5"
x
2.3"
175mm
x
266mm
x
59mm
(LxWxH)
8.3"
x
10.5’x
2.3"
210mm
x
266mm
x
59mm
(LxWxH)
1.
All
channels
driven,
continuous
4
W
load,
20
Hz
to
20,000
Hz,
<.05%
THD,
power
input
voltage
at
13.8
VDC.
2.
All
channels
driven,
continuous
2
W
load,
20
Hz
to
20,000
Hz,
<.05%
THD,
power
input
voltage
at
13.8
VDC.
3.
Crossovers
are
with
a
slope
rate
of
12
dB/Octave.
END
PANEL
LAYOUT
1.
Input
RCA
Jacks-
Accepts
line
level
RCA
inputs
from
a
head
unit
or
ORION
signal
processor.
2.
Gain
Control-
Adjusts
the
input
gain
of
the
amplifier
to
accept
different
levels
of
signal
inputs.
3.
XBC12-
Controls
the
amount
of
40Hz
boost
form
OdB-
12dB
4.
High
Pass
X-Over
Frequency
Control-
Adjusts
the
crossover
frequency
from
30Hz
to
1
kHz.
Crossover
frequency
is
set
by
the
number
of
detents
on
the
pot
(see
guide
on
page13)
5.
X-Over
Selection
Switch-
Determines
whether
the
cross
over
runs
high-pass,
full
range,
or
low-pass.
6.
Low
Pass
X-Over
Frequency
Control-
Adjusts
the
low-pass
frequency
point
from
30Hz
to
250Hz.
Crossover
frequency
is
set
by
the
number
of
detents
on
the
pot
(see
guide
on
page
12)
7.
Fuse-
Protects
the
amp
from
damage
from
dangerous
amounts
of
current.
8.
Power/Ground
Connections:
Removable
plug
that
accepts
up
to
an
8ga
power
and
ground
connections.
9.
Power
LED-
Illuminates
green
when
the
amplifier
is
on.
LED
will
turn
to
red
when
the
amp
goes
into
protection
mode.
10.
Speaker
Connections-
Removable
plug
that
accepts
up
to
12ga
speaker
wire.
Also
contains
the
amplifier's
remote
12VDC
turn
on
lead.
1_
-_0.
JT
GA
M_
XI
®
®
®
oaae
10
