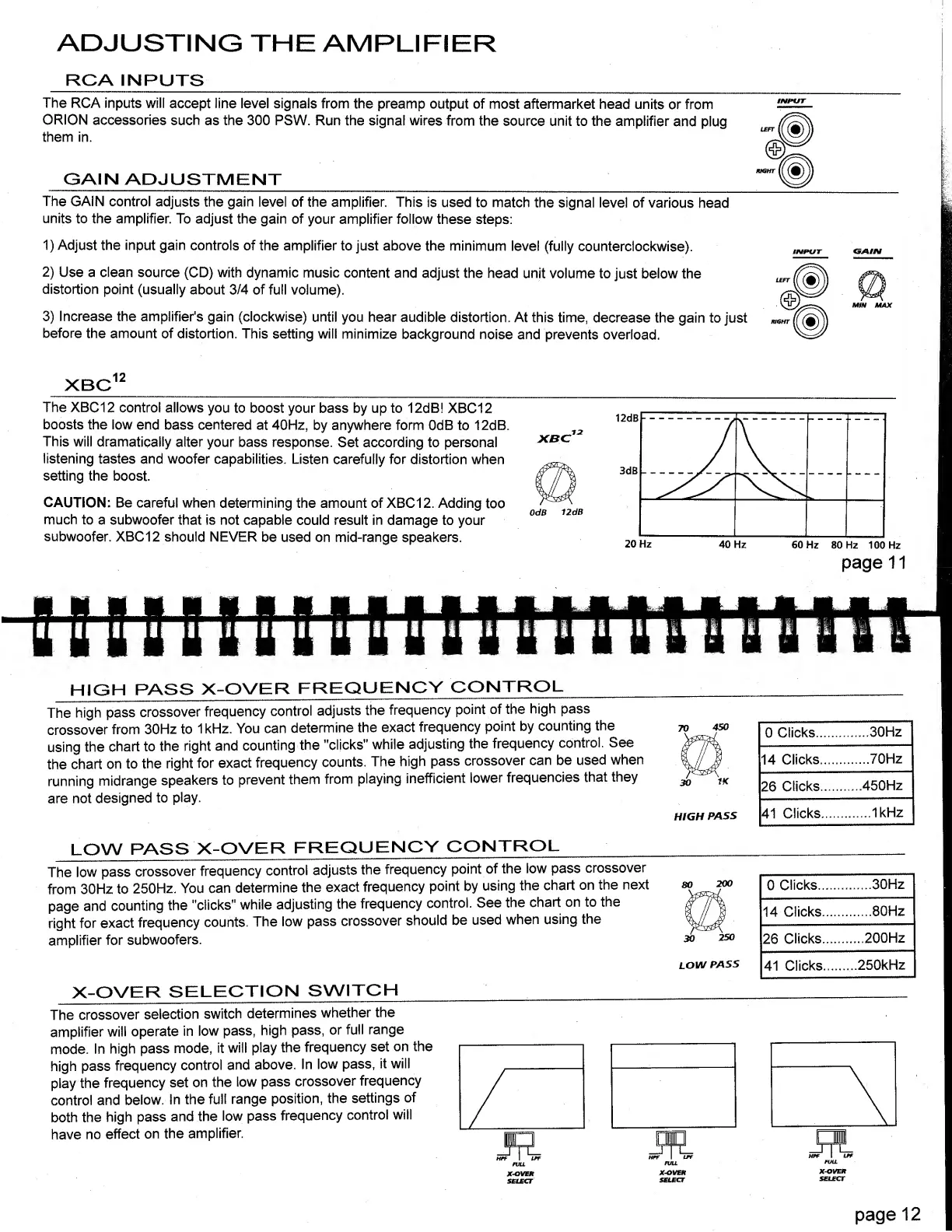

ADJUSTING
THE
AMPLIFIER
RCA
INPUTS
The
RCA
inputs
will
accept
line
level
signals
from
the
preamp
output
of
most
aftermarket
head
units
or
from
ORION
accessories
such
as
the
300
PSW.
Run
the
signal
wires
from
the
source
unit
to
the
amplifier
and
plug
them
in.
GAIN
ADJUSTMENT
____
The
GAIN
control
adjusts
the
gain
level
of
the
amplifier.
This
is
used
to
match
the
signal
level
of
various
head
units
to
the
amplifier.
To
adjust
the
gain
of
your
amplifier
follow
these
steps:
1)
Adjust
the
input
gain
controls
of
the
amplifier
to
just
above
the
minimum
level
(fully
counterclockwise).
2)
Use
a
clean
source
(CD)
with
dynamic
music
content
and
adjust
the
head
unit
volume
to
just
below
the
distortion
point
(usually
about
3/4
of
full
volume).
3)
Increase
the
amplifier's
gain
(clockwise)
until
you
hear
audible
distortion.
At
this
time,
decrease
the
gain
to
just
before
the
amount
of
distortion.
This
setting
will
minimize
background
noise
and
prevents
overload.
INtHJT
itVPVT
GA/N
MIN
MAX
XBC
1
2
_
The
XBC12
control
allows
you
to
boost
your
bass
by
up
to
12dB!
XBC12
boosts
the
low
end
bass
centered
at
40Hz,
by
anywhere
form
OdB
to
12dB.
This
will
dramatically
alter
your
bass
response.
Set
according
to
personal
listening
tastes
and
woofer
capabilities.
Listen
carefully
for
distortion
when
setting
the
boost.
CAUTION:
Be
careful
when
determining
the
amount
of
XBC12.
Adding
too
much
to
a
subwoofer
that
is
not
capable
could
result
in
damage
to
your
subwoofer.
XBC12
should
NEVER
be
used
on
mid-range
speakers.
JCBC
OdB
12dB
HIGH
PASS
X-OVER
FREQUENCY
CONTROL
__
The
high
pass
crossover
frequency
control
adjusts
the
frequency
point
of
the
high
pass
crossover
from
30Hz
to
1
kHz.
You
can
determine
the
exact
frequency
point
by
counting
the
using
the
chart
to
the
right
and
counting
the
"clicks"
while
adjusting
the
frequency
control.
See
the
chart
on
to
the
right
for
exact
frequency
counts.
The
high
pass
crossover
can
be
used
when
running
midrange
speakers
to
prevent
them
from
playing
inefficient
lower
frequencies
that
they
are
not
designed
to
play.
0
Clicks.
.30Hz
14
Clicks.
.70Hz
26
Clicks.
.450Hz
41
Clicks.....
.1kHz
LOW
PASS
X-OVER
FREQUENCY
CONTROL
The
low
pass
crossover
frequency
control
adjusts
the
frequency
point
of
the
low
pass
crossover
from
30Hz
to
250Hz.
You
can
determine
the
exact
frequency
point
by
using
the
chart
on
the
next
page
and
counting
the
"clicks"
while
adjusting
the
frequency
control.
See
the
chart
on
to
the
right
for
exact
frequency
counts.
The
low
pass
crossover
should
be
used
when
using
the
amplifier
for
subwoofers.
X-OVER
SELECTION
SWITCH
SO
200
LOW
PASS
0
Clicks.
.30Hz
14
Clicks.
.80Hz
26
Clicks.
.200Hz
41
Clicks.
...250kHz
The
crossover
selection
switch
determines
whether
the
amplifier
will
operate
in
low
pass,
high
pass,
or
full
range
mode.
In
high
pass
mode,
it
will
play
the
frequency
set
on
the
high
pass
frequency
control
and
above.
In
low
pass,
it
will
play
the
frequency
set
on
the
low
pass
crossover
frequency
control
and
below.
In
the
full
range
position,
the
settings
of
both
the
high
pass
and
the
low
pass
frequency
control
will
have
no
effect
on
the
amplifier.
page
12
