Orion COBALT Series User Manual

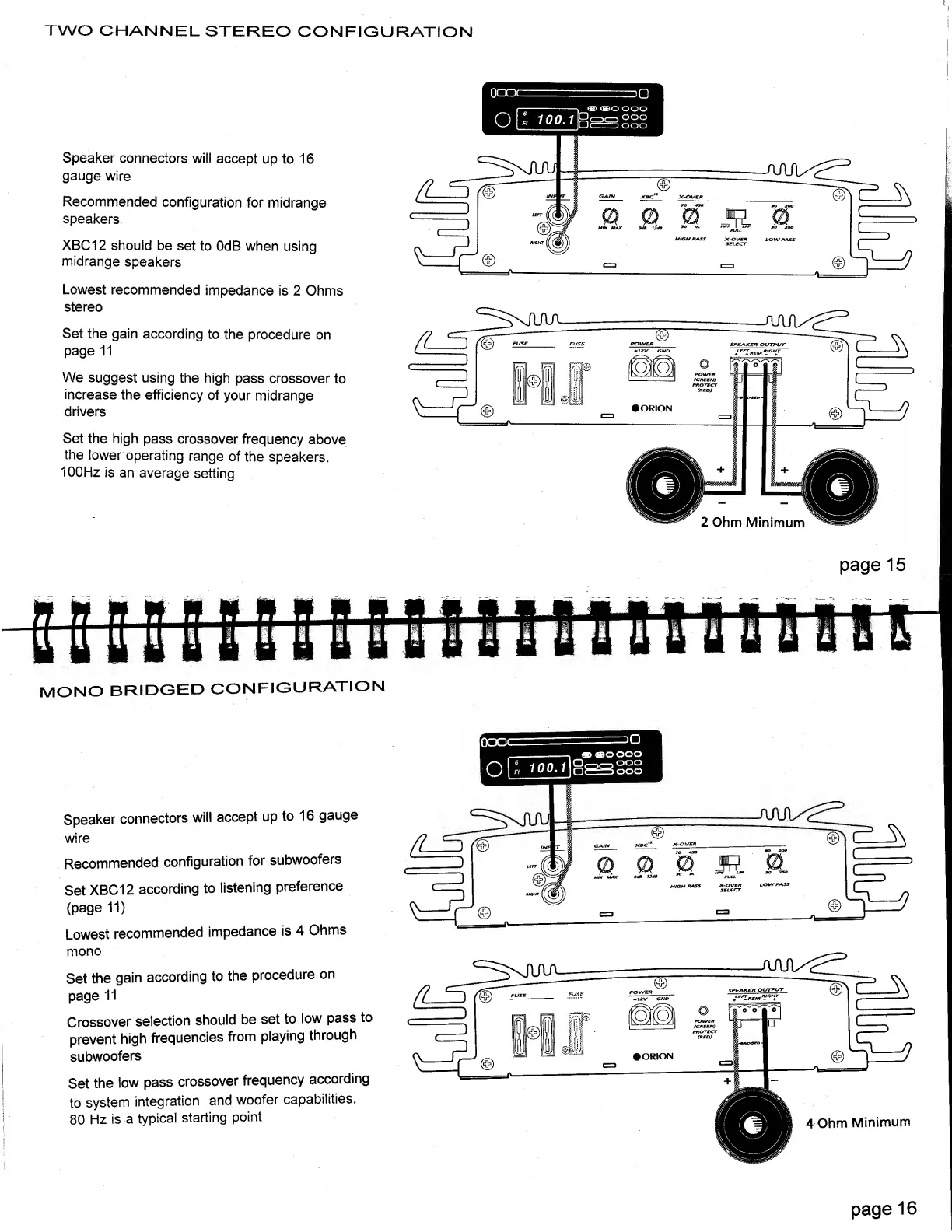

TWO CHANNEL STEREO CONFIGURATION
Speaker connectors will accept up to 16
gauge wire
Recommended configuration for midrange
speakers
XBC12 should be set to OdB when using
midrange speakers
Lowest recommended impedance is 2 Ohms
stereo
Set the gain according to the procedure on
page 11
We suggest using the high pass crossover to
increase the efficiency of your midrange
drivers
Set the high pass crossover frequency above
the lower operating range of the speakers.
100Hz is an average setting
page 15
MONO BRIDGED CONFIGURATION
Speaker connectors will accept up to 16 gauge
wire
Recommended configuration for subwoofers
Set XBC12 according to listening preference
(page 11)
Lowest recommended impedance is 4 Ohms
mono
Set the gain according to the procedure on
page 11
Crossover selection should be set to low pass to
prevent high frequencies from playing through
subwoofers
Set the low pass crossover frequency according
to system integration and woofer capabilities.
80 Hz is a typical starting point
page 16
