Ormazabal cgm.3-2lp User Manual

General instructions
Installation
IG-136-EN version 10; 23/06/2016
28
cgm.3 system
Fully SF6 gas insulated medium voltage switchgear up to 40.5 kV in accordance with IEC Standards

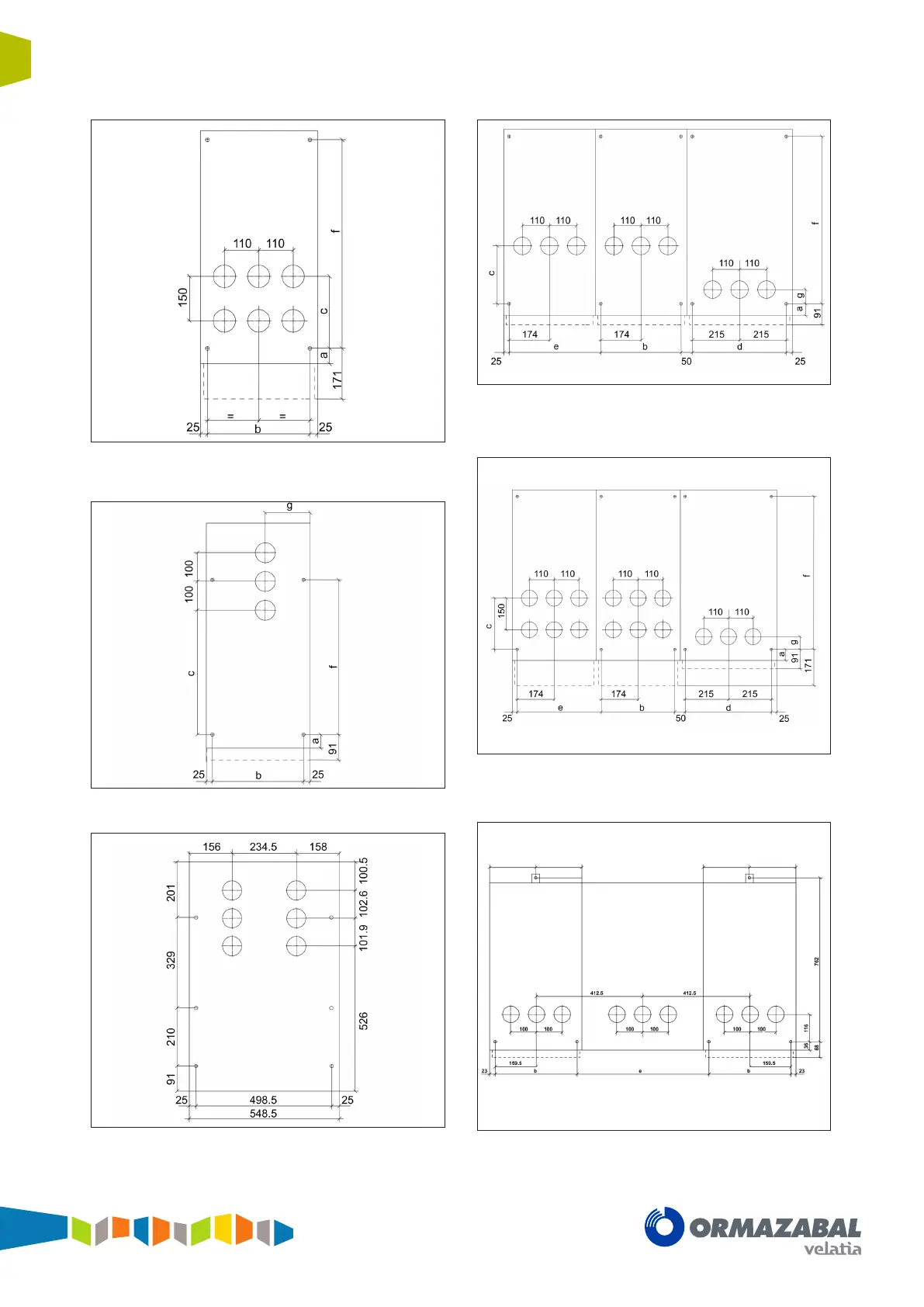

Figure 4.15 Anchoring points in cgm.3. -l, -s, -s-pt, -p, -v, -rb,-rb-pt
double cable cubicles of 1745 mm high
Figure 4.16 Anchoring points in cgm.3-rc cubicles.
Figure 4.17 Anchoring points in cgm.3-m cubicles.
Figure 4.18 Detail of anchor points in cgm.3-2lp cubicles
1745 mm high
Figure 4.19 Detail of anchor points in cgm.3-2lp double cable
cubicles 1745 mm high
Figure 4.20 Detail of anchor points in cgm.3-2lp cubicles
1400 mm high
