General instructions
Recommended sequence of operations
IG-136-EN version 10; 23/06/2016
56
cgm.3 system
Fully SF6 gas insulated medium voltage switchgear up to 40.5 kV in accordance with IEC Standards

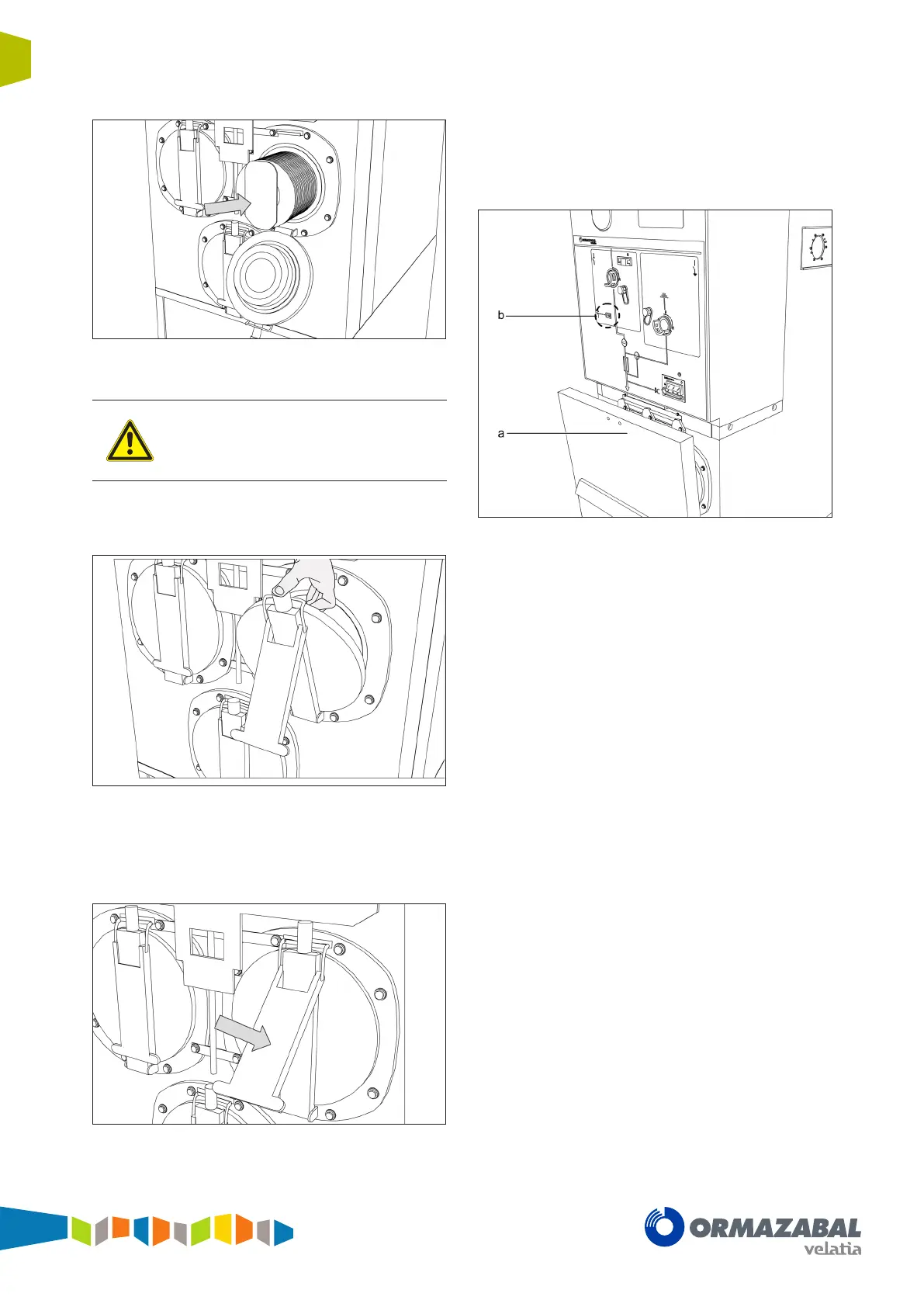

Figure 5.55 Inserting the fuse holder carriage
Before inserting the fuse holder carriage in
the fuse protection cubicle, ensure that both
the carriage as well as the inside of the fuse
holder are properly cleaned.
7. Reset the fuse striker by pressing downward with the
thumb.
Figure 5.56 Resetting the striker in the fuse holder cover
8. Close the cover and check that all the strikers have
been reset.
Figure 5.57 Closing the fuse holder
9. Place the fuse and cable compartment access cover
(a) by pushing it downward and ensuring it is locked
on the cgm.3-p cubicle, taking into account that the
fuse status indicator (b) is green.
Figure 5.58 Closing the cable and fuse compartment cover in
cgm.3-p
10. Start up the cubicle following the instructions set out
in these General Instructions.
