Ormazabal cpg.0 User Manual

IG-123-EN version 11; 23/07/2021
15
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Technical characteristics
2.2. Mechanical ratings
2.2.1. Dimensions

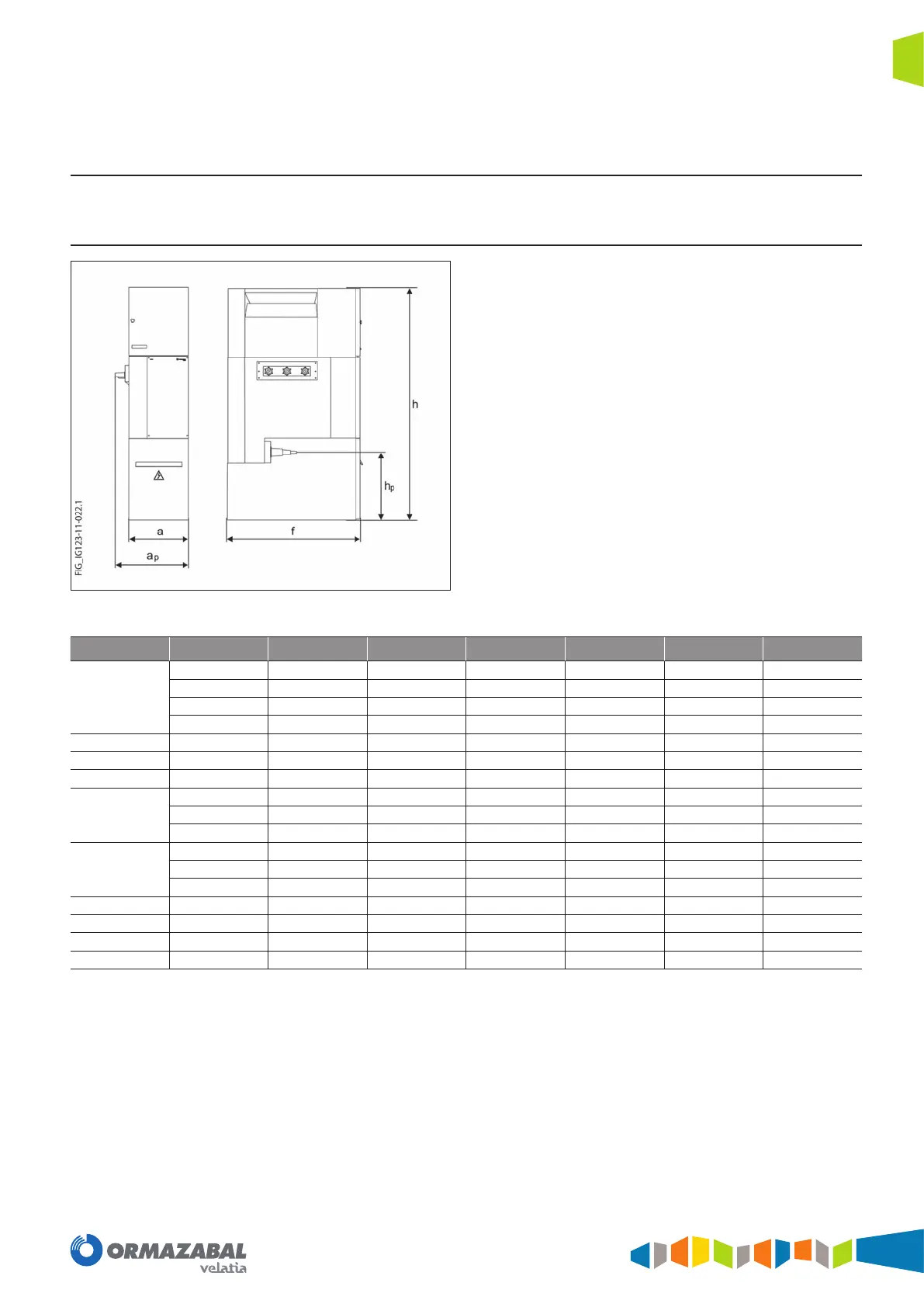

Figure 2.2. cpg.0 dimensions
Model I
outgoing
a ap h hp f Weight
v
630 600 - 2425 665 1365* 500/800
1250 600 - 2425 665 1365* 850
1600 700 - 2425 665 1365* 900
2000/2500 1000 - 2425 665 1365* 1100/1200
vl 1250 600 789 2425 665 1365* < 1200
f 200 600 - 2425 665 1402** 550
 200 600 789 2425 665 1402** 850
s
1250 600 - 2425 665 1365* 550
1600 700 - 2425 665 1365* 600
2000/2500 1000 - 2425 665 1365* 1100/1200
c
1250 1200 - 2425 665 1365* 1300
1600 1400 - 2425 665 1365* 1550
2000/2500 2000 - 2425 665 1365* 2300/2500
rb 1250 600 - 2425 665 1365* 500
pt - 600 - 2425 - 1365* 850
rci - 500 - 2425 - 1365* 260
rcd - 430 - 2425 - 1365* 250
(*) 1410 mm in the case of cubicles with IAC AFLR rating.
(**) 1447 mm in the case of cubicles with IAC AFLR rating.
Table 2.7. Dimensions and weights of cpg.0
