General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Handling and transport
Ormazabal provides a speci c tool for lifting the cpg.0-c
coupling cubicle during installation:

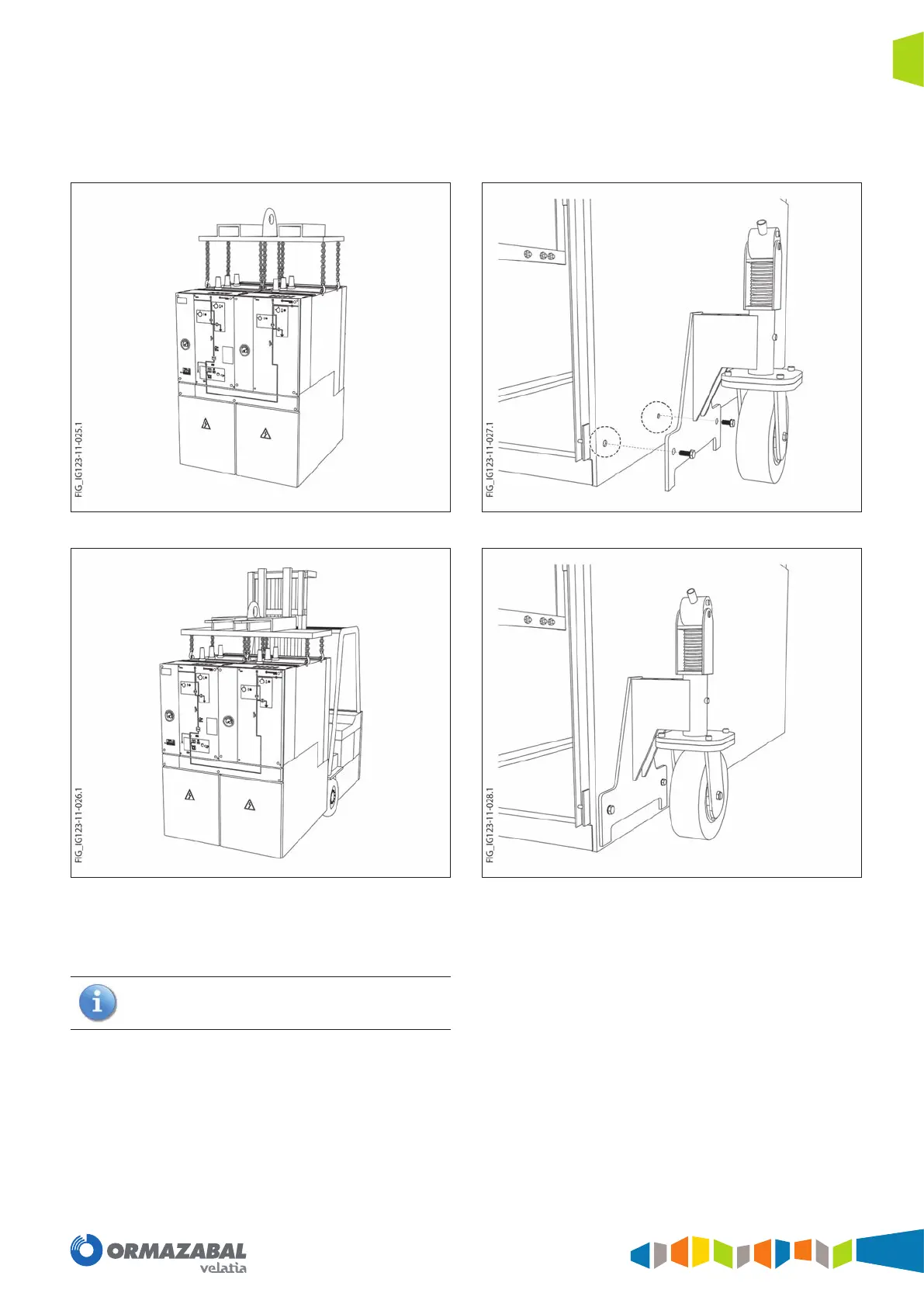

Figure 4.3. Lifting a cpg.0-c cubicle with a speci c tool
Figure 4.4. Lifting a cpg.0-c cubicle using a forklift truck and speci c tool
Elevating castor wheels can be used to put the cubicles in
their nal position.
Optional supply. Please check with Ormazabal.
Figure 4.5. Wheel anchors in the cubicle
Figure 4.6. Positioned wheel detail
