General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Operations sequence
a. Manual feeder disconnector operation
The FEEDER DISCONNECTOR manual driving lever is
identi ed using the symbol area GREY colour.

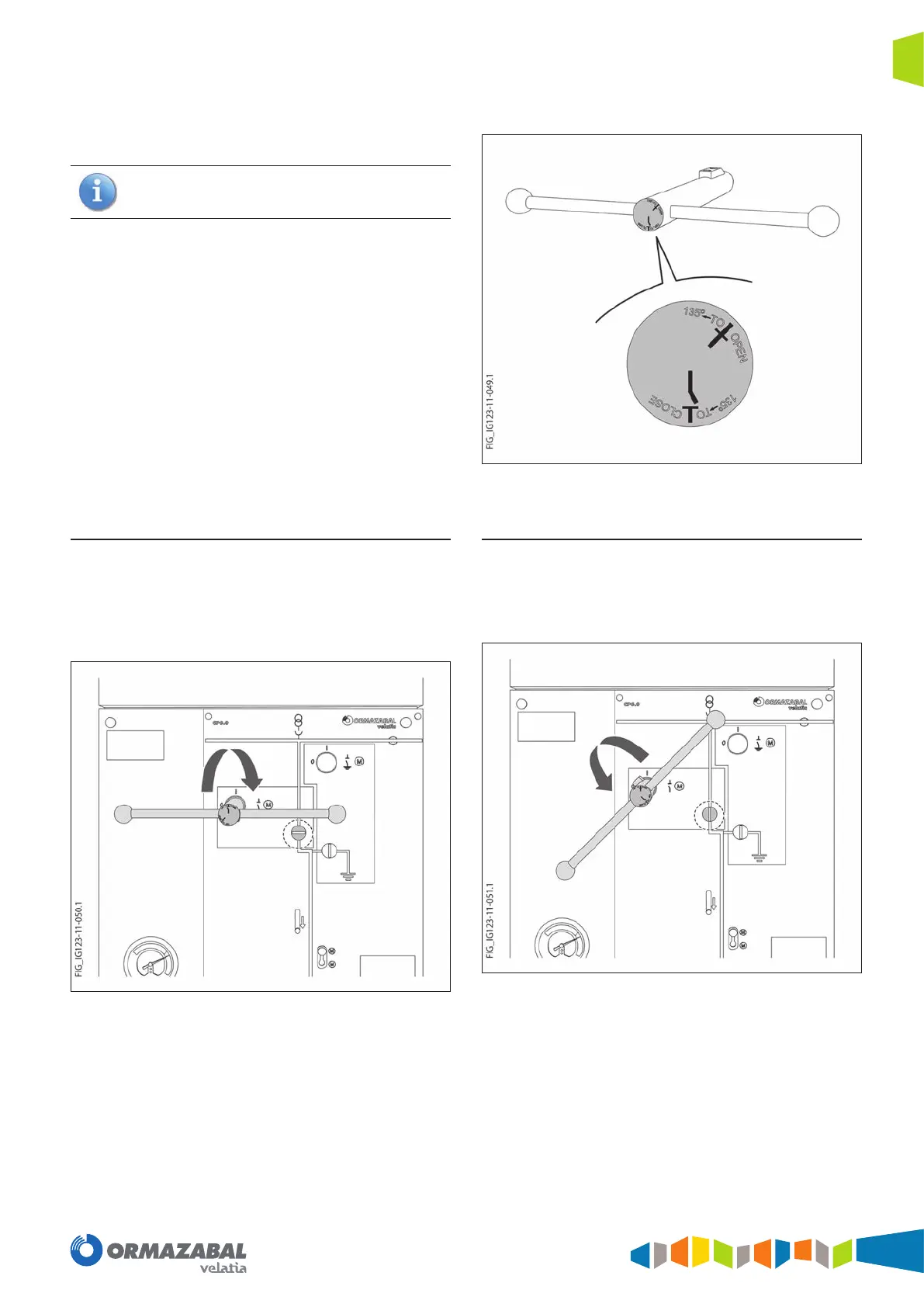

Figure 7.2. Details of the feeder disconnector's manual driving lever
Connection
Move the access interlock down to the driving
shafts and insert the lever with the disconnector
open symbol aligned with the “I” in the disconnector
operation area (grey). Then turn 135º CLOCKWISE.
Figure 7.3. Feeder disconnector closing sequence
Disconnection
Move the access interlock down to the driving shafts and
insert the lever with the disconnector closed symbol aligned
with the “I” in the disconnector operation area (grey). Then
turn 135º ANTI-CLOCKWISE.
Figure 7.4. Feeder disconnector opening sequence
