Ormazabal cpg.0 User Manual

IG-123-EN version 11; 23/07/2021
47
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Operations sequence
For standard cubicles:
• cpg.0-v up to 24 kV/1600 A/25 kA
• cpg.0-v 40.5 kV up to 1250 A/31.5 kA
• cgp.0-v up to 36 kV/up to 1600 A/31.5 kA
• cpg.0-v up to 36 kV/up to 2500 A/31.5 kA
• cpg.0-vl up to 36 kV/up to 1250 A/31.5 kA
The lever for manual charging of the aforementioned
CIRCUIT-BREAKERS' closing springs is identi ed by its
black knob.

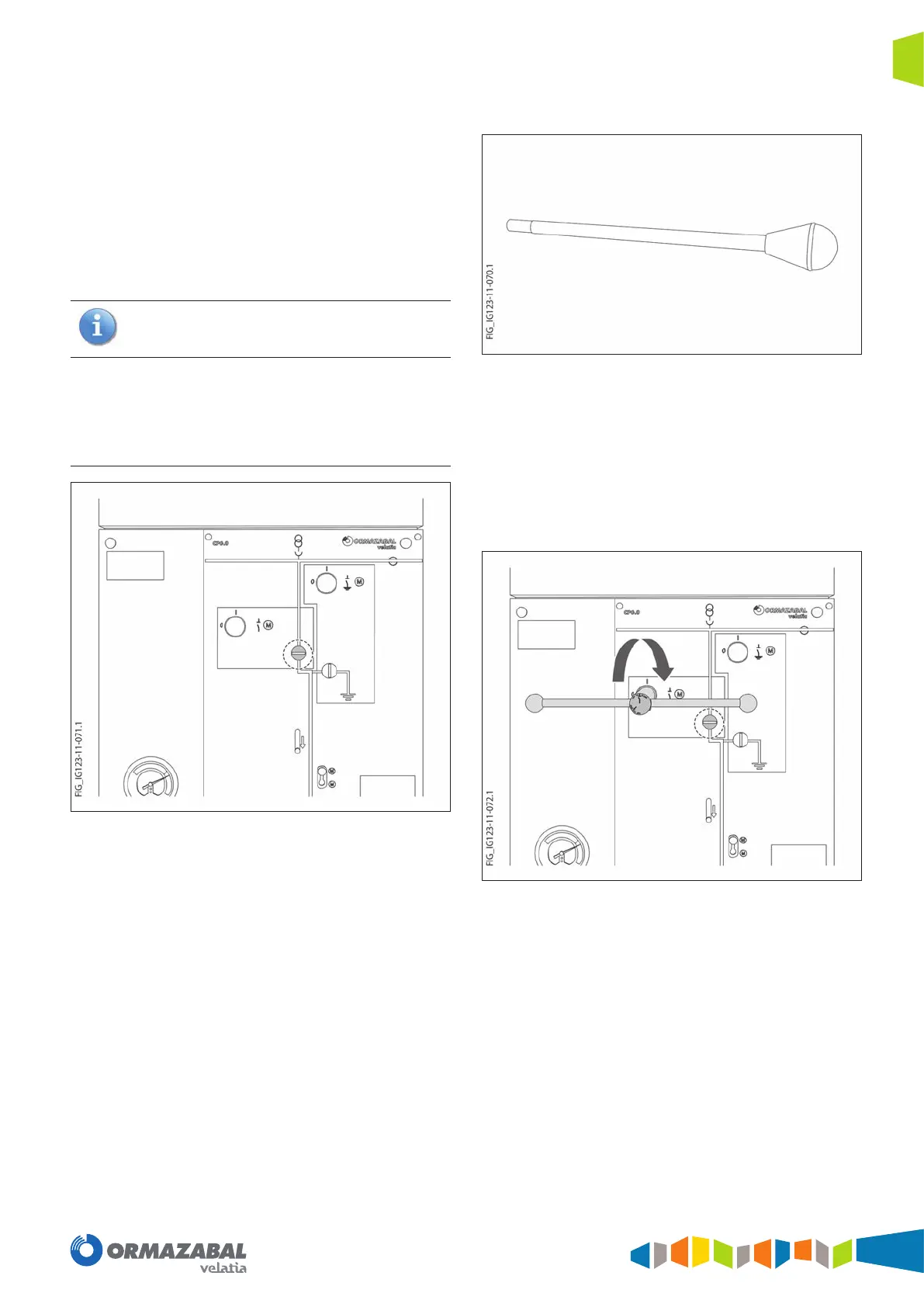

Figure 7.23. Details of the circuit-breaker's manual spring charging lever
a. Manual circuit-breaker operation
Connection
Figure 7.24. Starting position of the cpg.0-v disconnector
Insert the lever in the feeder disconnector's actuating shaft.
Then turn 90º CLOCKWISE. Check that the disconnector
status indicator shows closed.
Figure 7.25. Feeder disconnector closing sequence
