IG-123-EN version 11; 23/07/2021
61
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
Operations sequence
2. Press the "I" pushbutton to connect the circuit-breaker.

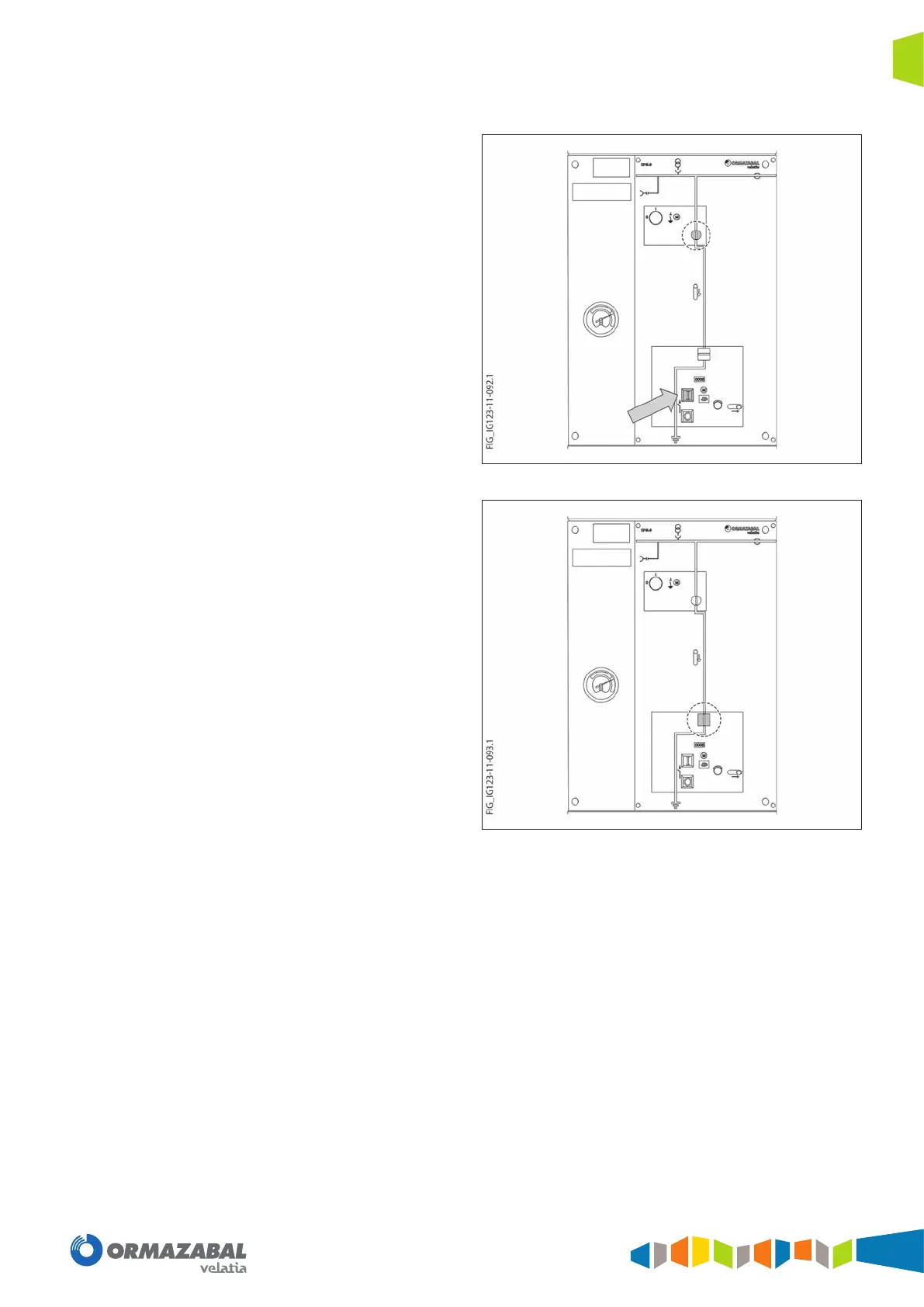

Figure 7.60. “I” pushbutton detail
Figure 7.61. Circuit-breaker closed indicator
