Operations sequence General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
6. Insert the fuse holder carriage in its compartment by
pulling it inwards.
Before inserting the fuse holder carriage in the fuse-
protection cubicle, ensure that both the carriage
as well as the inside of the fuse carrier are properly
cleaned.

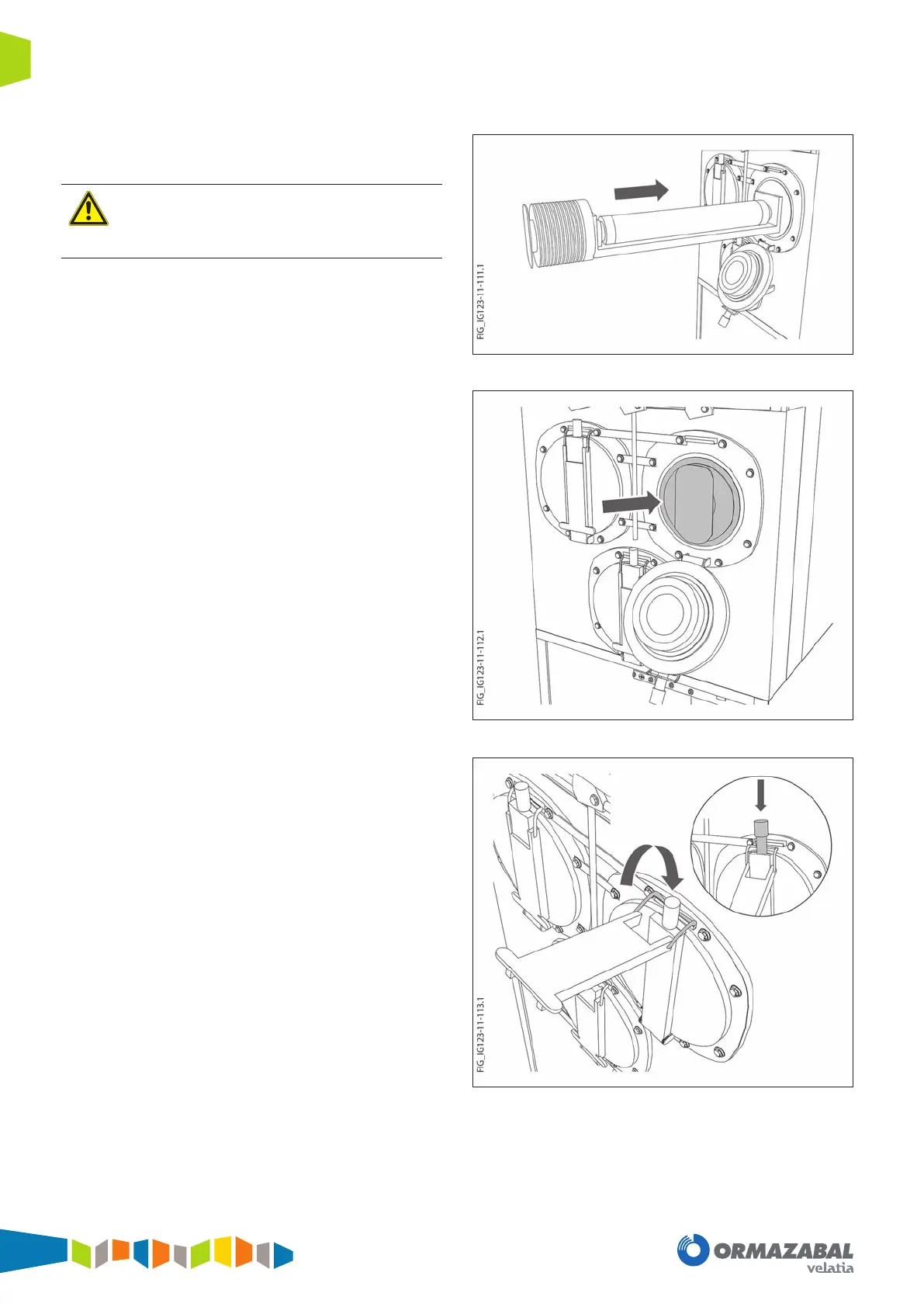

Figure 7.79. Inserting the fuse holder carriage
Figure 7.80. Introducing the fuse holder carriage
7. Reset the fuse striker by pressing downward with the
thumb.
Figure 7.81. Resetting the striker in the fuse holder cover
