IG-123-EN version 11; 23/07/2021
9
General instructions
cpg.0: GIS medium-voltage switchgear,
gas insulated, up to 40.5 kV,
in accordance with IEC Standard
General description
The cpg.0-vl and cpg.0- models have side bushing to
connect up to two medium-voltage cables per phase, up to
800 mm
2
. These side bushings do not allow it to withstand
current transformers.

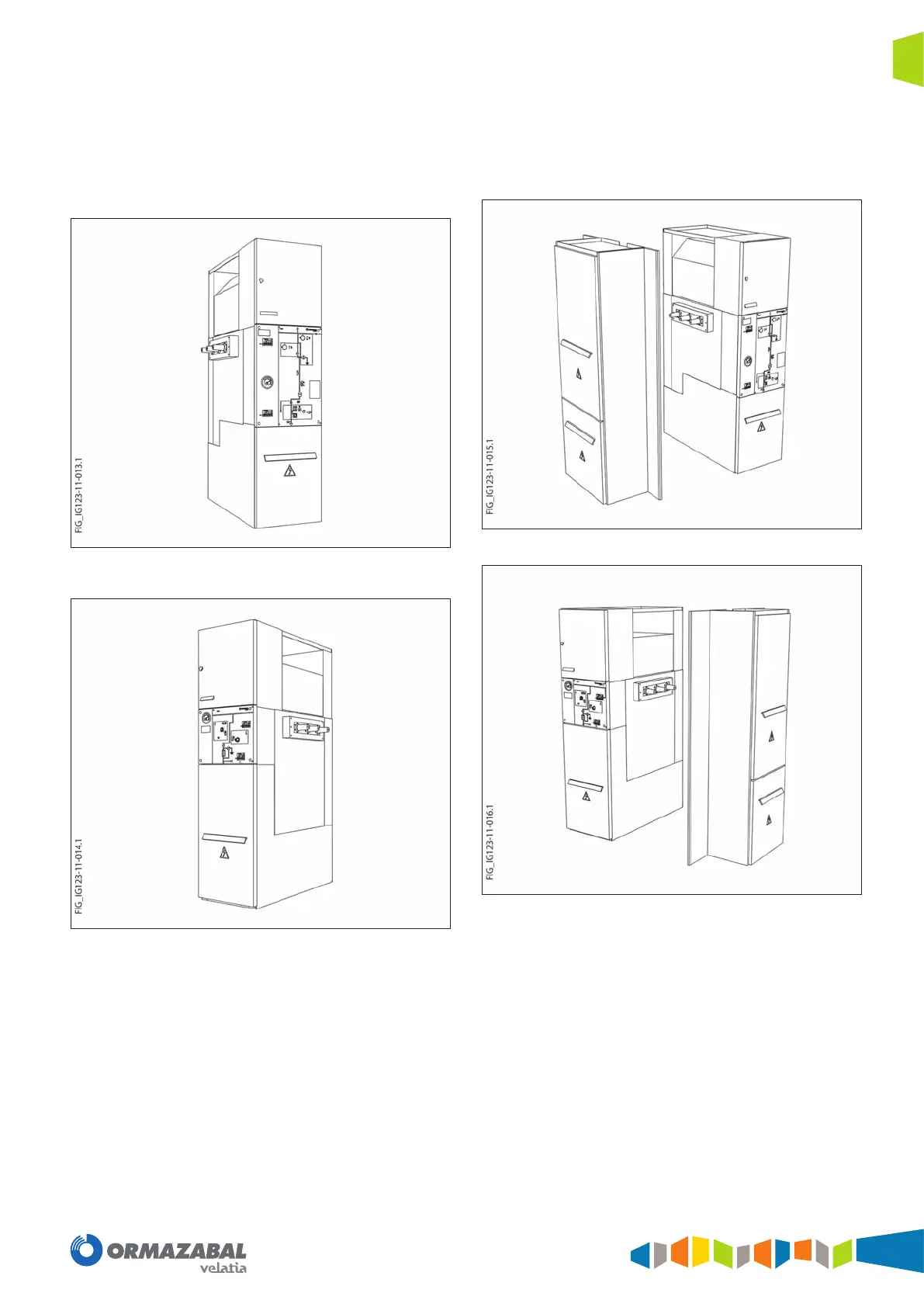

Figure 1.9. Side bushings in cpg.0-vl for connection of medium-voltage
cables
Figure 1.10. Side bushings in cpg.0- for connection of medium-voltage
cables
The cpg.0-rc model (side cable riser) protects the side
cable connection in cpg.0-vl (cpg.0-rci, left cable riser) and
cpg.0- (cpg.0-rcd, right cable riser) models.
Figure 1.11. Left-side cable riser cubicle (cpg.0-rci) for cpg.0-vl cubicle
Figure 1.12. Right-side cable riser cubicle (cpg.0-rcd) for cpg.0- cubicle
