orolia.com EdgeSync Manual rev 1 | 15
Home Webpage

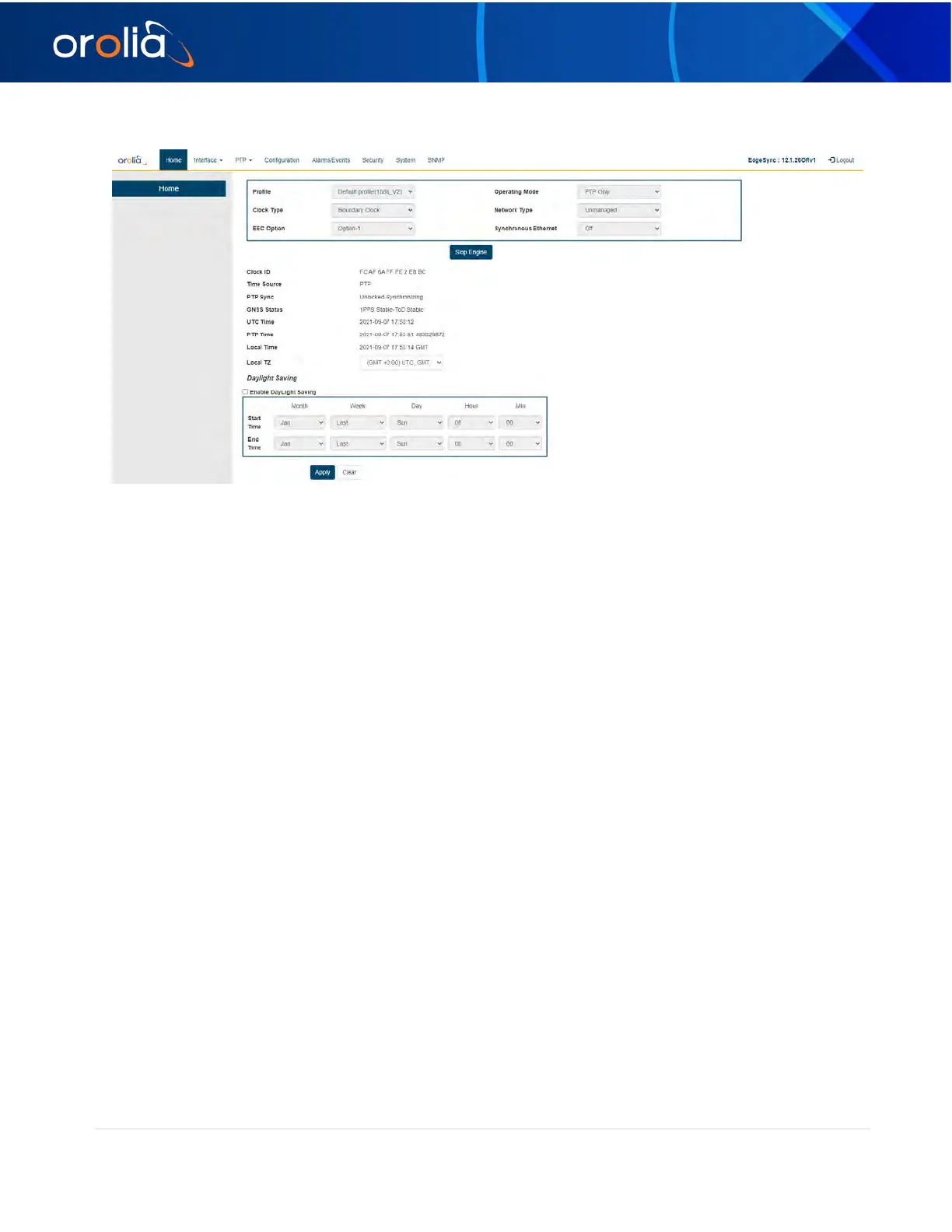

Figure 7 Home Webpage
Prior to starting the Timing Engine, some basic configurations are needed to define the clock, the
mode of operation and user deployment scenario. These basic configurations are provided inside the
box at the top of the Home page.
(PTP) Profile dropdown selections
• Default profile (1588_V2)
• Telecom profile
o G8275.1 (frequency + phase, L2 multicast, requires full on-path timing network
support)
o G8275.2 (frequency + phase, L3 unicast, for partial timing network)
o G8265.1 (frequency only from packet network)
• Power profile
o Power_V1 (IEEE C37.238-2011)
o Power_V2 (IEEE C37.238-2017)
o Power Utility (IEC61850-9-3:2016)
• SMPTE profile
o ST 2059-2:2015 - SMPTE Profile for Use of IEEE-1588 Precision Time Protocol in
Professional Broadcast Applications.
Operating Mode dropdown selections
• PTP Only
• GNSS Only
• GNSS Primary, PTP Secondary
• PTP Primary, GNSS Secondary
• PTP only, GPS debug (experimental, for Orolia internal use ONLY!)
EdgeSync Operating Modes are described in detail and can be managed as described in the
EdgeSync Engine Modes Section of this User Guide.
