Clear Button
WO
Click to clear the latest changes
Table 7 PTP Clock Options
There are additional PTP profile-specific parameters and options that will be selectively shown. More
information is provided in the section describing PTP profiles.
PTP :: Port

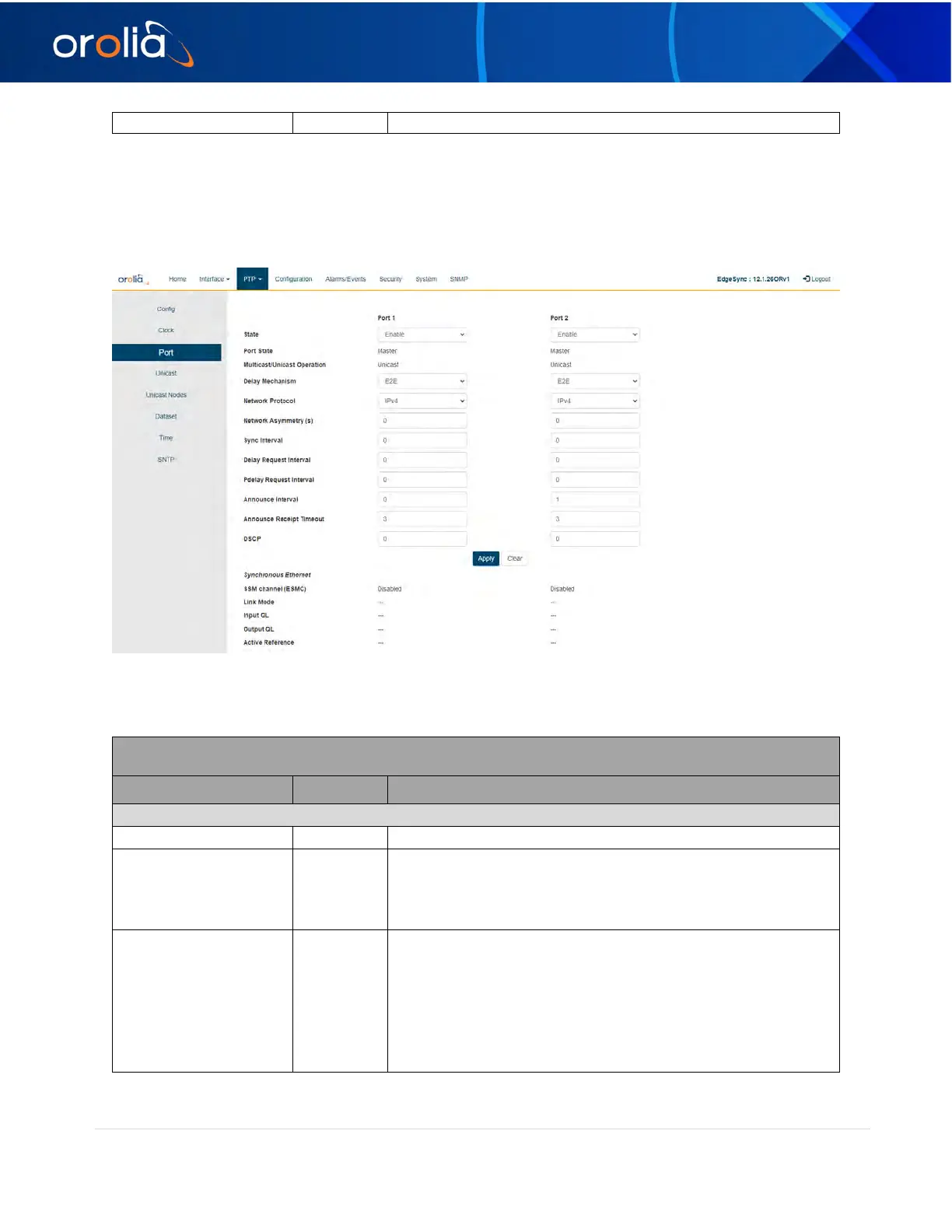

Figure 16 PTP :: Port Webpage
The Port Webpage contains the following displays, selections, entries, and buttons for Ports 1 and 2:
PTP :: Port
Legend: RO = Read Only, RW = Read/Write, WO = Write Only
Labels
Access
Description
Port 1 and Port 2
State
RW
Select PTP port operational state: Disable / Enable
Port State
RO
PTP port state. The Clock Engine maintains the following
states, and the port can be in one of these states. The states
are {Undefined, Initializing, Faulty, Disabled, Listening, Pre
Master, Master, Passive, Uncalibrated, Slave}
L2 Multicast DA
RW
G8275.1 L2 multicast DA for PTP messages selection options:
Forwardable,
Non-forwardable,
Forwardable only, and
Non-forwardable only
The table show more details for each of these options:
