Orolia EdgeSync User Manual

orolia.com EdgeSync Manual rev 1 | 7

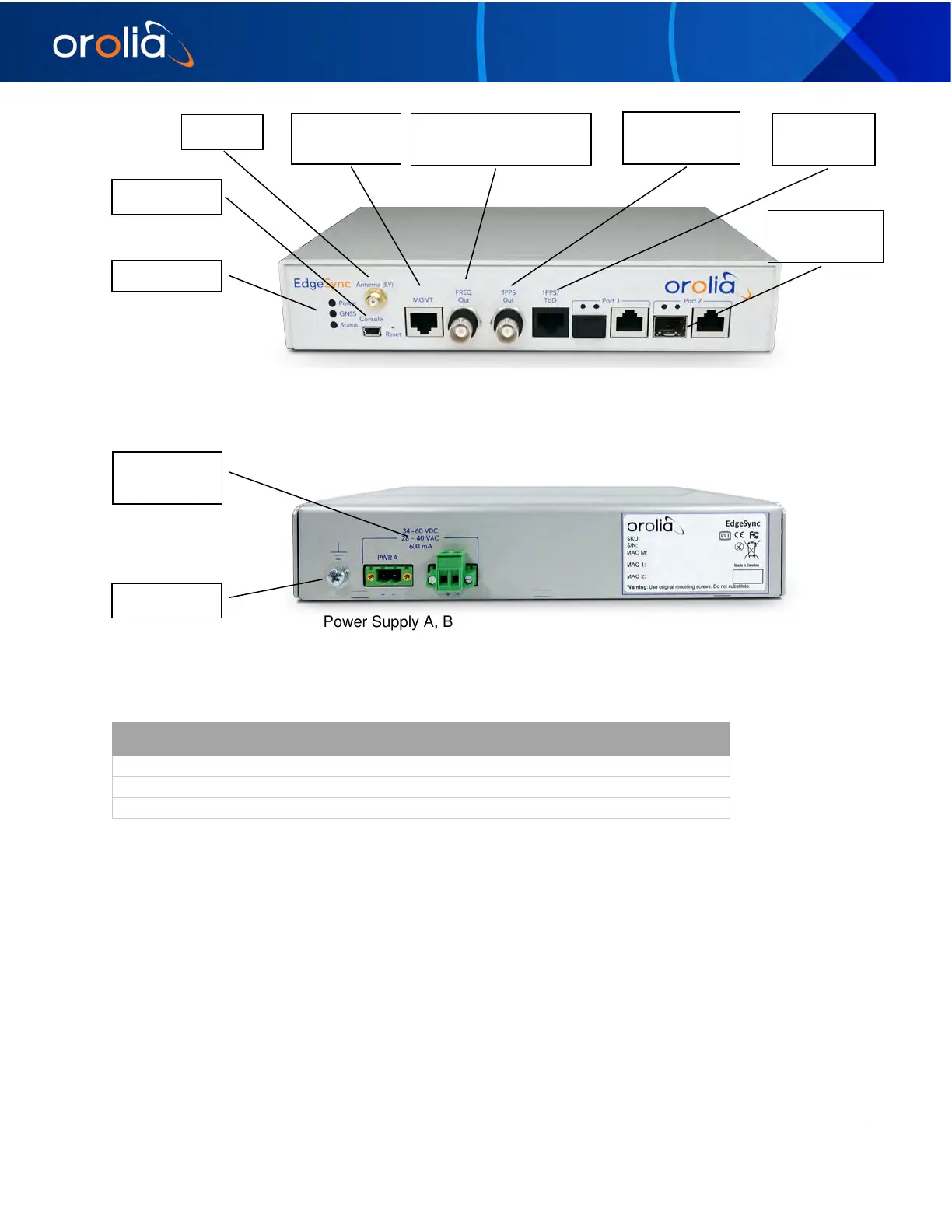

Figure 2 The EdgeSync Front Panel
Figure 3 The EdgeSync Rear Panel
Rear Panel Description
Ground connector
Primary power plug, 34 – 60 VDC / 28 – 40 VAC
Secondary power plug, 34 – 60 VDC / 28 – 40 VAC
Table 1 EdgeSync Rear Panel Interfaces
Typical Applications
EdgeSync is a small form factor IEEE-1588-2008 PTP Edge Grand Master and Boundary Clock that can
be used for smart grid transmission and distribution substations. This Multi-Sync Gateway platform is
designed for small cell clusters, C-RAN, and edge applications. For more information about PTP, see [1].
FRONT
Console
GNSS
Management
Port
10 MHz, or 1544 / 2048
KHz (Out)
1 PPS (Out)
ToD/ 1
PPS(In/Out)
2 x 1 Gb
Ethernet
( /)
Status LEDs
Power Supply A, B
Power Supply
A, B
Ground
BACK

Orolia EdgeSync Specifications

General

Brand	Orolia
Model	EdgeSync
Category	Switch
Language	English
