10.3.3 SOURCE CHANGE SEQUEN CE DETAIL

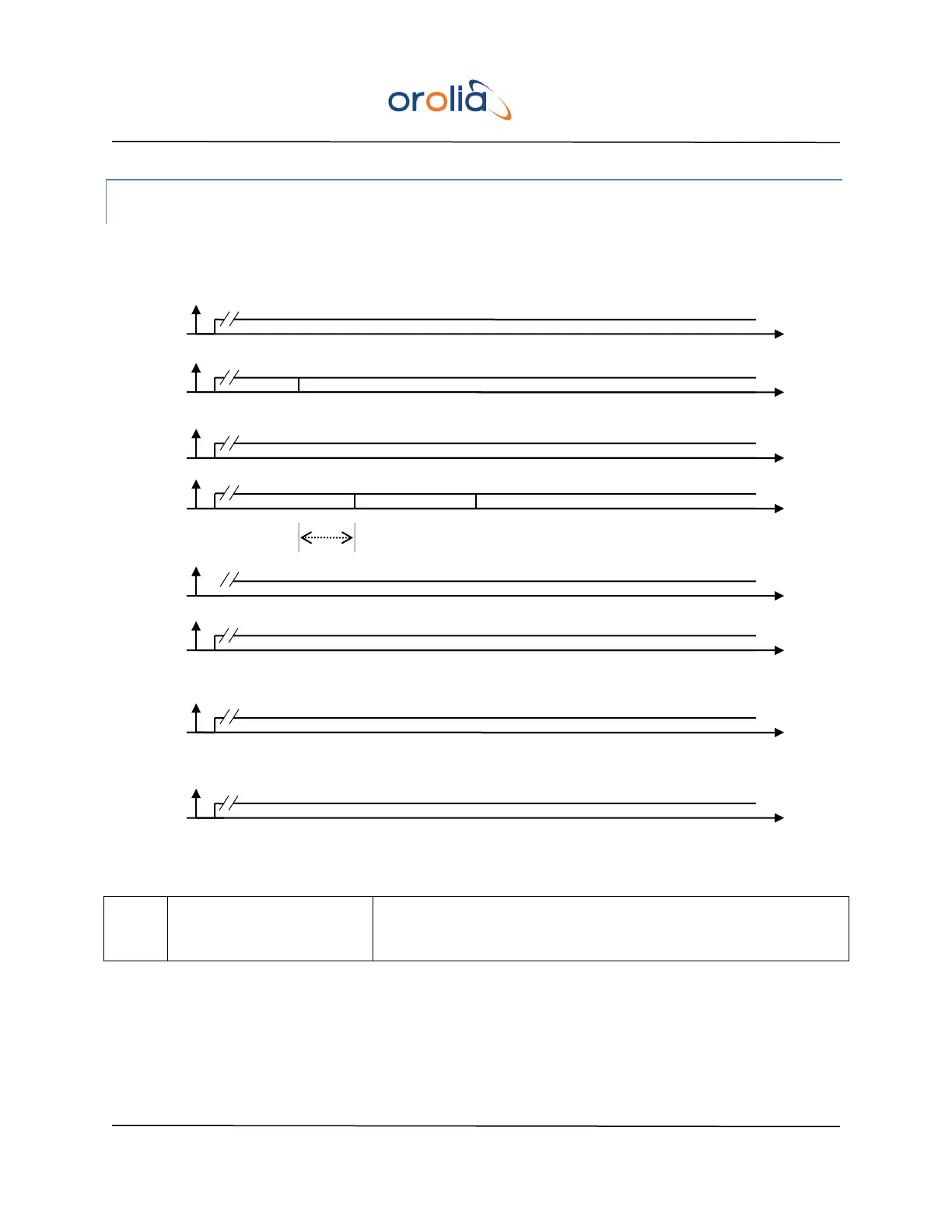

Following diagrams show the status of the EC20S product upon switching of synchronization source (in
brackets, the references of the status definitions):
T
gnssLoss
GNSS Source Loss Time
Latency upon loss of the GNSS synchronization source: 120
seconds
Locked on the GNSS source
On
On
On
OK
External
1PPS/NMEA
Ref
Locked
Tracking Search
Locked on the External 1PPS/NMEA source
T
gnssLoss
Phase or
Frequency
Accuracy [12]
and [13]
Mute mode
is ‘Disabled’
[72] and [73]
Mute mode is
‘Automatic’
[72] and [73]
POWER
GNSS Lock
[14]
SFN Status
[4]
Tracking
Status [7]
Alarm (Searching for satellites)
OK (the GNSS
source is Locked)
