OSD NETWORKS OSD2254EP User Manual

PAGE 16 10115208
OSD2254EP Operator Manual
2.2.9 CONTROLS
The OSD2254EP has an 8-way DIP switch to control a number of functions. Table 5 outlines
the function of each switch.

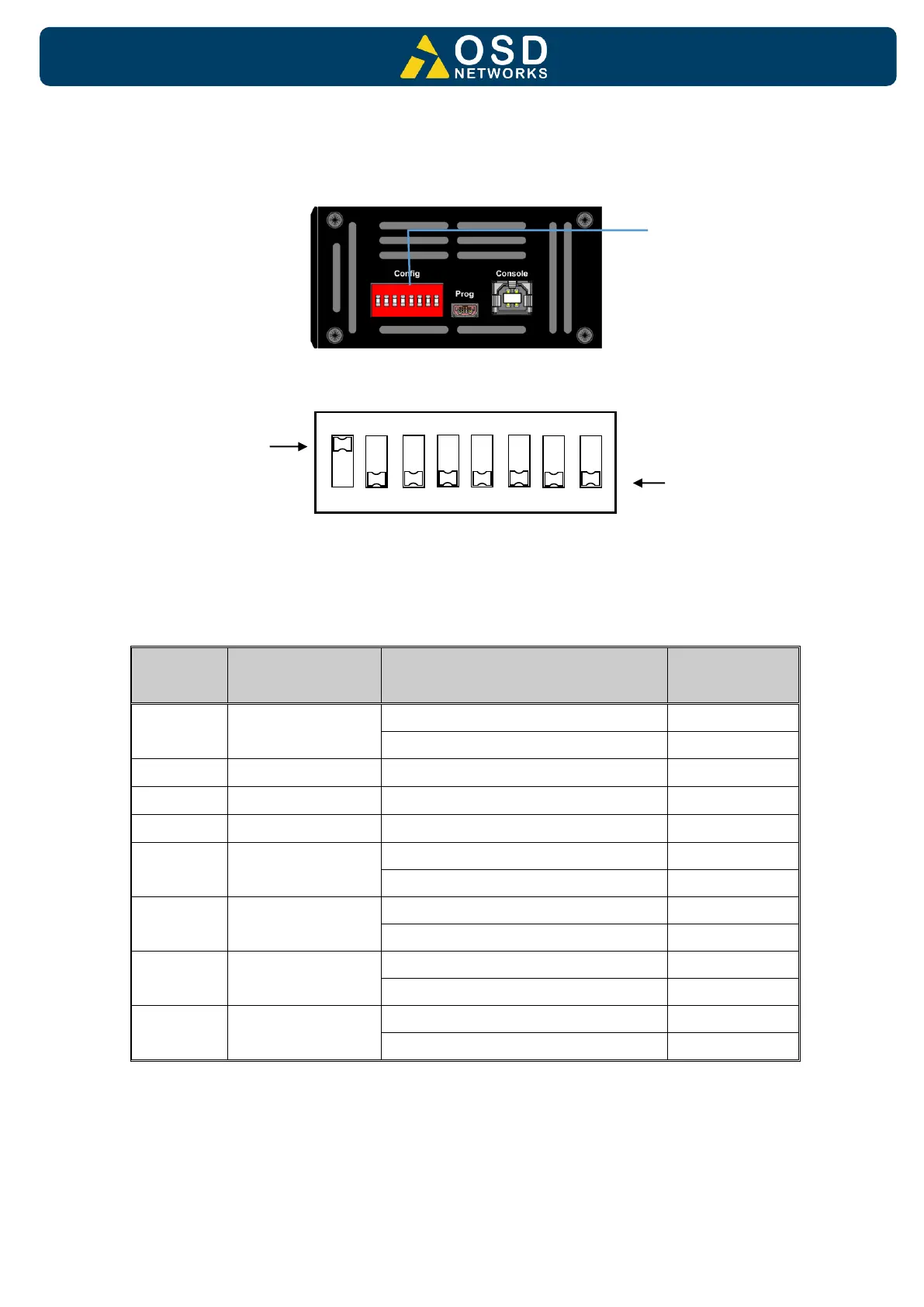

FIGURE 11: CONTROLS
FIGURE 12: 8-WAY DIP SWITCH
TABLE 5: 8-WAY DIP SWITCH SETTINGS
SWITCH
NUMBER
DESCRIPTION
FUNCTION
SWITCH
POSITION
1
GUI Mode
GUI Enabled
ON*
GUI Disabled
OFF
2
PoE Mode [2]
See Table 6 for PoE Mode Function
OFF*
3
PoE Mode [1]
See Table 6 for PoE Mode Function
OFF*
4
PoE Mode [0]
See Table 6 for PoE Mode Function
OFF*
5
Ring/Bus
Non-Ring
ON
Ring
OFF*
6
Port 5 Fiber Speed
100Mbps
ON
1000Mbps
OFF*
7
Port 6 Fiber Speed
100Mbps
ON
1000Mbps
OFF*
8
Reserved
Erase Mode
ON
Normal Operation/User Mode
OFF*
* Default settings.
Ϯ At Off position and power-up, unit will switch to default settings.
Note: The unit requires a power cycle (Off/On) for any switch position change to take effect.
ON
OFF
1
2
3
4
5
6
7
8
8-Way DIP Switch
