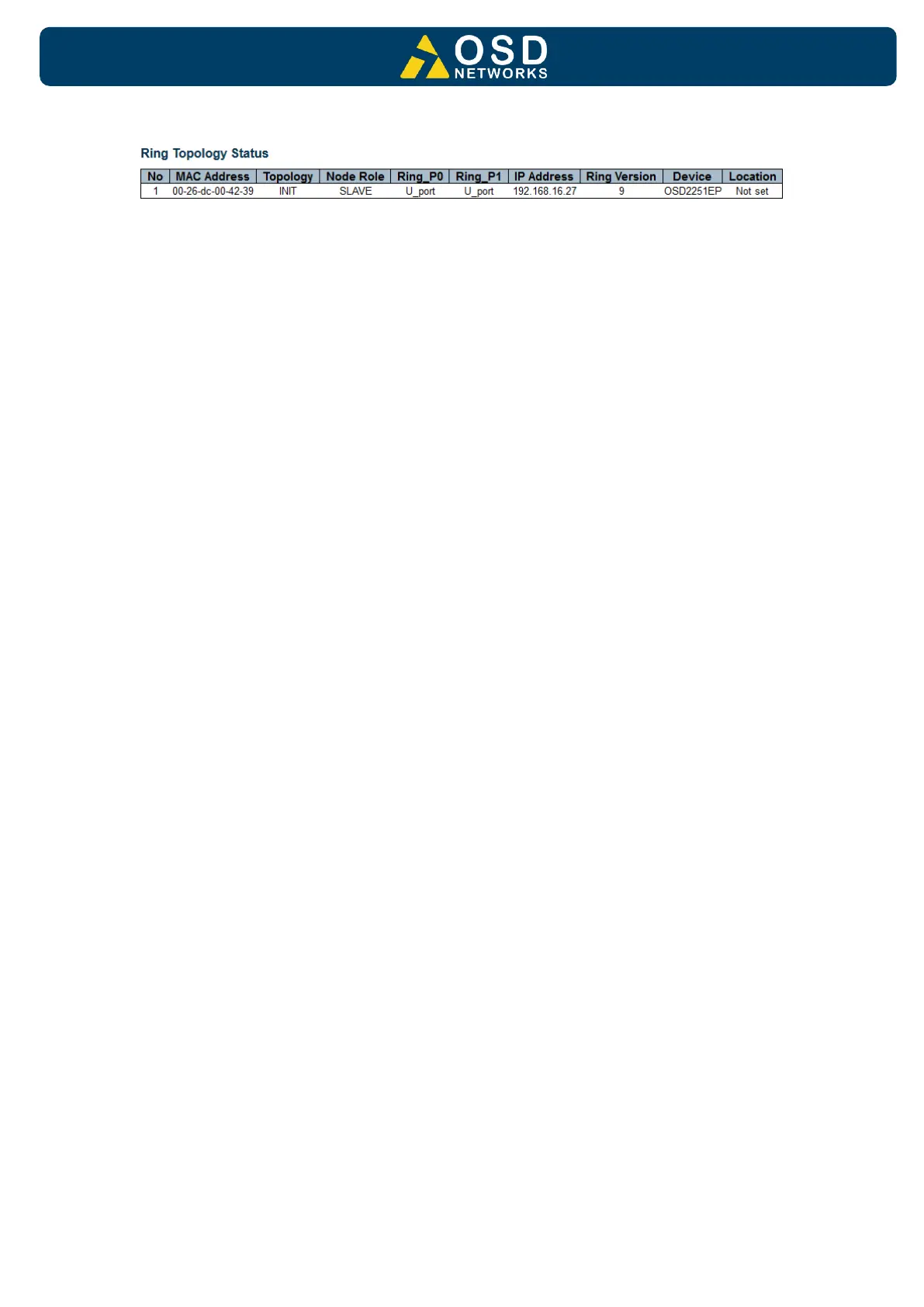

MONITOR → TOPOLOGY
Shows the topology map of available devices in the connected ring/bus.
NO
Unit number within the connected ring/bus
MAC ADDRESS
Displays the MAC address number for each unit connected on the ring/bus
TOPOLOGY
Indicates the topology type;
• INIT: Waiting for ring protocol communication from neighbouring node
• BUS: BUS mode when system discovers bus topology
• RING: Ring mode when system discovers ring topology
• UNKNOWN: Unknown state
NODE ROLE
Indicates whether the unit is either the Master or Slave on the ring/bus. The
Master is determined by the lowest MAC address
RING_P0
Indicates the function of Port 5 and its relation to the ring/bus
• M_Port: Master Port (Port facing the master)
• S_Port: Slave Port (Port back to the master)
• B_Port: Backup Port
• U_Port: Unconnected Port
RING_P1
Indicates the function of Port 6 and its relation to the ring/bus
• M_Port: Master Port (Port facing the master)
• S_Port: Slave Port (Port back to the master)
• B_Port: Backup Port
• U_Port: Unconnected Port
IP ADDRESS
Displays the IP address for each unit connected on the ring/bus
RING VERSION
Indicates the ring module software version
DEVICE
Indicates the OSD product within the ring
LOCATION
The location of the device can be set and displayed in this window
