Schaltplan CPTX 330 GB
26
CPTX 270/CPTX 330

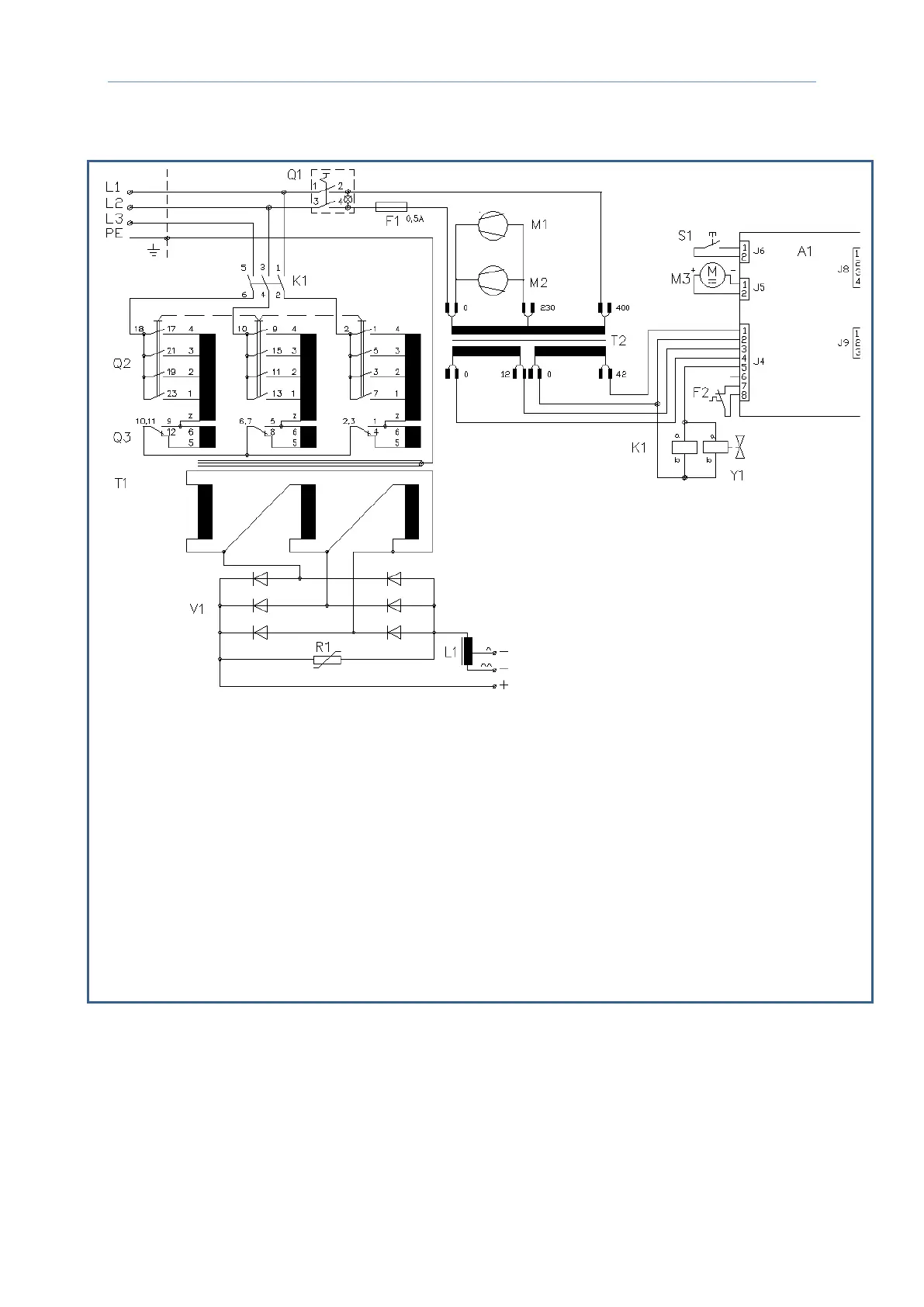

13.1 Schaltplan CPTX 330
A1
Steuerplatine
F1
Sicherung (Träge)
F2
Thermoshalter
K1
Schütz
L1
Drossel
M1,2
Ventilator
M3
Elektromotor
Q1
Schalter mit Lampe
Q2
Stufenschalter 1-10
S1
Taster SLK
R1
Varistor
T1
Transformator
T2
Trenntransformator
Y1
Gasmagnetventil
V1
Gleichrichter
