Connection diagram CPTX 330 GB
51
CPTX 270/CPTX 330

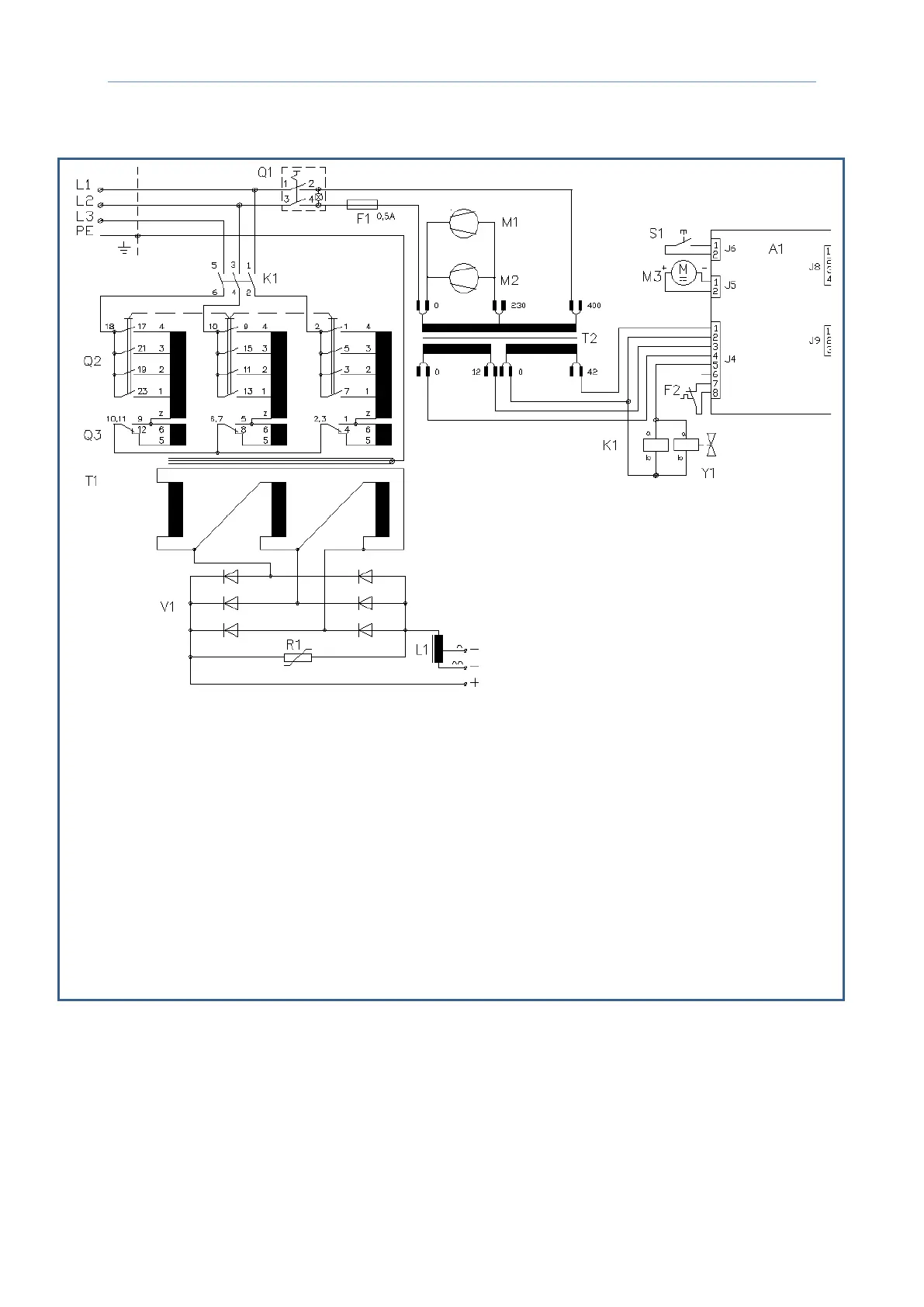

13.1 Connection diagram CPTX 330
A1
Control board
F1
Fuse
F2
Thermo protection
K1
Switcher
L1
Choke
M1,2
Ventilator
M3
Electric motor
Q1
Switch with lamp
Q2
Step switch 1-10
S1
Feeler SLK
R1
Varistor
T1
Transformer
T2
Control transformer
Y1
Gas valve
V1
Rectifier
