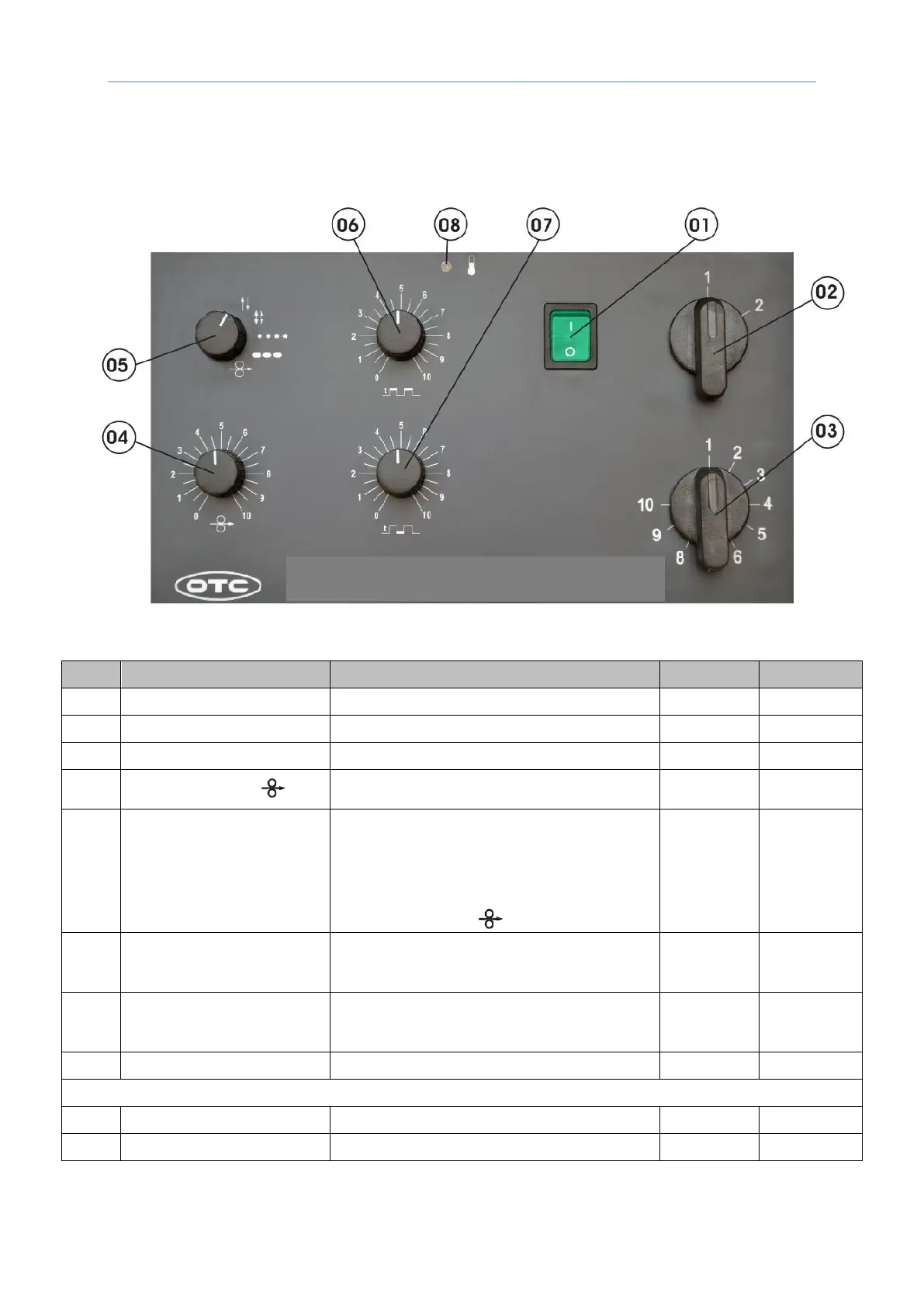

6. Front panel and description of the functions
(CPTX 270/CPTX 330)
Pos.
Bezeichnung
Funktion
CPTX 270
CPTX 330
01
On/OFF Switch
Turns the device on and off
•
•
02
Step switch
Rough adjustment of the welding current
•
03
Step switch
Vernier adjustment of the welding current
•
•
04
Potentiometer
Set the wire feed speed between 0 to 20
m/min.
•
•
05
Switch, to choose the
welding mode
Choose the welding mode:
2-stroke-mode
4-stroke-mode
Spot-welding
Interval-welding
Inching of the wire
•
•
06
Potentiometer, to set up
the spot-welding
Spot-welding:
Adjustable spot-welding time between
0.2 – 2.5 seconds
•
•
07
Potentiometer, to set up
the interval-welding
Interval-welding:
Adjustable breaks between 0.2 – 2.5
seconds
•
•
08
LED - Yellow
Display of the thermo protection
•
•
Other functions
Softstart
•
•
Anti-Stick-Function
•
•
