Otto Bock Avantgarde T User Manual

83

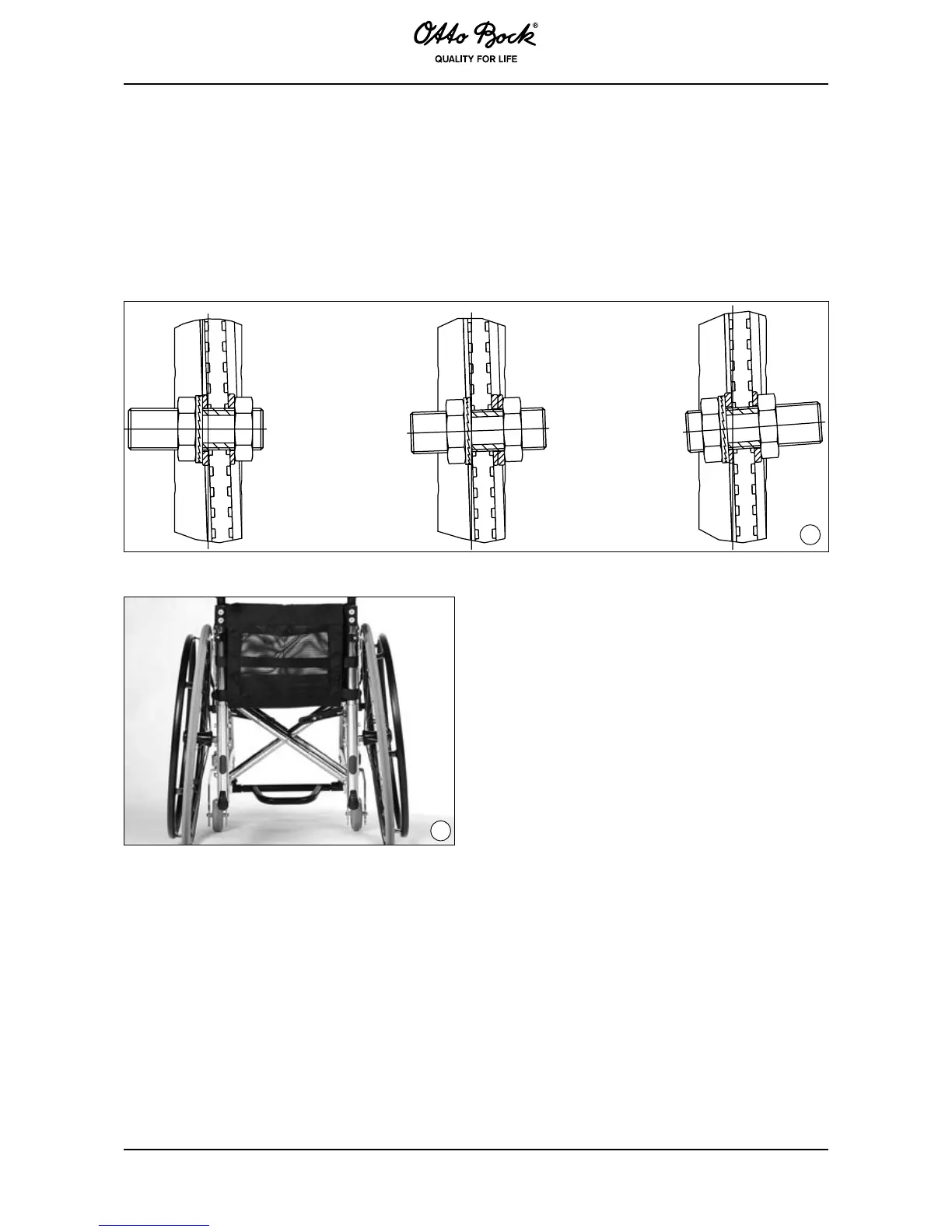

6.4 Setting the Wheel Camber (Fig. 62/63)
(does not apply to XXL 2 and Ti Ultra, since here only 0° is possible)
The Avantgarde modular system provides a rear wheel adapter which can be used to set the
rear wheels at different camber angles (0°, 2°, and 4°). The greater the negative camber angle
of the rear wheels, the more manoeuvrable the wheelchair becomes (Fig. 63).
The rear wheel adapter itself is set to a wheel camber of 2° due to its form. Deviations from this
setting (0° or 4°) are achieved by rotating the special 2° tapered washers.
0°
2°
4°
62
A
B
C
63
